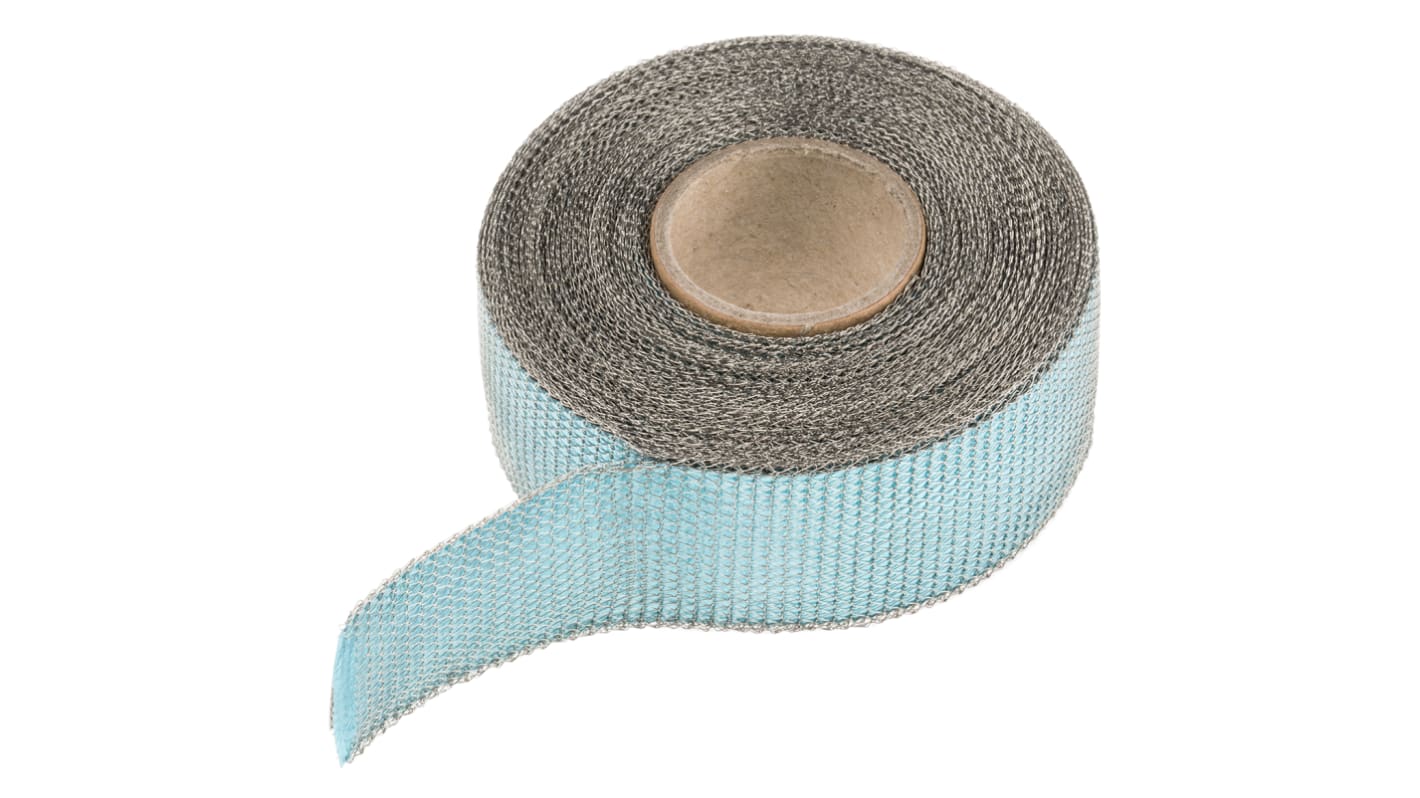

RS PRO Conductive Tin Clad Copper Tape, 25mm x 5m
- RS Stock No.:
- 170-6923
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£134.10
(exc. VAT)
£160.92
(inc. VAT)
- RS Stock No.:
- 170-6923
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Total Thickness | 1mm | |
| Foil Thickness | 0.6mm | |
| Width | 25mm | |
| Length | 5m | |
| Conductivity | Conductive | |
| Material Plating | Tin | |
| Maximum Temperature Resistance | +120°C | |
| Minimum Temperature Resistance | -30°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Total Thickness 1mm | ||
Foil Thickness 0.6mm | ||
Width 25mm | ||
Length 5m | ||
Conductivity Conductive | ||
Material Plating Tin | ||
Maximum Temperature Resistance +120°C | ||
Minimum Temperature Resistance -30°C | ||
- COO (Country of Origin):
- DE
Adhesive braided shields
Cu/Sn mesh layer on aluminium sheet for RFI shielding. Very flexible with adhesive backing offering versatility for a wide range of applications.
The self-adhesive braiding easily maintains a 50% overlap and provides high performance when subject to vibration and bending. The 50% overlap around cables or cable harnesses, tubing or pipes, etc. provides 4 very flexible layers. As with all EMI/RFI shielding, both ends of the equipment must be earthed.
The self-adhesive braiding easily maintains a 50% overlap and provides high performance when subject to vibration and bending. The 50% overlap around cables or cable harnesses, tubing or pipes, etc. provides 4 very flexible layers. As with all EMI/RFI shielding, both ends of the equipment must be earthed.
