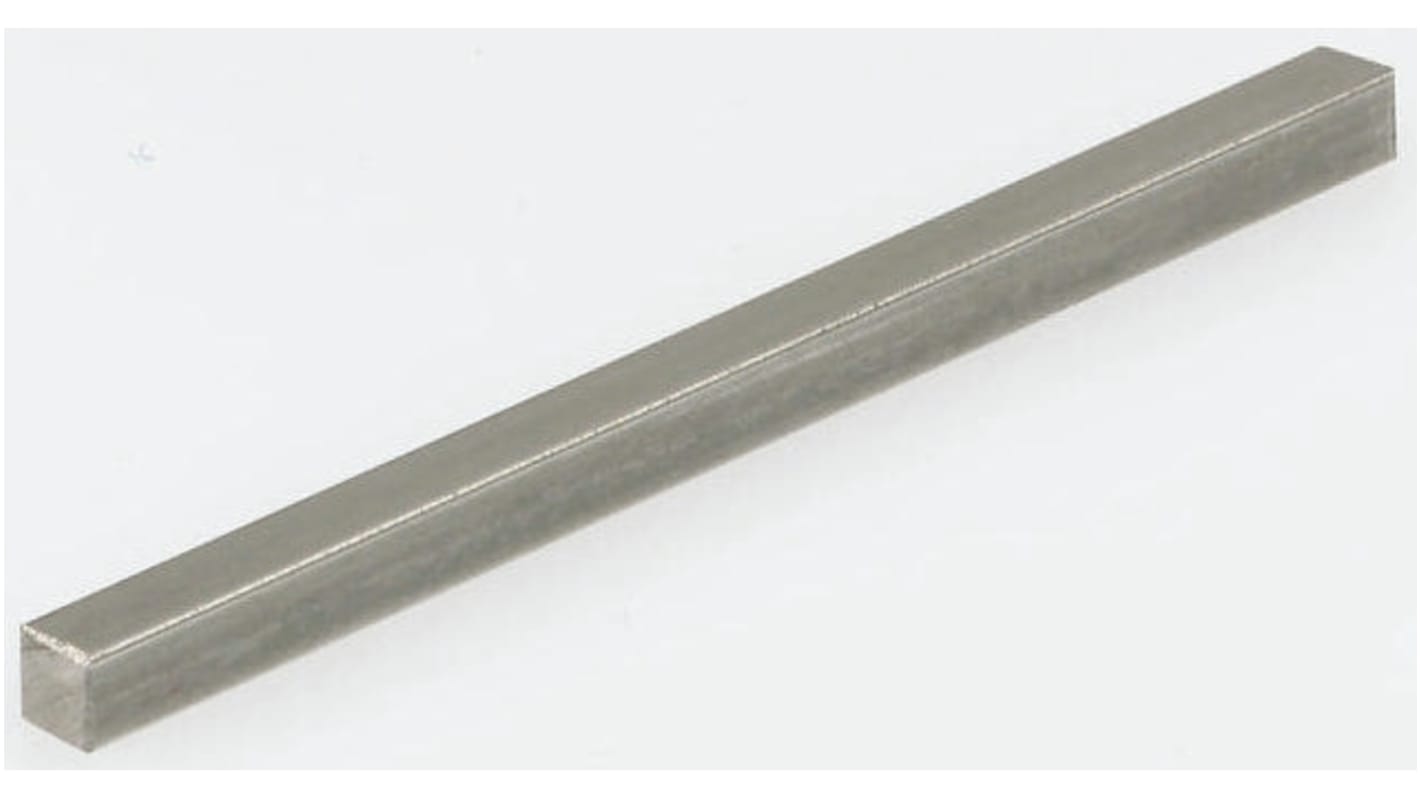

RS PRO Stainless Steel Flat Bar, 18mm W, 11mm H, 304mm L
- RS Stock No.:
- 770-3614
- Brand:
- RS PRO
Image representative of range
Bulk discount available
Subtotal (1 unit)*
£143.58
(exc. VAT)
£172.30
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 3 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 2 | £143.58 |
3 - 9 | £133.53 |
10 - 29 | £126.35 |
30 + | £114.87 |
*price indicative
- RS Stock No.:
- 770-3614
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Form | Flat Bar | |
Material | Stainless Steel | |
Length | 304mm | |
Width | 18mm | |
Material Grade | 316Ti | |
Height | 11mm | |
Tensile Strength | ≥485MPa | |
Hardness | 217 HB | |
Density | 8g/cm³ | |
Suitability | Chemical & Marine Equipment, Food, Photographic | |
Thermal Conductivity | 21.5W/mK | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Form Flat Bar | ||
Material Stainless Steel | ||
Length 304mm | ||
Width 18mm | ||
Material Grade 316Ti | ||
Height 11mm | ||
Tensile Strength ≥485MPa | ||
Hardness 217 HB | ||
Density 8g/cm³ | ||
Suitability Chemical & Marine Equipment, Food, Photographic | ||
Thermal Conductivity 21.5W/mK | ||
RS PRO Flat Key Steel Bar, 18 x 11 x 304mm (316Ti /1.4571)
A high-quality Austenitic Stainless-Steel bar graded to 316Ti (1.4751). This Key Steel (also known as Keysteel or Key bar) is a single phase bright drawn Carbon Steel capable of hardening through heat treatment and has very low magnetic properties.
Key Steel is used in a wide range of applications and is specifically suited to the creation of tools and machine keys including Gibhead, taper and parallel keys.
Features and Benefits
- Rectangular bar
- Unalloyed Carbon Steel
- Grade 316Ti (1.4751)
- Dimensions of 18 x11 x 304mm
- Hardness of 183HB
- Tensile strength of 510 N/mm²
Why RS PRO?
Looking to reduce costs but keep the same quality?
With a choice of over 65,000 products – all of which are rigorously tested against demanding industry standards before they are given the RS PRO seal of approval.
Trusted by engineers the world over, we want you to be confident that youre receiving the exceptional quality, reliability and the best value for money.
Bar, Angle & Key Steel - Grade 316 (A4)
Austenitic stainless steels which are highly resistant to corrosion due to their Molybdenum content. They are non-magnetic and suitable for applications such as photographic, food, chemical and marine equipment.
