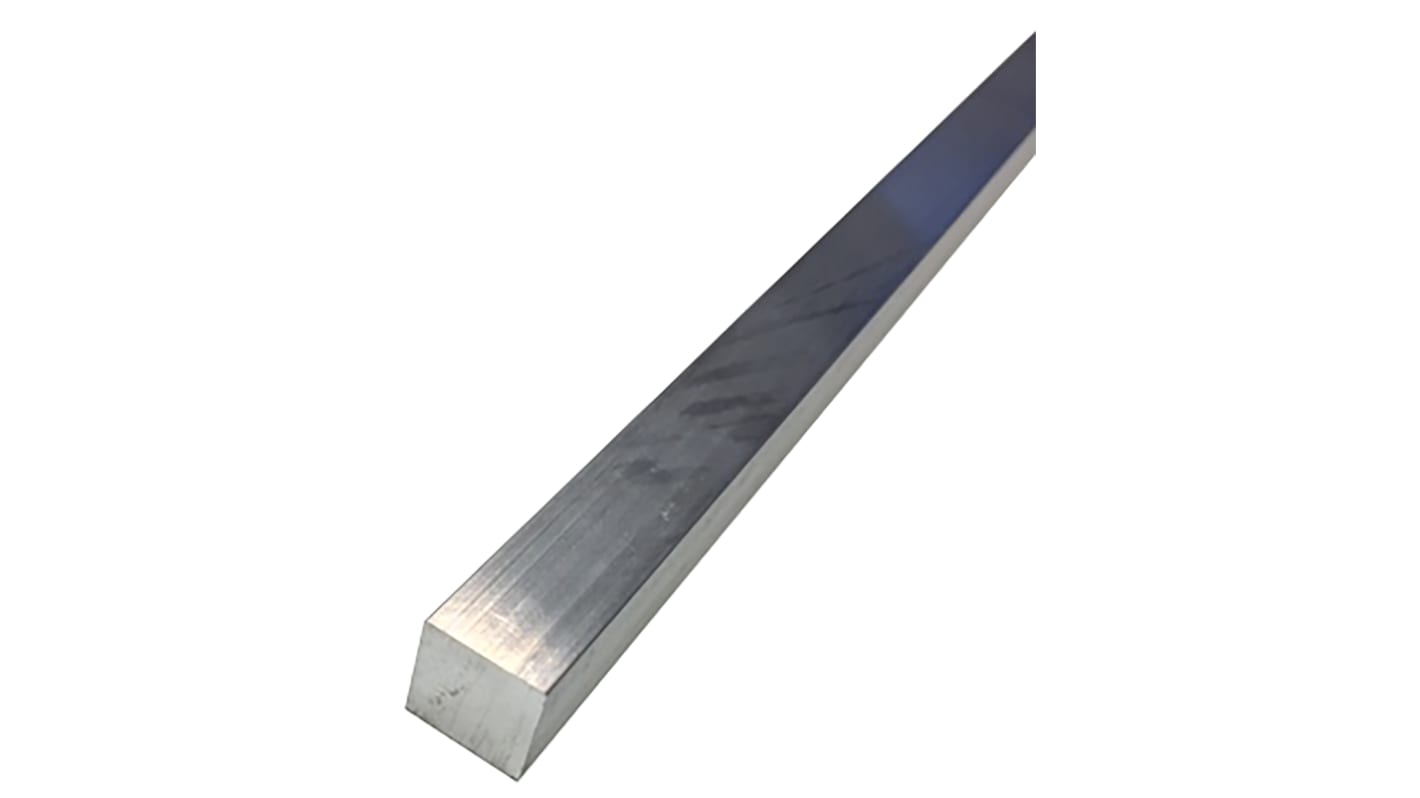

RS PRO Aluminium Square Bar 30mm Diameter, 30mm W, 30mm H, 1m L
- RS Stock No.:
- 124-3631
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£94.01
(exc. VAT)
£112.81
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 30 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 2 | £94.01 |
3 - 9 | £87.42 |
10 - 29 | £82.72 |
30 + | £75.20 |
*price indicative
- RS Stock No.:
- 124-3631
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Form | Square Bar | |
Material | Aluminium | |
Length | 1m | |
Rod Diameter | 30mm | |
Width | 30mm | |
Material Grade | 6082-T6 | |
Height | 30mm | |
Tensile Strength | 310 MPa | |
Hardness | 95 HB | |
Thermal Conductivity | 180W/mK | |
Suitability | Bridges, Cranes, Highly Stressed Applications, Transport Applications, Trusses | |
Density | 2.71g/cm³ | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Form Square Bar | ||
Material Aluminium | ||
Length 1m | ||
Rod Diameter 30mm | ||
Width 30mm | ||
Material Grade 6082-T6 | ||
Height 30mm | ||
Tensile Strength 310 MPa | ||
Hardness 95 HB | ||
Thermal Conductivity 180W/mK | ||
Suitability Bridges, Cranes, Highly Stressed Applications, Transport Applications, Trusses | ||
Density 2.71g/cm³ | ||
RS PRO 6082-T6 Aluminum Square Bar, 30 mm x 30 mm x 1 m
RS PRO aluminium square bars are ideal for use in highly stressed applications like in the construction of trusses, bridges and cranes. Graded 6082-T6, the metal bar is perfect for machining, welding and drilling works.
This metre-long metal bar is formed as a solid square and has sides of 30 mm. It has a tensile strength of 310 MPa that considerably enhances its durability. The superior quality aluminium alloy construction means it offers excellent resistance to corrosion as well. As part of the RS PRO series, the product is stringently tested for quality and consistency.
The metal bar is packaged and handled in controlled facilities and complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards for preventing damage from electrostatic discharge. A thermal conductivity rating of 180 W/mK means the bars make for a great choice in automotive, transport and moulding die settings.
This metre-long metal bar is formed as a solid square and has sides of 30 mm. It has a tensile strength of 310 MPa that considerably enhances its durability. The superior quality aluminium alloy construction means it offers excellent resistance to corrosion as well. As part of the RS PRO series, the product is stringently tested for quality and consistency.
The metal bar is packaged and handled in controlled facilities and complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards for preventing damage from electrostatic discharge. A thermal conductivity rating of 180 W/mK means the bars make for a great choice in automotive, transport and moulding die settings.
Features and Benefits
• RS PRO aluminium square bars
• Solid construction of 6082-T6 material grade
• Length of 1 m
• Height of 30 mm
• Tensile strength of 310 MPA
• Density of 2.7 g/cm³
• Thermal conductivity of 180 W/mK
• Ideal for highly stressed applications
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards for preventing damage from electrostatic discharge
• Solid construction of 6082-T6 material grade
• Length of 1 m
• Height of 30 mm
• Tensile strength of 310 MPA
• Density of 2.7 g/cm³
• Thermal conductivity of 180 W/mK
• Ideal for highly stressed applications
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards for preventing damage from electrostatic discharge
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
