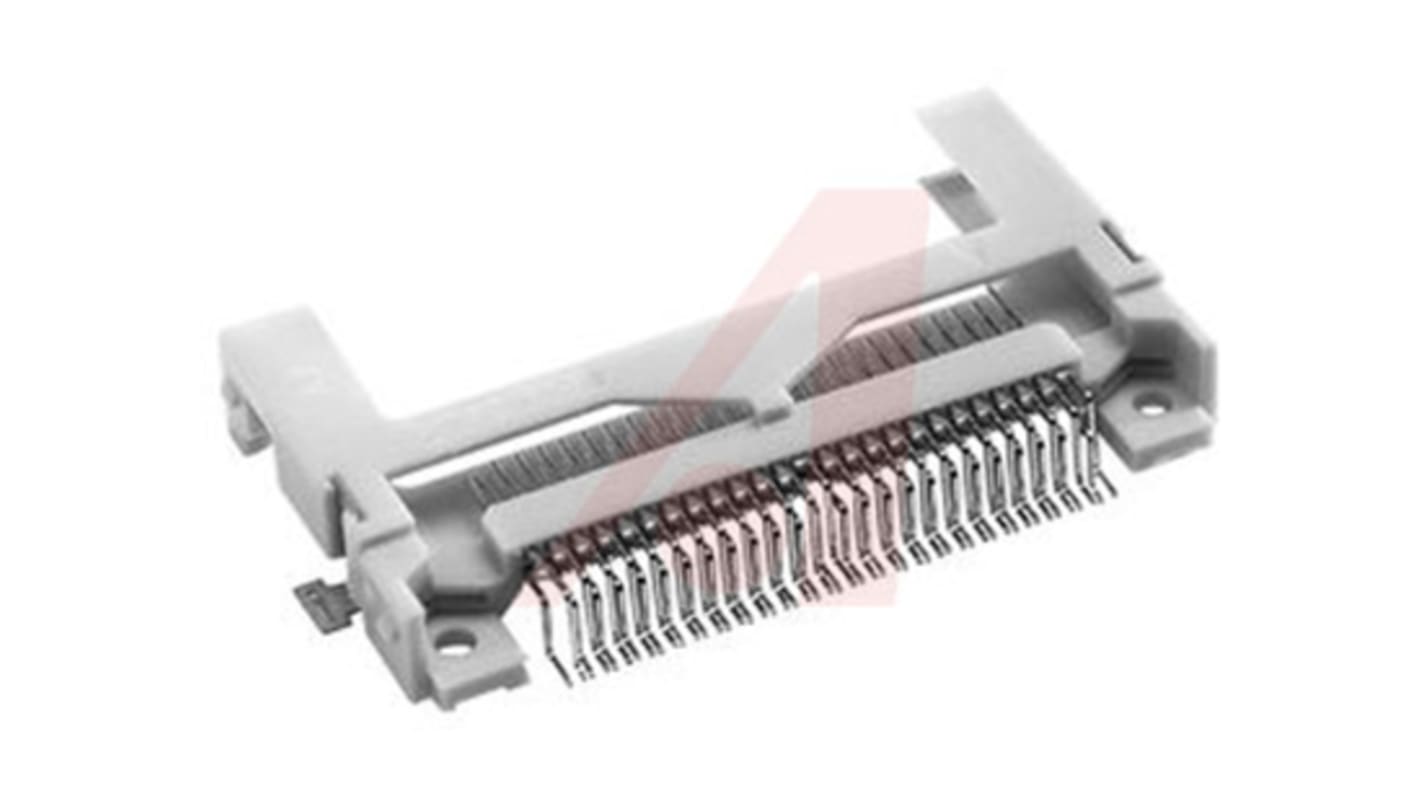

3M 50 Way Right Angle Compact Flash Memory Card Connector With SMT Termination
- RS Stock No.:
- 827-3584
- Mfr. Part No.:
- N7E50-7516PG-20
- Brand:
- 3M
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 827-3584
- Mfr. Part No.:
- N7E50-7516PG-20
- Brand:
- 3M
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Card Type | Compact Flash Card | |
| Gender | Male | |
| Number of Contacts | 50 | |
| Number of Rows | 2 | |
| Pitch | 0.635mm | |
| Body Orientation | Right Angle | |
| Mounting Type | Surface Mount | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| Termination Method | SMT | |
| Housing Material | Liquid Crystal Polymer | |
| Length | 46.6mm | |
| Width | 26.5mm | |
| Depth | 5.0mm | |
| Minimum Operating Temperature | -55°C | |
| Dimensions | 46.6 x 26.5 x 5mm | |
| Maximum Operating Temperature | +85°C | |
| Series | 7E50 | |
Select all | ||
|---|---|---|
Brand 3M | ||
Card Type Compact Flash Card | ||
Gender Male | ||
Number of Contacts 50 | ||
Number of Rows 2 | ||
Pitch 0.635mm | ||
Body Orientation Right Angle | ||
Mounting Type Surface Mount | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
Termination Method SMT | ||
Housing Material Liquid Crystal Polymer | ||
Length 46.6mm | ||
Width 26.5mm | ||
Depth 5.0mm | ||
Minimum Operating Temperature -55°C | ||
Dimensions 46.6 x 26.5 x 5mm | ||
Maximum Operating Temperature +85°C | ||
Series 7E50 | ||
- COO (Country of Origin):
- US
CompactFlash
The complete CompactFlash solution for applications such as Palmpilot PC/Organisers, digital cameras, digital music players, embedded systems and a variety of portable handheld devices.
Memory Card Connectors
