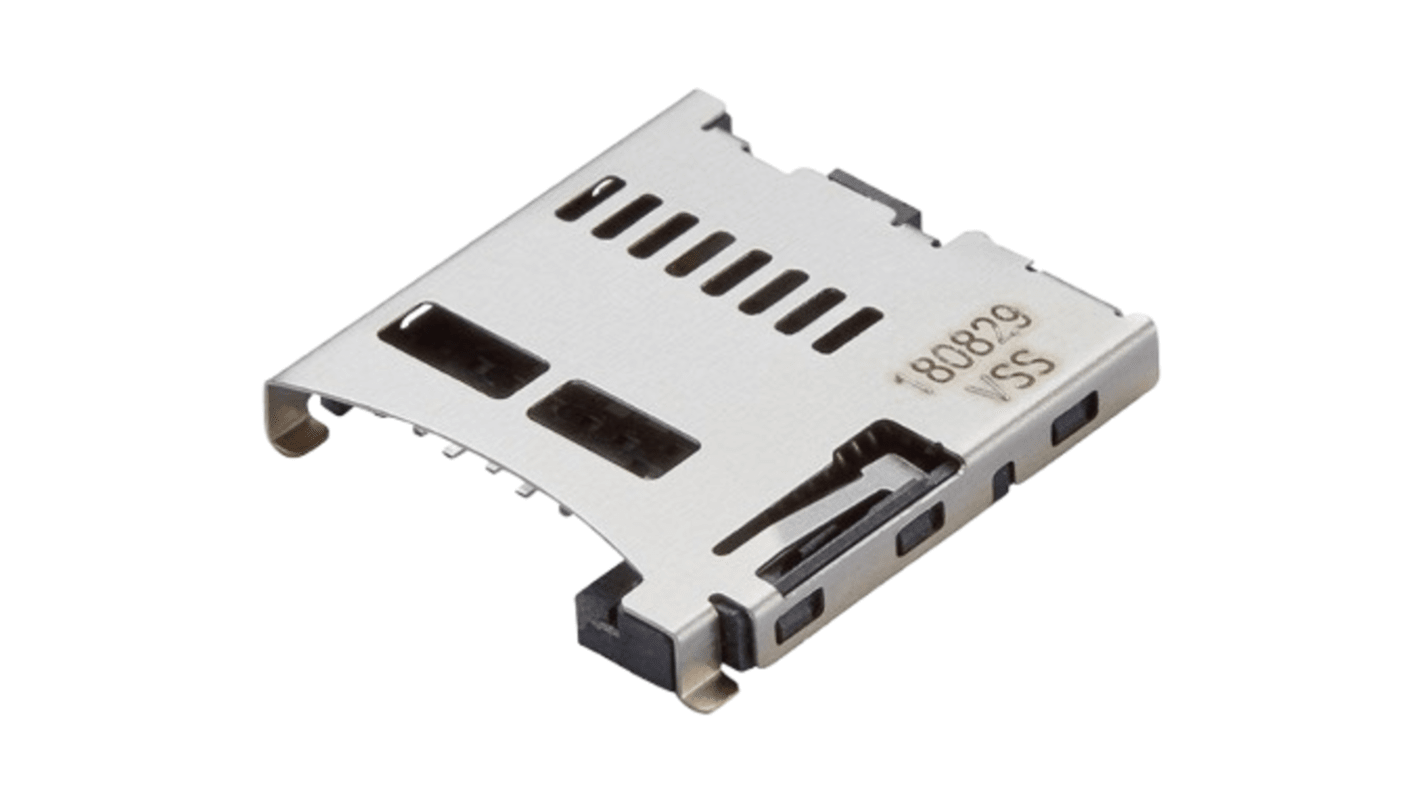

Molex, 47352 8 Way Right Angle Push-Push Micro SD Memory Card Connector With Solder Termination

RS Stock No.:: 720-6016P
Mfr. Part No.:: 47352-1001
Brand:: Molex

Molex, 47352 8 Way Right Angle Push-Push Micro SD Memory Card Connector With Solder Termination

Subtotal 1 unit (supplied on a reel)*. Quantities below 150 on continuous strip

£3.71

(exc. VAT)

£4.45

(inc. VAT)

FREE delivery for orders over £50.00

Limited stock

838 left, ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£3.71

*price indicative

RS Stock No.:: 720-6016P
Mfr. Part No.:: 47352-1001
Brand:: Molex

Molex microSD TransFlash Memory Card Connector - Series 47334 and 47352

Push-push type microSD TransFlash memory card connectors with ESD protection and grounding support. The design of these push-push memory card connectors include gold-plated bevelled contacts and space saving inside solder tails. These microSD TransFlash memory card connectors have a brake feature which slows down the speed of the card ejection.
The 47352 series push-push memory card connector (stock number 720-6016) has a Detect Switch which recognises card insertion.

Molex 47352 Series Memory Card Connector, 1.1mm Pitch, 8 Contacts - 47352-1001

This memory card connector is specifically designed for microSD cards and features a robust right-angle configuration. With a compact design measuring 14 x 1.88 x 15.2mm, it facilitates a push-push card insertion method, ideal for various electronic applications. Built to endure environments ranging from -40°C to +85°C, this connector ensures reliable performance in demanding conditions.

Features & Benefits

• Push-push insertion mechanism simplifies card handling
• 8 contact configuration ensures stable electrical connections
• Gold plated contacts enhance conductivity and corrosion resistance
• Surface mount design optimises space on circuit boards
• Durable stainless steel housing withstands high-temperature environments
• Lead-free construction aligns with environmental regulations

Applications

• Ideal for integrating with microSD cards
• Suitable for electronic devices requiring compact memory interfaces
• Used in consumer electronics, automation, and telecommunications

What type of insertion method does this connector support?

The connector features a push-push type insertion method, allowing users to easily insert and eject microSD cards without effort.

What is the maximum current rating for this connector?

The maximum current rating per contact is 0.5A, ensuring sufficient power handling for various applications.

How durable is this connector in terms of mating cycles?

This connector is designed for up to 5,000 mating cycles, providing long-lasting performance in frequent use scenarios.

What materials are used in the construction of this connector?

It is built with a stainless steel housing and gold plating on contacts, enhancing durability and conductivity.

What temperature range can this component operate within?

The operating temperature range is from -20°C to +85°C, making it suitable for a variety of environments.

Memory Card Connectors

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Molex
	Card Type	MicroSD
	Gender	Male
	Insertion/Removal Method	Push-Push
	Number of Contacts	8
	Number of Rows	1
	Pitch	1.1mm
	Body Orientation	Right Angle
	Mounting Type	Surface Mount
	Contact Material	Copper Alloy
	Contact Plating	Gold
	Termination Method	Solder
	Housing Material	Stainless Steel
	Length	14.0mm
	Width	1.88mm
	Depth	15.2mm
	Dimensions	14 x 1.88 x 15.2mm
	Series	47352
	Series Number	47352
	Maximum Operating Temperature	+85°C
	Minimum Operating Temperature	-40°C

	Select all
	Brand Molex
	Card Type MicroSD
	Gender Male
	Insertion/Removal Method Push-Push
	Number of Contacts 8
	Number of Rows 1
	Pitch 1.1mm
	Body Orientation Right Angle
	Mounting Type Surface Mount
	Contact Material Copper Alloy
	Contact Plating Gold
	Termination Method Solder
	Housing Material Stainless Steel
	Length 14.0mm
	Width 1.88mm
	Depth 15.2mm
	Dimensions 14 x 1.88 x 15.2mm
	Series 47352
	Series Number 47352
	Maximum Operating Temperature +85°C
	Minimum Operating Temperature -40°C
