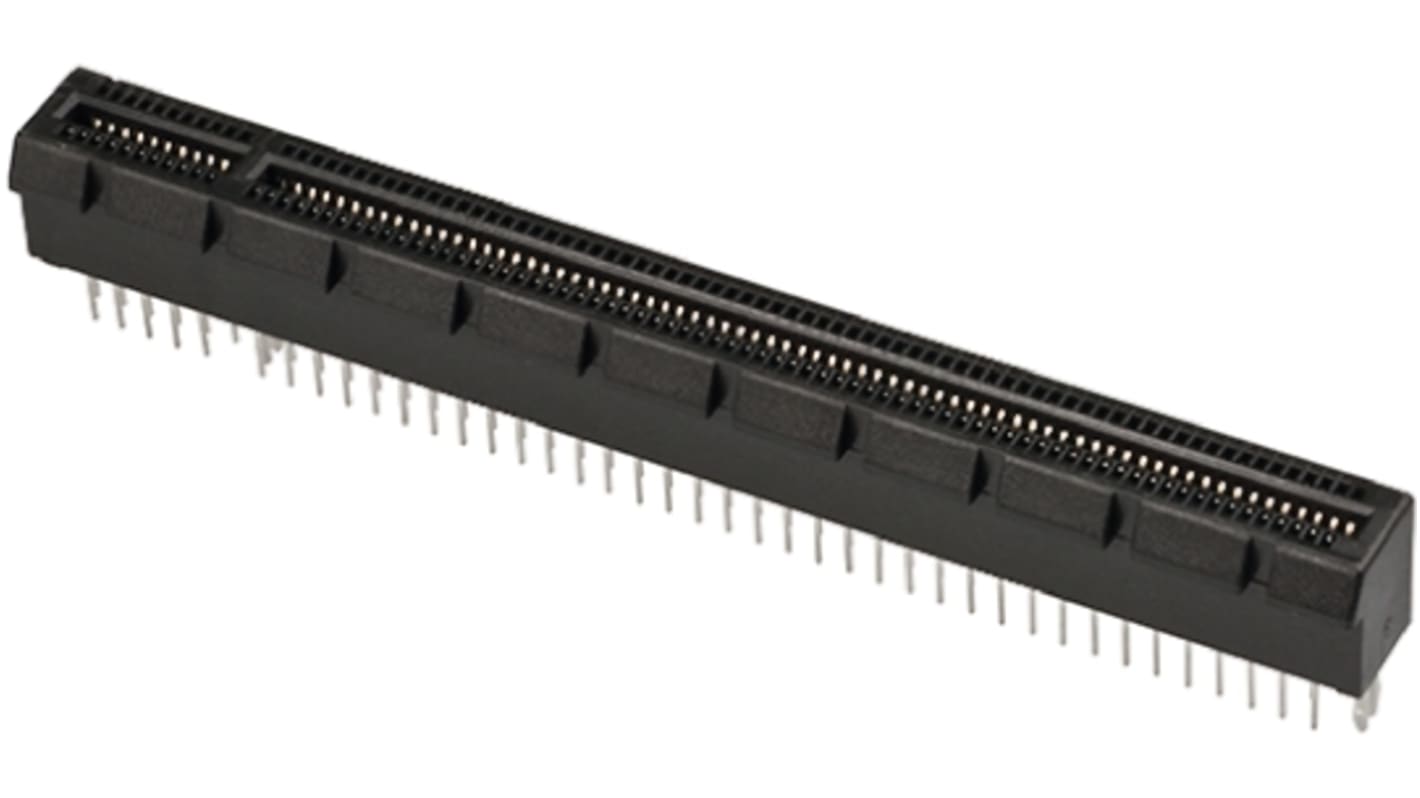

Amphenol Communications Solutions 98 Way PCI Memory Card Connector With Solder Termination
- RS Stock No.:
- 720-3625
- Mfr. Part No.:
- 10018783-11112TLF
- Brand:
- Amphenol ICC
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 720-3625
- Mfr. Part No.:
- 10018783-11112TLF
- Brand:
- Amphenol ICC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol ICC | |
| Card Type | PCI | |
| Gender | Female | |
| Number of Contacts | 98 | |
| Number of Rows | 2 | |
| Pitch | 1.0mm | |
| Body Orientation | Straight | |
| Mounting Type | Through Hole | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold over Nickel | |
| Termination Method | Solder | |
| Housing Material | Glass Fibre Reinforced Nylon | |
| Length | 56.0mm | |
| Width | 11.25mm | |
| Depth | 8.8mm | |
| Minimum Operating Temperature | -55°C | |
| Dimensions | 56 x 11.25 x 8.8mm | |
| Maximum Operating Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand Amphenol ICC | ||
Card Type PCI | ||
Gender Female | ||
Number of Contacts 98 | ||
Number of Rows 2 | ||
Pitch 1.0mm | ||
Body Orientation Straight | ||
Mounting Type Through Hole | ||
Contact Material Copper Alloy | ||
Contact Plating Gold over Nickel | ||
Termination Method Solder | ||
Housing Material Glass Fibre Reinforced Nylon | ||
Length 56.0mm | ||
Width 11.25mm | ||
Depth 8.8mm | ||
Minimum Operating Temperature -55°C | ||
Dimensions 56 x 11.25 x 8.8mm | ||
Maximum Operating Temperature +85°C | ||
- COO (Country of Origin):
- CN
PCI Express Edge Connectors
Vertical Card Edge connectors for PCI Express technology on a 1.00mm pitch.
Offer 1,4,8 or 16 serial PCI Express links to scale different bandwith requirements
Each serial link supports 2.5Gbps (per direction)
Retention locks available (see 615-9546)
Each serial link supports 2.5Gbps (per direction)
Retention locks available (see 615-9546)
Approvals
UL94V-0
