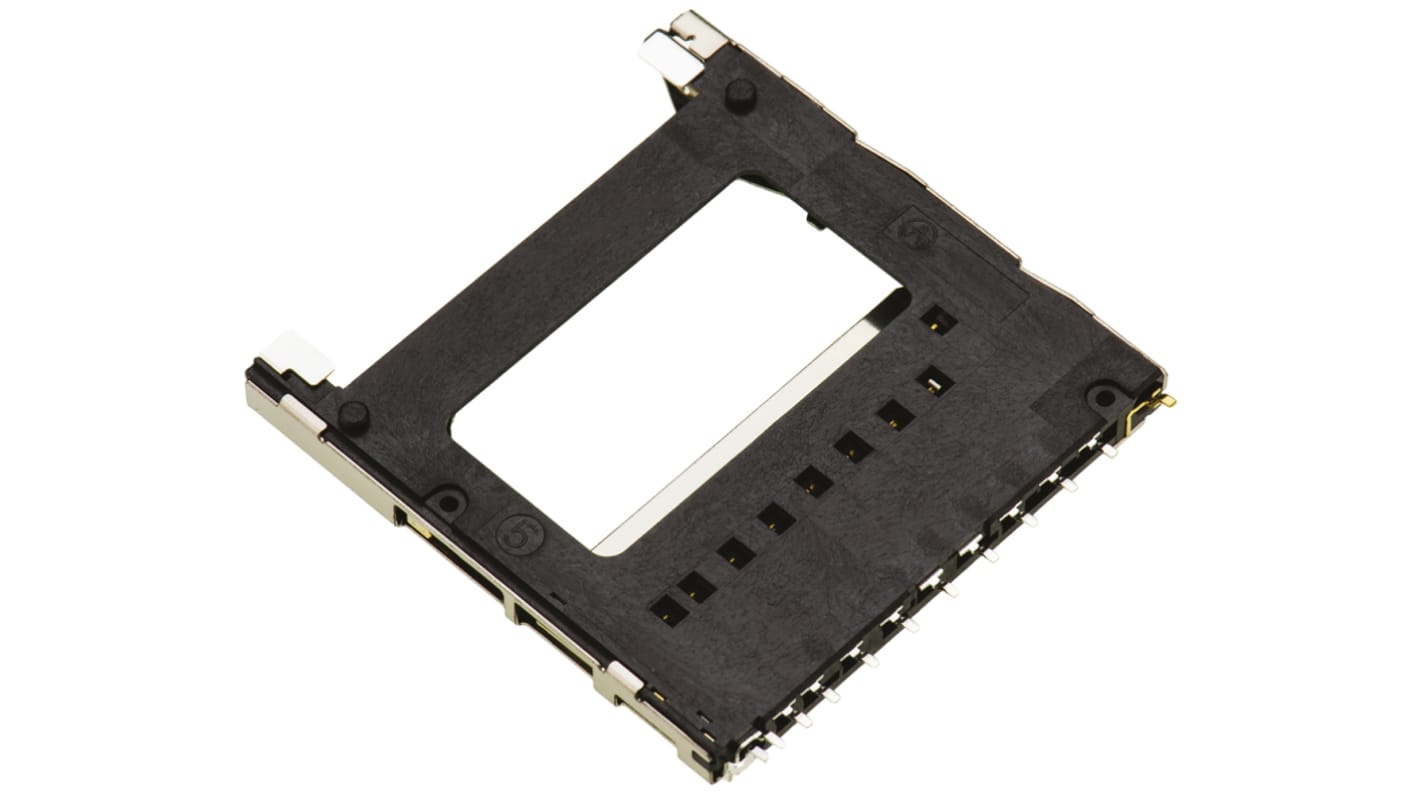

Yamaichi 9 Way Right Angle SD Card Memory Card Connector With Solder Termination
- RS Stock No.:
- 455-9102
- Mfr. Part No.:
- FPS009-2405-0
- Brand:
- Yamaichi
Discontinued
- RS Stock No.:
- 455-9102
- Mfr. Part No.:
- FPS009-2405-0
- Brand:
- Yamaichi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Yamaichi | |
| Card Type | SD Card | |
| Gender | Male | |
| Number of Contacts | 9 | |
| Number of Rows | 1 | |
| Body Orientation | Right Angle | |
| Mounting Type | Surface Mount | |
| Contact Plating | Gold over Nickel | |
| Termination Method | Solder | |
| Housing Material | Liquid Crystal Polymer | |
| Length | 30.5mm | |
| Width | 2.8mm | |
| Depth | 28mm | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -25°C | |
| Dimensions | 30.5 x 2.8 x 28mm | |
| Select all | ||
|---|---|---|
Brand Yamaichi | ||
Card Type SD Card | ||
Gender Male | ||
Number of Contacts 9 | ||
Number of Rows 1 | ||
Body Orientation Right Angle | ||
Mounting Type Surface Mount | ||
Contact Plating Gold over Nickel | ||
Termination Method Solder | ||
Housing Material Liquid Crystal Polymer | ||
Length 30.5mm | ||
Width 2.8mm | ||
Depth 28mm | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -25°C | ||
Dimensions 30.5 x 2.8 x 28mm | ||
- COO (Country of Origin):
- JP
SD Card and MMC Connector
Manual insertion and push-in/push-out low profile variants.
LCP glass filled insulator
LCP glass filled insulator
Mating cycles 10000
Manual Insertion/Extraction Type
9 Contacts
Short 20.3mm housing
Card detector and write protection switch
3-step sequential contacting mechanism
With card retention mechanism
Short 20.3mm housing
Card detector and write protection switch
3-step sequential contacting mechanism
With card retention mechanism
Push in/Push Out Low Profile Type
Card detector and write protection switch
Card lock mechanism for SD card
Card lock mechanism for SD card
