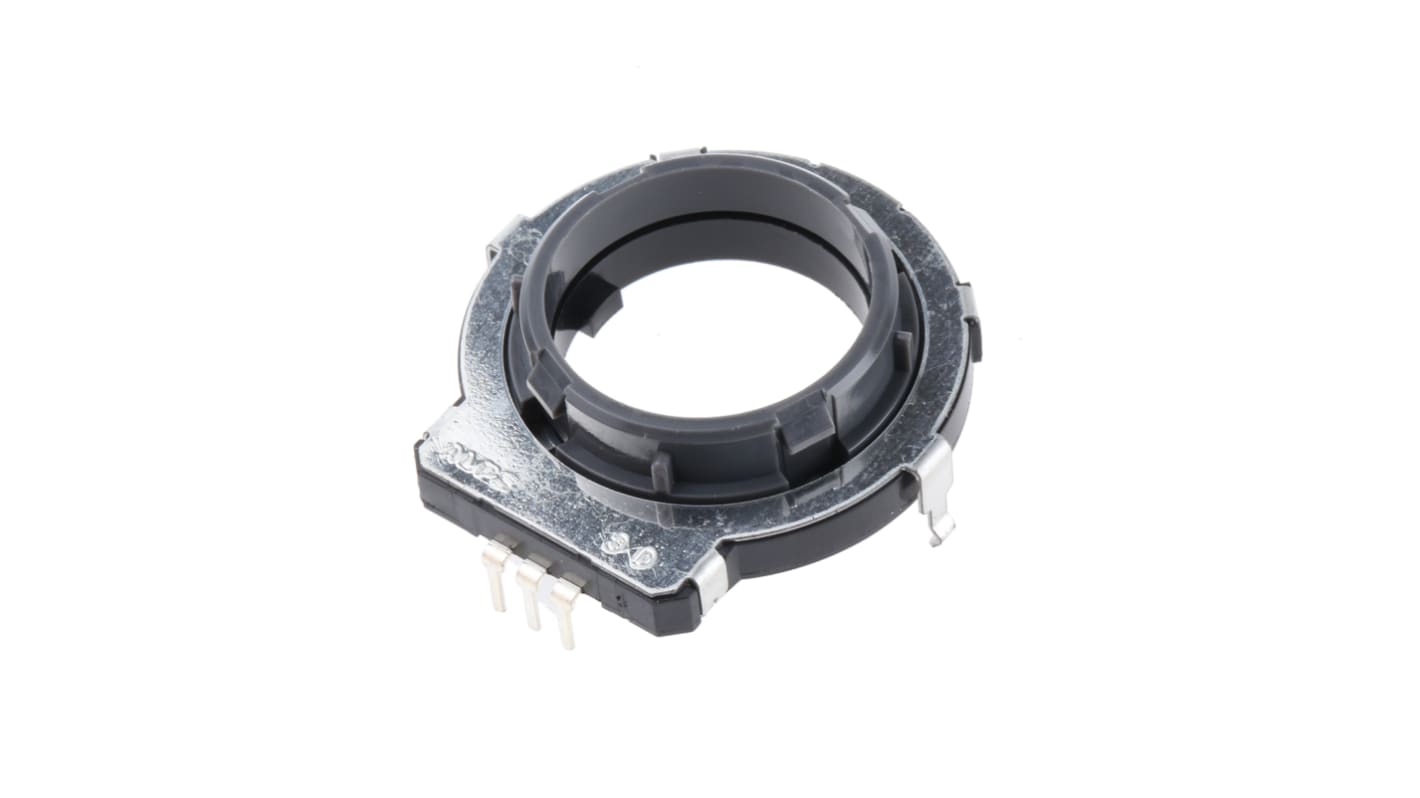

Alps Alpine 16 Pulse Incremental Mechanical Rotary Encoder with a 18.5 mm Hollow Shaft (Not Indexed), Through Hole
- RS Stock No.:
- 729-5927
- Mfr. Part No.:
- SRGPWJ0500
- Brand:
- Alps Alpine
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 729-5927
- Mfr. Part No.:
- SRGPWJ0500
- Brand:
- Alps Alpine
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alps Alpine | |
| Pulses Per Revolution | 16 | |
| Shaft Style | Hollow | |
| Shaft Diameter | 18.5 mm | |
| Encoder Reading | Incremental | |
| Encoder Signal | Digital Square Wave | |
| Mounting Type | Through Hole | |
| Index Output | Not Indexed | |
| Mounting Hole Diameter | 1 mm, 2.5 x 1.6 mm, 2.55 mm | |
Select all | ||
|---|---|---|
Brand Alps Alpine | ||
Pulses Per Revolution 16 | ||
Shaft Style Hollow | ||
Shaft Diameter 18.5 mm | ||
Encoder Reading Incremental | ||
Encoder Signal Digital Square Wave | ||
Mounting Type Through Hole | ||
Index Output Not Indexed | ||
Mounting Hole Diameter 1 mm, 2.5 x 1.6 mm, 2.55 mm | ||
30mm Ring Encoder - SRGPWJ Series
Ring encoder for Printed Circuit Board (PCB) enabling various combinations
Typical rating 10mA@5Vdc max., 50μA@3Vdc min.
Output Voltage 1V max. @ 1mA 5Vdc (Resistive load)
Operating life 50,000 cycles
Operating Temperature ｰ40 to +85℃
Typical rating 10mA@5Vdc max., 50μA@3Vdc min.
Output Voltage 1V max. @ 1mA 5Vdc (Resistive load)
Operating life 50,000 cycles
Operating Temperature ｰ40 to +85℃
