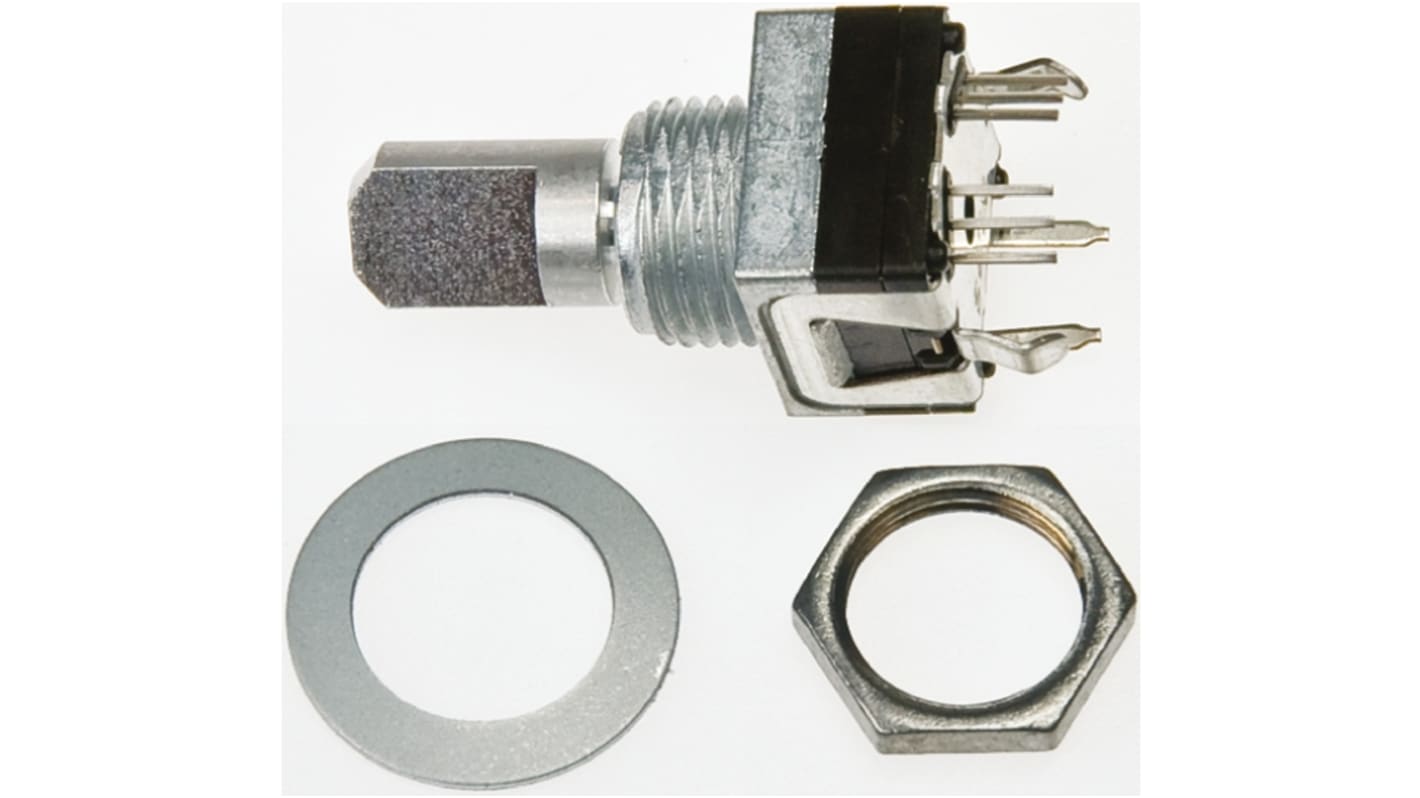

Alps Alpine 16 Pulse Incremental Mechanical Rotary Encoder with a 6 mm Flat Shaft, Through Hole

View all Mechanical Rotary Encoders
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
623-4287
Mfr. Part No.:
EM11B16140A4
Brand:
Alps Alpine
Find similar products by selecting one or more attributes.
Select all

Brand

Alps Alpine

Pulses Per Revolution

16

Shaft Style

Flat

Shaft Diameter

6 mm

Encoder Reading

Incremental

Encoder Signal

Digital Square Wave

Mounting Type

Through Hole

Shaft Length

15mm

Mounting Hole Diameter

0.7 mm, 1.3 mm, 2.1 x 1.5 mm

COO (Country of Origin):
JP

Magnetic Encoders


Magnetic encoder range with non-contact system providing zero chatter and high reliabilty, suited for use in audio control and broadcast systems.

Rated at 5Vdc +/- 5, max. current 15 mA
Detent Torque 10+/- mNm (EM11) 8+/-5 mNm (EM20)
Insulation Resistance 100Vdc (EM11), 250Vdc (EM20) 100MΩ min.
Operating temp. range -20 to +85°C (EM11), -10 to +70 °C (EM20)

STEM20B41


20mm dia. 40 pulse 40 detents
31 Segment orange LED
Flat Shaft
Push on switch
Operational life upto 1000000 cycles

EM20B4004001


20mm dia, 40 pulse 40 detents
Push on switch
Flat shaft
Operational life 500000 cycles

STEM11B01


11mm dia. 16 pulse 16 detents
Push on switch
15mm flat shaft
Operational life upto 1000000 cycles
