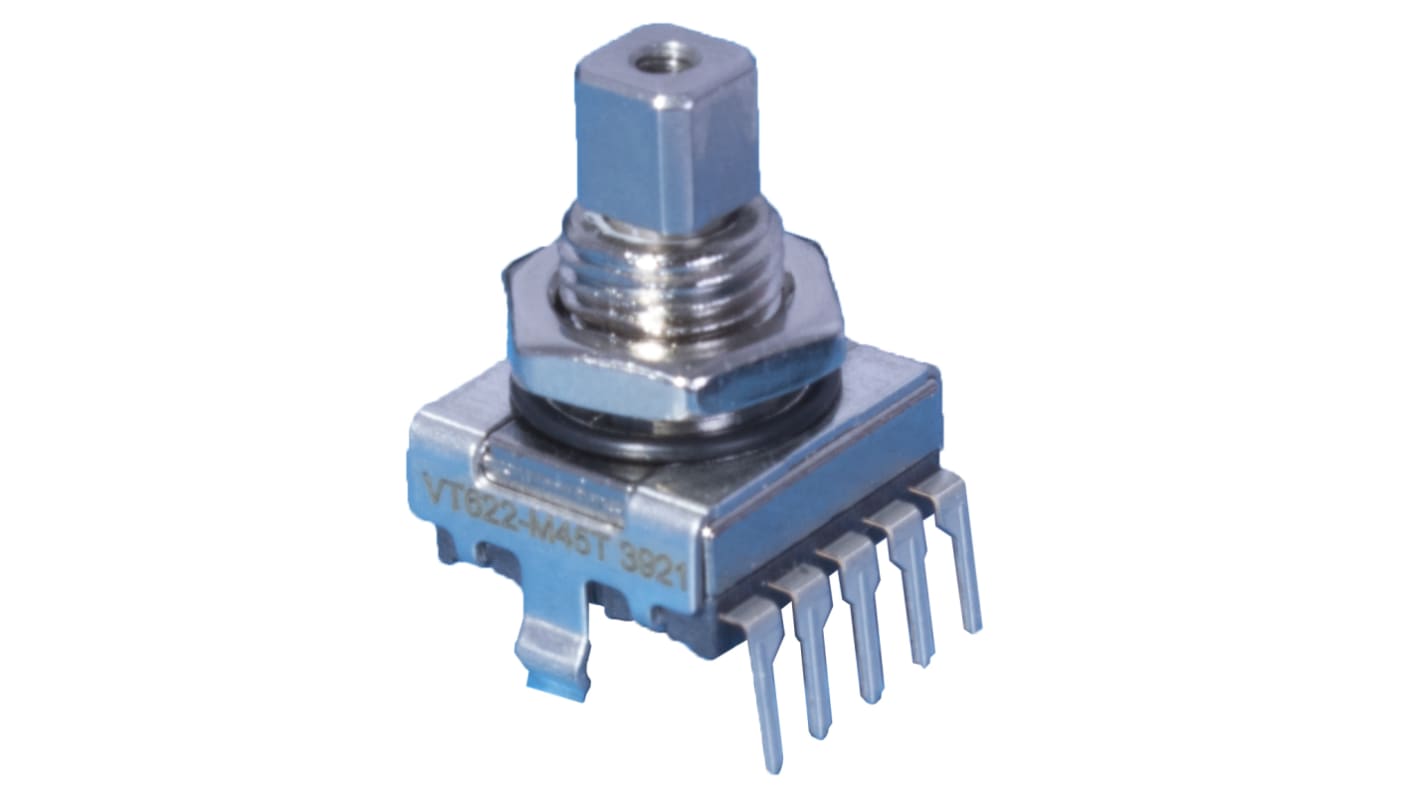

Elma 16 ppr Pulse 2 Bit Quadrature Mechanical Rotary Encoder with a 6 mm Slotted Shaft
- RS Stock No.:
- 241-2357
- Mfr. Part No.:
- E33-VT6C2-M45T
- Brand:
- Elma
Bulk discount available
View bulk pricing optionsSubtotal (1 box of 10 units)*
£204.61
(exc. VAT)
£245.53
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 40 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 10 - 10 | £20.461 | £204.61 |
| 20 + | £18.863 | £188.63 |
*price indicative
- RS Stock No.:
- 241-2357
- Mfr. Part No.:
- E33-VT6C2-M45T
- Brand:
- Elma
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Elma | |
| Pulses Per Revolution | 16ppr | |
| Product Type | Mechanical Rotary Encoder | |
| Shaft Style | Slotted | |
| Shaft Diameter | 6mm | |
| Encoder Reading | 2 Bit Quadrature | |
| Encoder Signal | Digital Square Wave | |
| Shaft Length | 5mm | |
| Maximum Operating Speed | 60rpm | |
| Termination Style | Solder | |
| Standards/Approvals | RoHS | |
| Series | E33 | |
| Current Rating | 10mA | |
| Select all | ||
|---|---|---|
Brand Elma | ||
Pulses Per Revolution 16ppr | ||
Product Type Mechanical Rotary Encoder | ||
Shaft Style Slotted | ||
Shaft Diameter 6mm | ||
Encoder Reading 2 Bit Quadrature | ||
Encoder Signal Digital Square Wave | ||
Shaft Length 5mm | ||
Maximum Operating Speed 60rpm | ||
Termination Style Solder | ||
Standards/Approvals RoHS | ||
Series E33 | ||
Current Rating 10mA | ||
The Elma type E33 Encoder has a resolution of 32 detent positions and includes a pushbutton function that is activated with a 6N push force. This variation also includes horizontal mounting and is environmentally sealed to IP68 on both the shaft and front panel.
Standard resolution 16 or 32 detent
Rotational life is up to 1,000,000 revolutions
No detent up to 4.5 Ncm switching torque (remains consistent over lifetime)
Gold plated contacts
Robust metal housing with metal shaft
Optional front panel sealing IP68
Operating temperature range is -40 to +85°C
