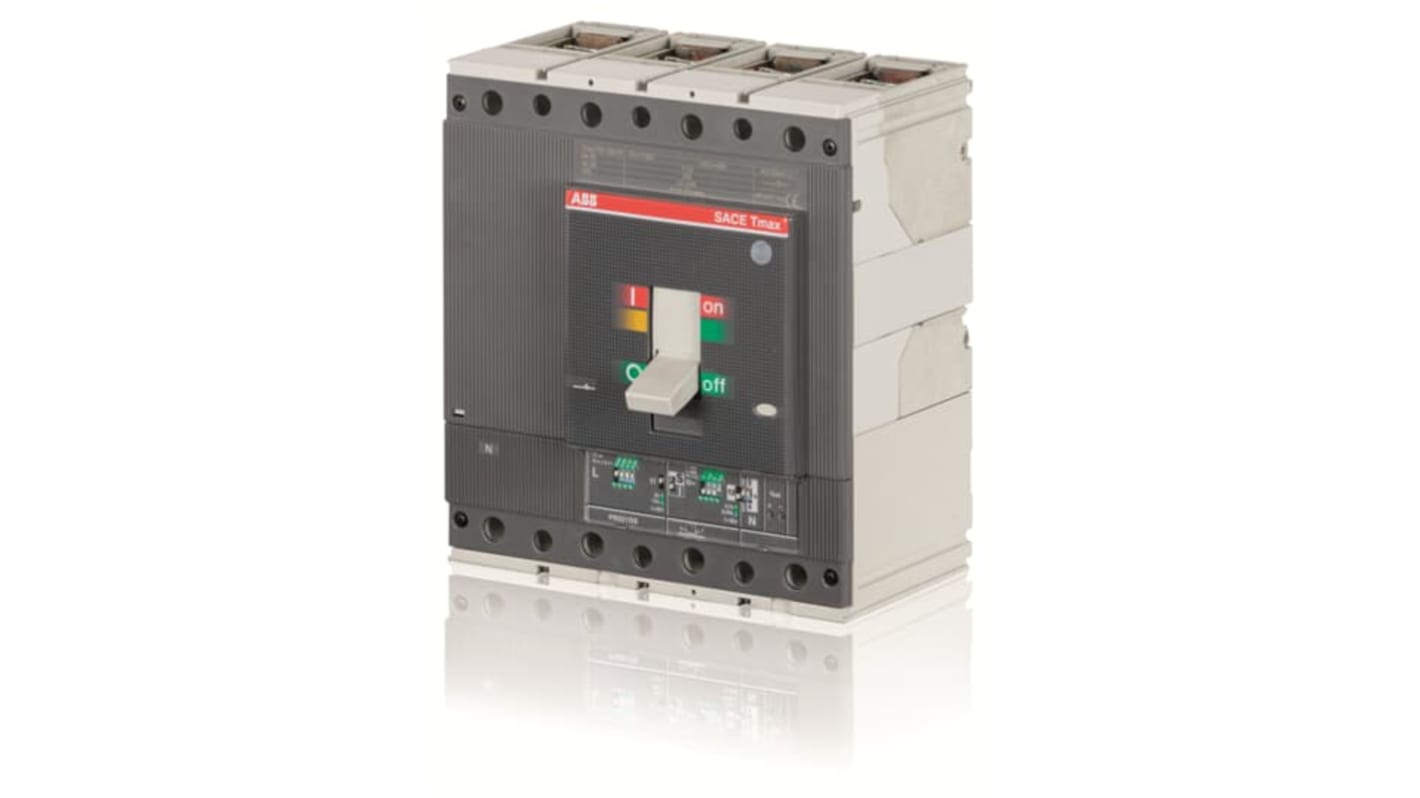

ABB, SACE Tmax T MCCB Molded Case Circuit Breaker 4P 400A, Breaking Capacity 20 kA, Fixed Mount
- RS Stock No.:
- 232-0085
- Mfr. Part No.:
- 1SDA054325R1 T5N400 FF PR221-LS 400A
- Brand:
- ABB
Available to back order for despatch 06/08/2024
Price Each
£1,396.03
(exc. VAT)
£1,675.24
(inc. VAT)
Units | Per unit |
|---|---|
| 1 + | £1,396.03 |
- RS Stock No.:
- 232-0085
- Mfr. Part No.:
- 1SDA054325R1 T5N400 FF PR221-LS 400A
- Brand:
- ABB
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details
ABB MCCB, 4 Poles, 690V AC Operating Voltage - T5N Series - 1SDA054325R1 T5N400 FF PR221-LS 400A
Need a robust solution to help protect your heavy-duty electrical equipment? This moulded case circuit breaker from ABB steps in to safeguard applications against short circuits and overloads by automatically tripping faulty feeds. The multi-pole device accommodates up to four circuits, letting you streamline your setup. Thanks to the front-facing terminals, linking it up between your power source and application is a doddle. This breaker measures just 205 (H) x 186 (W) x 103.5mm (D), so fit neatly into busy panels or distribution boxes.
Features & Benefits
• Tough plastic casing insulates live components to minimise the risk of shocks
• Electrical durability of 7,000 cycles for long-lasting performance
• 400A current rating means the device can handle high inrush currents
• 6.071kg weight for easy handling
• Electrical durability of 7,000 cycles for long-lasting performance
• 400A current rating means the device can handle high inrush currents
• 6.071kg weight for easy handling
Applications
• Automated factory processes
• Industrial machinery
• Aerospace technology
• Medical imaging equipment
• Industrial machinery
• Aerospace technology
• Medical imaging equipment
How do I know if this MCCB moulded case circuit breaker is on or off?
A front-facing toggle switch clearly shows if the device is live or not – it's in the up position when ON and down position when OFF. This helps with troubleshooting and electrical safety.
Specifications
Attribute | Value |
|---|---|
| Range | SACE Tmax T |
| Series | T5N |
| Number of Poles | 4 |
| Current Rating | 400A |
| Breaking Capacity at Maximum Voltage Rating | 20 kA |
| Rated AC Voltage | 690V |
| Mounting Style | Fixed |
| Length | 103.5mm |
| Width | 186mm |
| Depth | 205mm |
| Circuit Breaker Type | MCCB |
