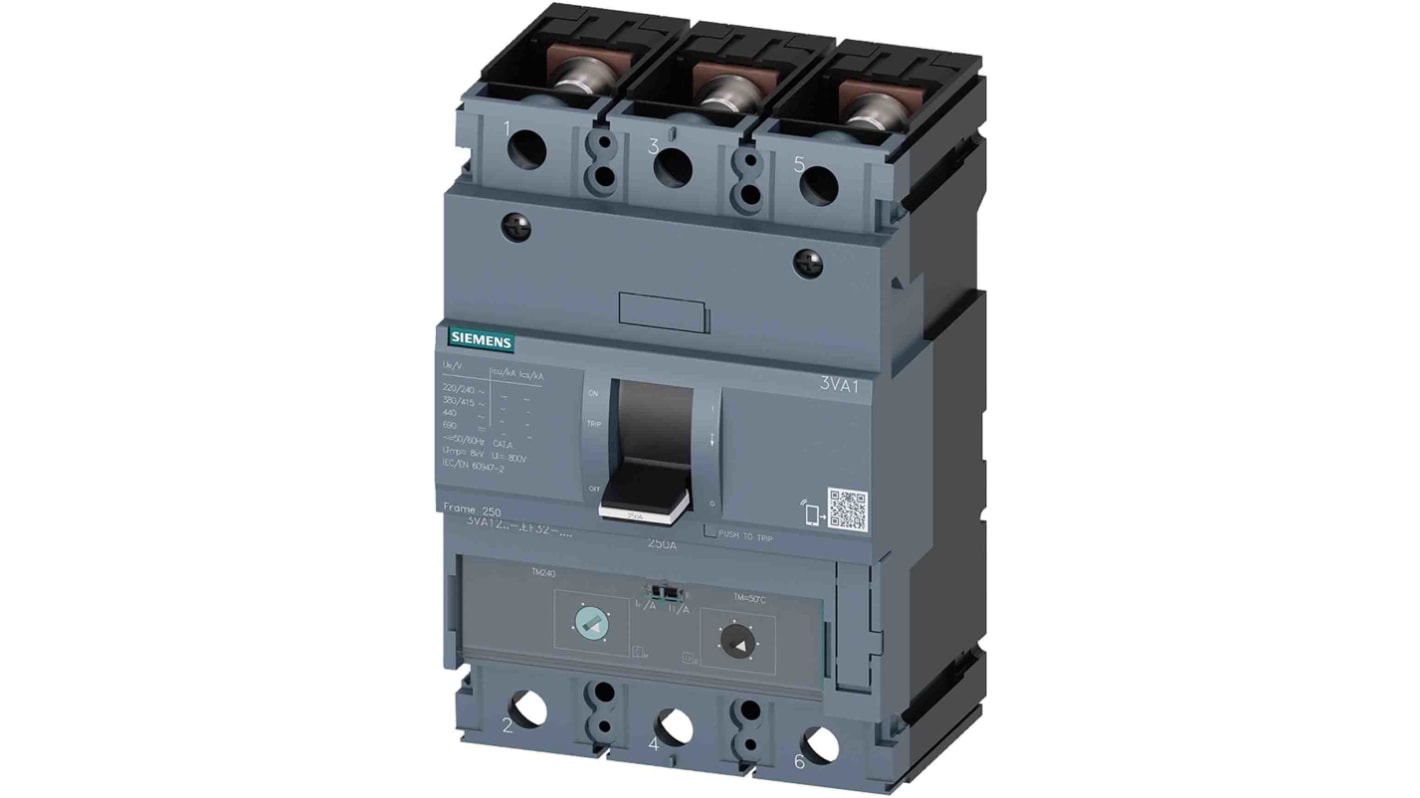

Siemens, SENTRON MCCB 3P 250A, Breaking Capacity 36 kA
- RS Stock No.:
- 209-6881
- Distrelec Article No.:
- 301-38-053
- Mfr. Part No.:
- 3VA1225-4EF32-0AA0
- Brand:
- Siemens
Subtotal (1 unit)*
£635.60
(exc. VAT)
£762.72
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 1 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £635.60 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 209-6881
- Distrelec Article No.:
- 301-38-053
- Mfr. Part No.:
- 3VA1225-4EF32-0AA0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Range | SENTRON | |
| Series | 3VA1 | |
| Number of Poles | 3 | |
| Current Rating | 250A | |
| Breaking Capacity at Maximum Voltage Rating | 36 kA | |
| Rated AC Voltage | 690V | |
| Rated DC Voltage | 500V | |
| Length | 105mm | |
| Width | 70mm | |
| Depth | 158mm | |
| Better World Product | Yes | |
| Better World Claim | Extended product life, Saves energy | |
| Reset Actuator Type | Toggle Switch | |
| Tripping Characteristics | Type S | |
| Circuit Breaker Type | MCCB | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Range SENTRON | ||
Series 3VA1 | ||
Number of Poles 3 | ||
Current Rating 250A | ||
Breaking Capacity at Maximum Voltage Rating 36 kA | ||
Rated AC Voltage 690V | ||
Rated DC Voltage 500V | ||
Length 105mm | ||
Width 70mm | ||
Depth 158mm | ||
Better World Product Yes | ||
Better World Claim Extended product life, Saves energy | ||
Reset Actuator Type Toggle Switch | ||
Tripping Characteristics Type S | ||
Circuit Breaker Type MCCB | ||
- COO (Country of Origin):
- CZ
Siemens 3VA1 Series MCCB, 250A Current Rating, 36 kA Breaking Capacity - 3VA1225-4EF32-0AA0
This MCCB is an essential component in electrical distribution systems. Designed for line protection, it offers advanced overcurrent and short-circuit protection. With three poles and a current rating of 250A, this circuit breaker ensures reliability in industrial applications. It features a compact design with dimensions of 105mm in length, 70mm in width, and 158mm in depth, making it suitable for various installations.
Features & Benefits
• High breaking capacity of 36 kA at 415V enhances safety
• Type S tripping characteristics ensure precise fault detection
• Adjustable overload protection ranges from 175A to 250A
• Suitable for AC and DC operations with a rated voltage of 690V
• Robust mechanical and electrical endurance with up to 20,000 operating cycles
• Convenient toggle switch reset actuator for user-friendly operation
• Type S tripping characteristics ensure precise fault detection
• Adjustable overload protection ranges from 175A to 250A
• Suitable for AC and DC operations with a rated voltage of 690V
• Robust mechanical and electrical endurance with up to 20,000 operating cycles
• Convenient toggle switch reset actuator for user-friendly operation
Applications
• Used for protecting motor circuits in industrial environments
• Employed in substations for reliable power distribution
• Ideal for requiring robust short-circuit protection
• Utilised in switchgear for enhanced operational safety
• Implemented in commercial buildings for power management
• Employed in substations for reliable power distribution
• Ideal for requiring robust short-circuit protection
• Utilised in switchgear for enhanced operational safety
• Implemented in commercial buildings for power management
What happens if the operational current exceeds the rated limit?
Exceeding the operational current of 250A may trigger the built-in thermal protection, leading to the circuit breaker tripping to prevent overheating and potential damage to connected equipment.
How does the adjustable overload protection work?
The adjustable overload protection allows users to set the desired threshold between 175A and 250A based on specific load requirements, ensuring optimal performance while safeguarding against current surges.
Can this device function in extreme temperatures?
Yes, it operates efficiently between -25°C and 70°C, allowing flexible deployment in various environments, including harsh industrial settings.
What is the advantage of the Type S tripping characteristics?
Type S tripping characteristics provide precise fault detection, reducing the risk of nuisance tripping and allowing for more accurate operation in complex circuit configurations.
How does the breaking capacity vary with different voltage levels?
The breaking capacity is maximised at 36 kA for 415V, ensuring safe interruption of high fault currents, while it decreases for higher voltages, notably lower for 690V at 7 kA, tailored to specific application needs.
