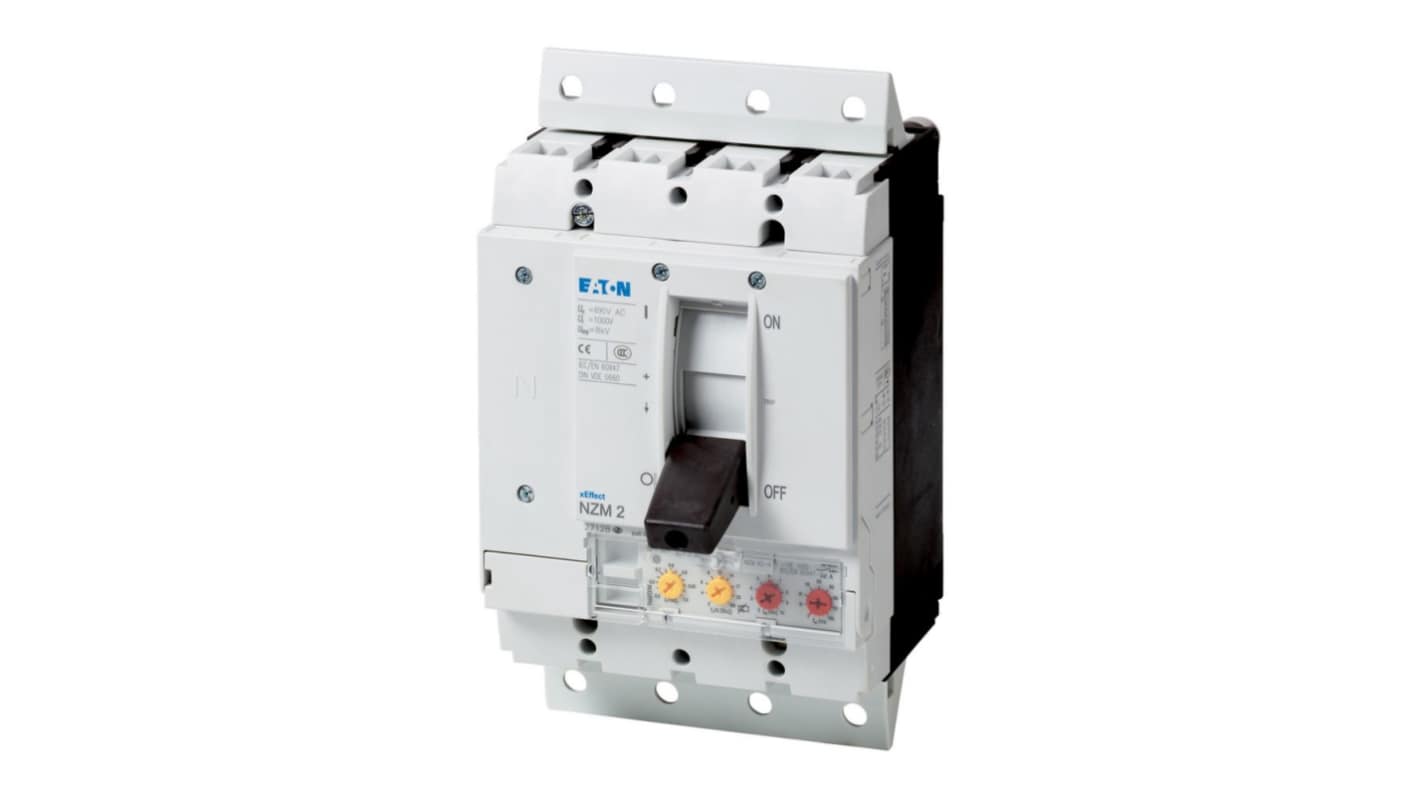

Eaton, NZM, NZM Molded Case Circuit Breaker 4-Pole 250 A, Breaking Capacity 5 kA, Plug-in
- RS Stock No.:
- 229-887
- Mfr. Part No.:
- 113394 NZMH2-4-VE250/160-SVE
- Brand:
- Eaton
Subtotal (1 unit)*
£2,915.61
(exc. VAT)
£3,498.73
(inc. VAT)
Add 1 unit to get free delivery
Temporarily out of stock
- Shipping from 08 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2,915.61 |
*price indicative
- RS Stock No.:
- 229-887
- Mfr. Part No.:
- 113394 NZMH2-4-VE250/160-SVE
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Range | NZM | |
| Product Type | Molded Case Circuit Breaker | |
| Series | NZM | |
| Number of Poles | 4 | |
| Current Rating | 250 A | |
| Breaking Capacity | 5kA | |
| Rated AC Voltage | 690 V ac | |
| Mount Type | Plug-in | |
| Terminal Type | Screw | |
| Depth | 180mm | |
| Standards/Approvals | RoHS, IEC/EN 60947 | |
| Height | 245mm | |
| Width | 105 mm | |
| Tripping Mechanism | Electronic | |
| Tripping Characteristics | Adjustable Delay Setting | |
| Reset Actuator Type | Rocker Lever | |
| Break Time | 10 ms | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Range NZM | ||
Product Type Molded Case Circuit Breaker | ||
Series NZM | ||
Number of Poles 4 | ||
Current Rating 250 A | ||
Breaking Capacity 5kA | ||
Rated AC Voltage 690 V ac | ||
Mount Type Plug-in | ||
Terminal Type Screw | ||
Depth 180mm | ||
Standards/Approvals RoHS, IEC/EN 60947 | ||
Height 245mm | ||
Width 105 mm | ||
Tripping Mechanism Electronic | ||
Tripping Characteristics Adjustable Delay Setting | ||
Reset Actuator Type Rocker Lever | ||
Break Time 10 ms | ||
RoHS Status: Exempt
- COO (Country of Origin):
- RO
The Eaton high-performance molded case circuit breaker is engineered to excel in demanding applications and ensures superior protection against overload and short-circuit incidents. Designed as part of the moeller series, this circuit breaker effectively combines advanced technology with robust design to provide reliable performance in ungrounded supply systems up to 690 V. Featuring a four-pole configuration with rated capacities of 250 A and adjustable settings, it guarantees precise protection tailored to your installation's specifications. This product embodies the commitment to quality and safety, making it an ideal choice for professionals seeking dependable solutions in electrical distribution systems.
Robust construction ensures durability in rigorous environments
Electronic release system provides enhanced control
Adjustable delay settings enable tailored response to current peaks
Suitable for use up to 690 V, expanding application versatility
Maintains compliance with RoHS standards for environmental safety
IP20 protection rating offers suitable ingress protection
Designed for easy installation with plug-in capabilities
Proven lifespan of 20,000 mechanical operations supports reliability
Integrated temperature rise calculations assist in thermal management
Offers shock resistance to withstand external impacts
