ABB High Performance S800N MCB, 1P, 125A Curve B, 400V AC, 6 kA Breaking Capacity
- RS Stock No.:
- 435-346
- Mfr. Part No.:
- 2CCS891001R0845 S801N-B125
- Brand:
- ABB

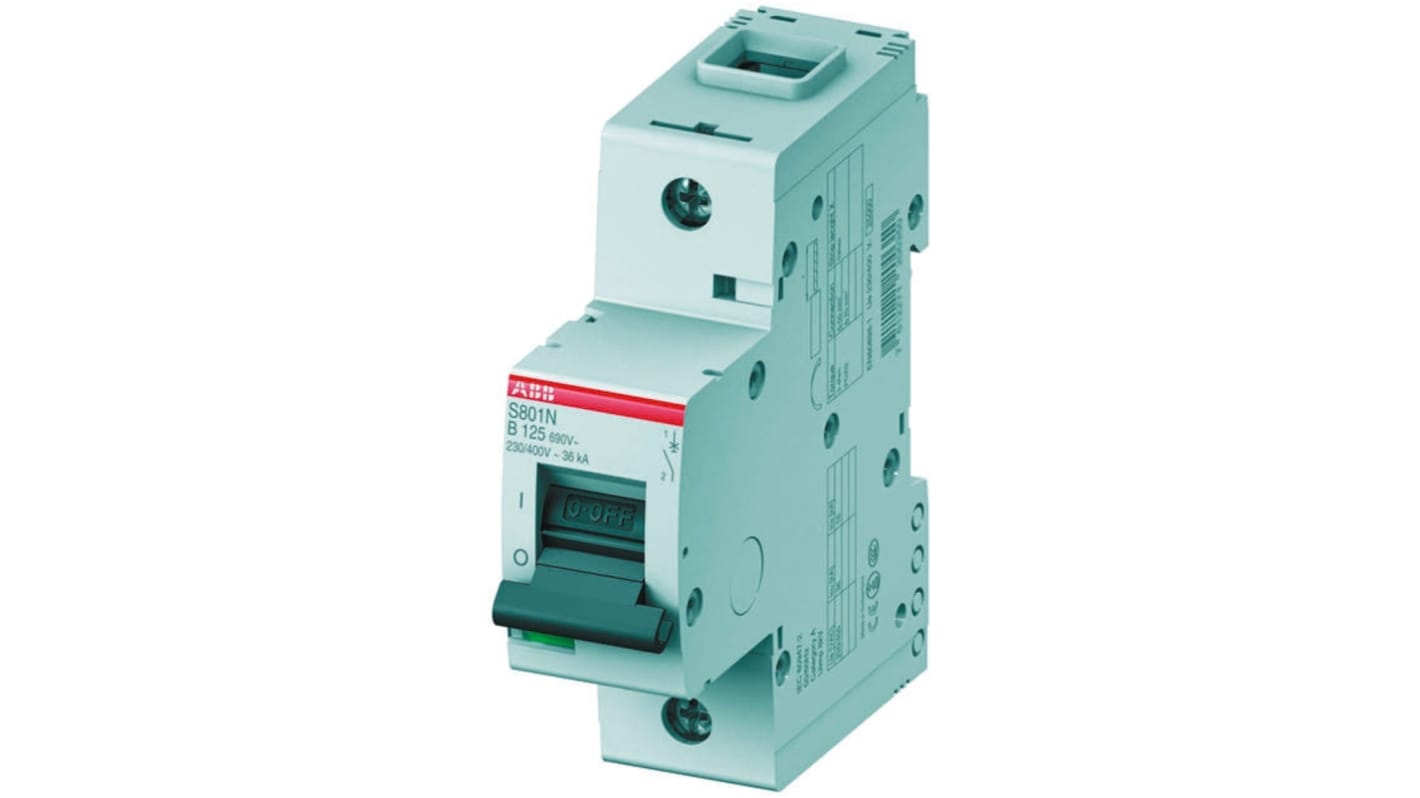

Image representative of range
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 435-346
- Mfr. Part No.:
- 2CCS891001R0845 S801N-B125
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 1P | |
| Current Rating | 125A | |
| Tripping Characteristics | Type B | |
| Rated AC Voltage | 400 V, 690V | |
| Breaking Capacity at Maximum Voltage Rating | 6 kA | |
| Range | High Performance | |
| Series | S800N | |
| Circuit Breaker Type | MCB | |
| Mounting Style | DIN Rail Mount | |
| Depth | 88.5mm | |
| Model Number | S801N-B125 | |
Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 1P | ||
Current Rating 125A | ||
Tripping Characteristics Type B | ||
Rated AC Voltage 400 V, 690V | ||
Breaking Capacity at Maximum Voltage Rating 6 kA | ||
Range High Performance | ||
Series S800N | ||
Circuit Breaker Type MCB | ||
Mounting Style DIN Rail Mount | ||
Depth 88.5mm | ||
Model Number S801N-B125 | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- CH
High-performance MCB S800N-B, 1-pin 36 kA
The S800 High performance MCB from ABB sets new standards thanks to its high rated current range and breaking capacities, good selectivity and back-up protection, an ideal solution for system protection and maximum availability.The compact design, excellent current limitation, trip position indicator, change over terminal adapter with cage or ring terminals along with a wide range of accessories, guarantee a high level of flexibility and convenience. Type B characteristics offer short circuit response of 3-5 x normal rated current. Suitable for circuits with low current peaks such as boilers and electric heating.
DIN rail mounting
Operating temperature -25 → +60°C
Max. operating voltage 400 → 690 V ac 50 → 60 Hz
Width 27 mm
Operating temperature -25 → +60°C
Max. operating voltage 400 → 690 V ac 50 → 60 Hz
Width 27 mm
Standards
EN 60898-1, IEC 60947-2
Approvals
CCC
ABB System Pro M Single & Double Pole MCB's
Note
The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically stock no. 539-1553.
