ABB, 125 V dc DC, 25 kA Breaking Capacity

View all MCBs

Subtotal (1 unit)*

£37.06

(exc. VAT)

£44.47

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 29 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£37.06

*price indicative

RS Stock No.:
203-009
Mfr. Part No.:
2CDS381001R0061
Brand:
ABB
Find similar products by selecting one or more attributes.
Select all

Brand

ABB

Rated DC Voltage

125V dc

Breaking Capacity

25kA

Depth

69mm

COO (Country of Origin):
DE

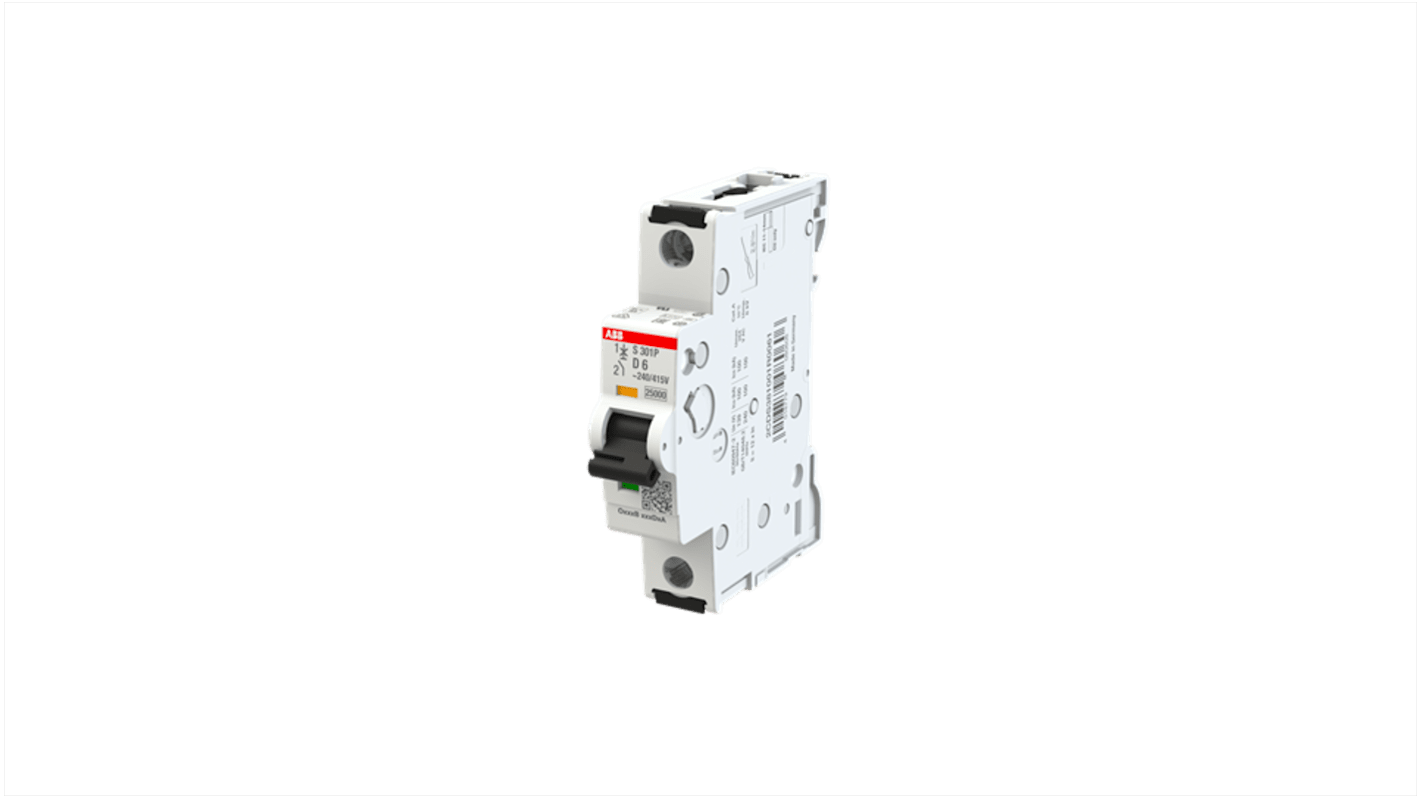

ABB S301 Series MCB, 6A Current Rating, Type D Tripping Characteristics - 2CDS381001R0061


This MCB is a compact 1-pole circuit breaker designed to provide electrical circuit protection with a rated current of 6A. It features a breaking capacity of 100 kA, ensuring high safety standards. The device is ideal for mounting on DIN rails and complies with various international standards, including IEC/EN 60947-2 and IEC/EN 60898-1.

Features & Benefits


• Offers a robust 100 kA breaking capacity for effective protection during fault conditions

• Utilises Type D tripping characteristics to handle high inrush currents

• Features screw-type terminals for secure wiring connections

• Compact design ensures space efficiency with a width of 17.5mm

• Dual DIN rail release mechanism simplifies installation and maintenance

• Capable of operating at a rated voltage of 415V for enhanced versatility

Applications


• Utilised in commercial and industrial electrical systems

• Ideal for use in areas requiring short-circuit and overload protection

• Well-suited for automation and machinery control

• Compatible with a range of electrical accessories for expanded functionality

• Effective in both single-phase and three-phase systems

How does the MCB manage electrical overloads in circuits?


It detects overload conditions through thermal and magnetic tripping mechanisms, automatically disconnecting the circuit to prevent damage.

What are the installation requirements for this type of circuit breaker?


It should be mounted on a standard DIN rail with specified torque settings for the terminals to ensure a secure connection without compromising performance.

Can this MCB be easily replaced if it trips frequently?


Yes, its design allows for straightforward installation and replacement, making maintenance swift and efficient without needing special tools.
