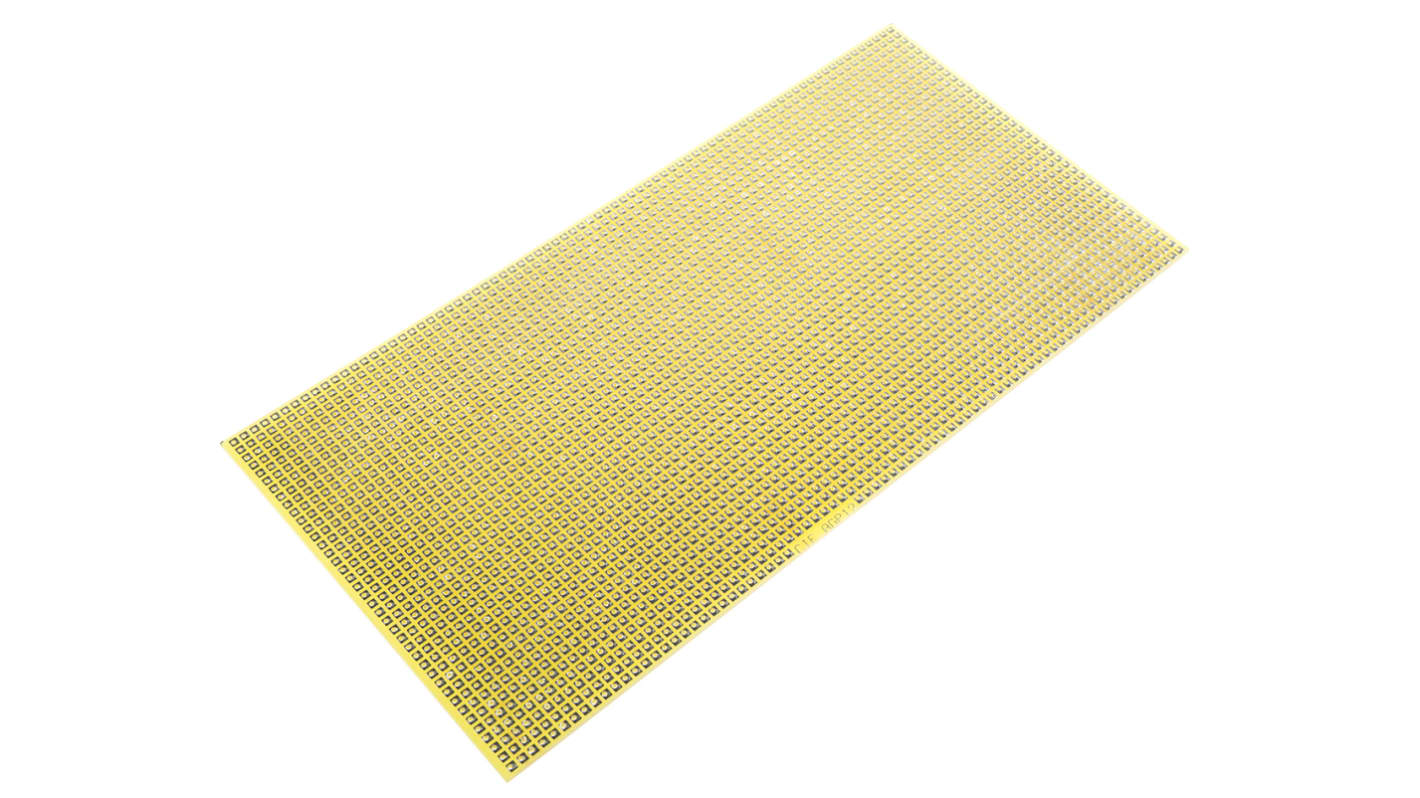

CIF Single Sided Matrix Board FR4 1mm Holes, 2.54 x 2.54mm Pitch, 200 x 100 x 1.6mm
- RS Stock No.:
- 457-0761
- Mfr. Part No.:
- AGP12
- Brand:
- CIF
3 In stock - FREE next working day delivery available
23 available from Europe for delivery within 1 working day(s).
Added
Price Each
£13.07
(exc. VAT)
£15.68
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £13.07 |
| 5 - 9 | £12.16 |
| 10 - 24 | £11.37 |
| 25 - 49 | £10.59 |
| 50 + | £9.54 |
- RS Stock No.:
- 457-0761
- Mfr. Part No.:
- AGP12
- Brand:
- CIF
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
Copper-tin plated square pad cards
Single-sided copper-tin plated square pad cards.
2.54 mm drilled pitch.
Gap between tracks is 0.54 mm.
Square pads 2 mm x 2 mm.
2.54 mm drilled pitch.
Gap between tracks is 0.54 mm.
Square pads 2 mm x 2 mm.
Specifications
Attribute | Value |
|---|---|
| Number of Sides | 1 |
| Hole Pitch | 2.54 x 2.54mm |
| Dimensions | 200 x 100 x 1.6mm |
| Length | 200mm |
| Width | 100mm |
| Thickness | 1.6mm |
| Base Material | Epoxy Glass Fabric Laminate |
| Hole Diameter | 1mm |
| FR Material Grade | FR4 |
| Copper Thickness | 35µm |
