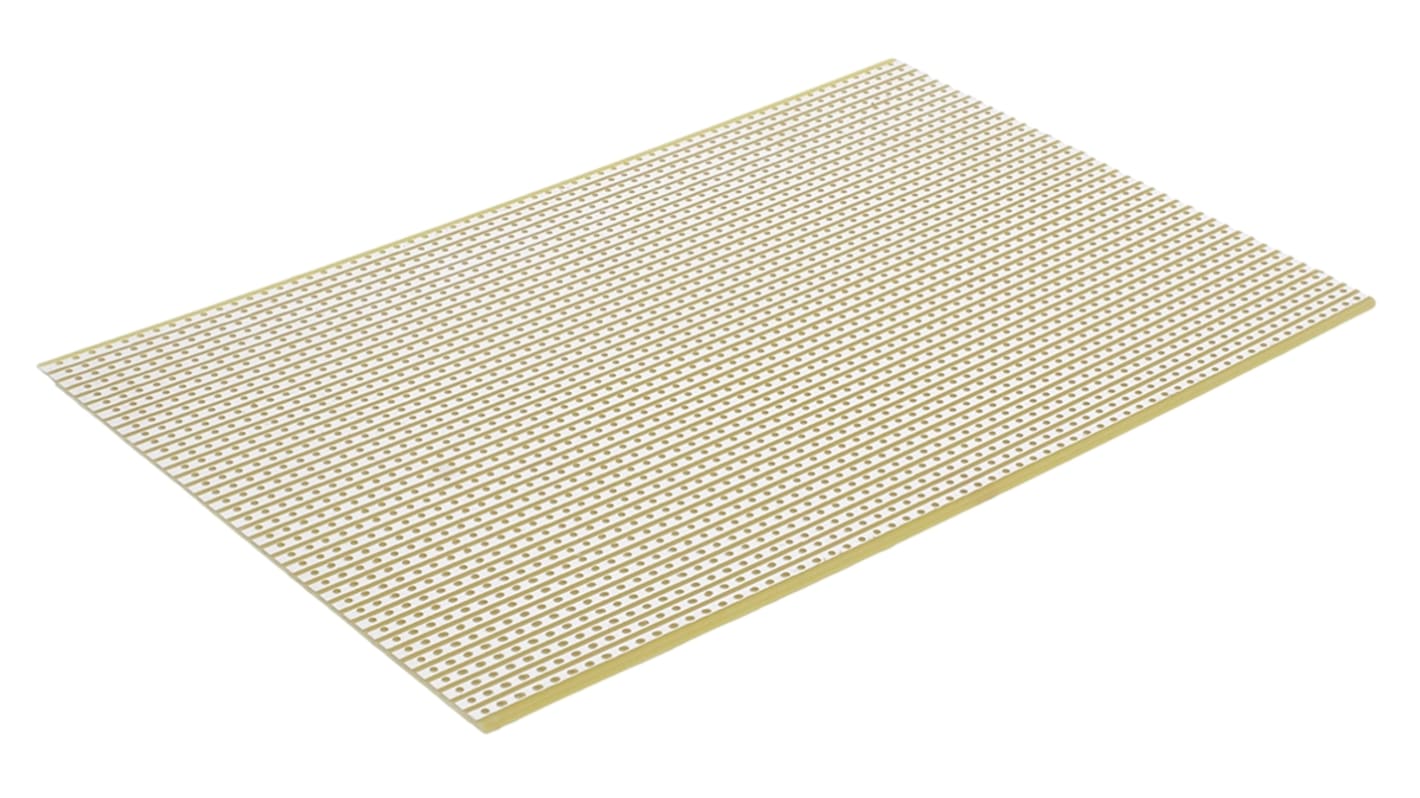

CIF Single Sided Matrix Board FR2 1mm Holes, 2.54 x 2.54mm Pitch, 220 x 100 x 1.6mm
- RS Stock No.:
- 159-5521
- Mfr. Part No.:
- AJP22
- Brand:
- CIF
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£10.32
(exc. VAT)
£12.38
(inc. VAT)
- RS Stock No.:
- 159-5521
- Mfr. Part No.:
- AJP22
- Brand:
- CIF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | CIF | |
| Number of Sides | Single Sided | |
| Hole Pitch | 2.54 x 2.54mm | |
| Dimensions | 220 x 100 x 1.6mm | |
| Length | 220mm | |
| Width | 100mm | |
| Thickness | 1.6mm | |
| Base Material | Synthetic Resin Bonded Paper | |
| Hole Diameter | 1mm | |
| FR Material Grade | FR2 | |
| Copper Thickness | 35µm | |
Select all | ||
|---|---|---|
Brand CIF | ||
Number of Sides Single Sided | ||
Hole Pitch 2.54 x 2.54mm | ||
Dimensions 220 x 100 x 1.6mm | ||
Length 220mm | ||
Width 100mm | ||
Thickness 1.6mm | ||
Base Material Synthetic Resin Bonded Paper | ||
Hole Diameter 1mm | ||
FR Material Grade FR2 | ||
Copper Thickness 35µm | ||
RoHS Status: Not Applicable
Square pad cards
SRBP single sided square pad PCBs
Track gap 0.54mm
Nominal thickness 1.5mm
Hole pitch 2.54mm (0.1in)
Hole dia 1.0mm
Copper thickness 35μm
Track gap 0.54mm
Nominal thickness 1.5mm
Hole pitch 2.54mm (0.1in)
Hole dia 1.0mm
Copper thickness 35μm
DIN Type Matrixboard
Matrix boards with 1mm holes on a 2.50mm pitch.
