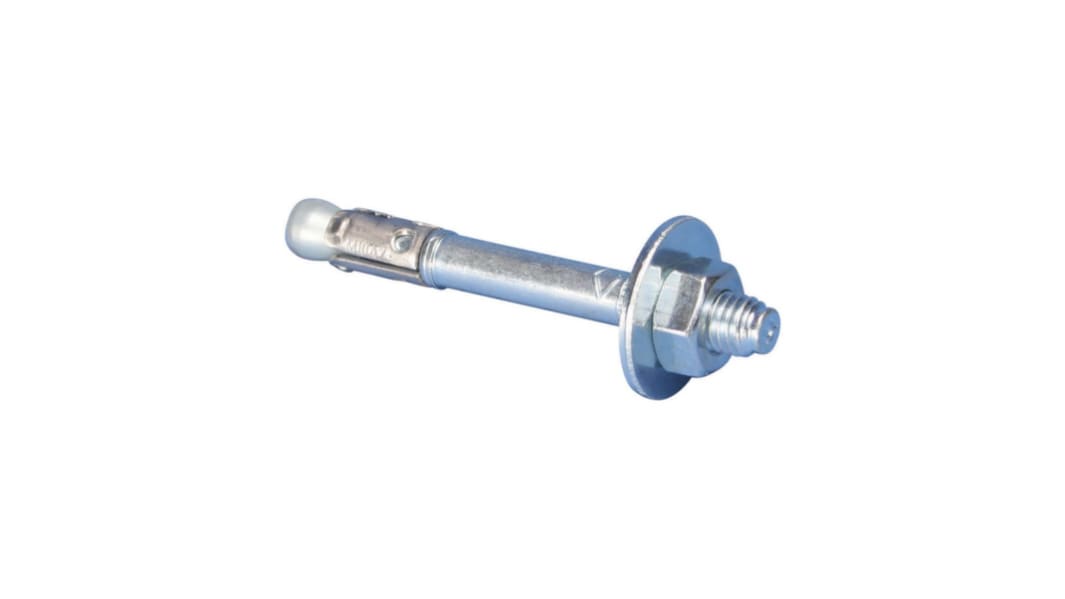

nVent CADDY Steel Bolt Anchor M10 x 135 mm 10 mm
- RS Stock No.:
- 277-6595
- Mfr. Part No.:
- 400411
- Brand:
- nVent CADDY
Subtotal (1 box of 50 units)*
£197.85
(exc. VAT)
£237.42
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 23 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £197.85 | £3.957 |
*price indicative
- RS Stock No.:
- 277-6595
- Mfr. Part No.:
- 400411
- Brand:
- nVent CADDY
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | nVent CADDY | |
| Product Type | Bolt Anchor | |
| Thread Size | M10 | |
| Sub Type | Anchor Bolt | |
| Length | 135mm | |
| Drill Diameter | 10 mm | |
| Maximum Fixing Thickness | 68mm | |
| Material | Steel | |
| Finish | Electro Galvanised | |
| Standards/Approvals | RoHS Compliant, ETA-12/0397 | |
| Select all | ||
|---|---|---|
Brand nVent CADDY | ||
Product Type Bolt Anchor | ||
Thread Size M10 | ||
Sub Type Anchor Bolt | ||
Length 135mm | ||
Drill Diameter 10 mm | ||
Maximum Fixing Thickness 68mm | ||
Material Steel | ||
Finish Electro Galvanised | ||
Standards/Approvals RoHS Compliant, ETA-12/0397 | ||
- COO (Country of Origin):
- DE
The nVent CADDY anchor stud has R30-R120 fire rating for fire exposed anchor design and approved for use in seismic design category C1 and C2.
Anchor wedge for heavy load
For cracked or uncracked concrete
