RS PRO Ankerbolt 6 x 75mm x 75mm, 10mm Fixing Hole
- RS Stock No.:
- 177-6888
- Brand:
- RS PRO
Subtotal (1 bag of 25 units)*
£13.11
(exc. VAT)
£15.73
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 23 unit(s) ready to ship
- Plus 57 unit(s) shipping from 12 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
---|---|---|
1 + | £13.11 | £0.524 |
*price indicative
- RS Stock No.:
- 177-6888
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Thread Size | 6 x 75mm | |
Type | Ankerbolt | |
Length | 75mm | |
Fixing Hole Diameter | 10mm | |
Maximum Fixing Thickness | 30 (Deep Embedment), 45 (Shallow Embedment) | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Thread Size 6 x 75mm | ||
Type Ankerbolt | ||
Length 75mm | ||
Fixing Hole Diameter 10mm | ||
Maximum Fixing Thickness 30 (Deep Embedment), 45 (Shallow Embedment) | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TW

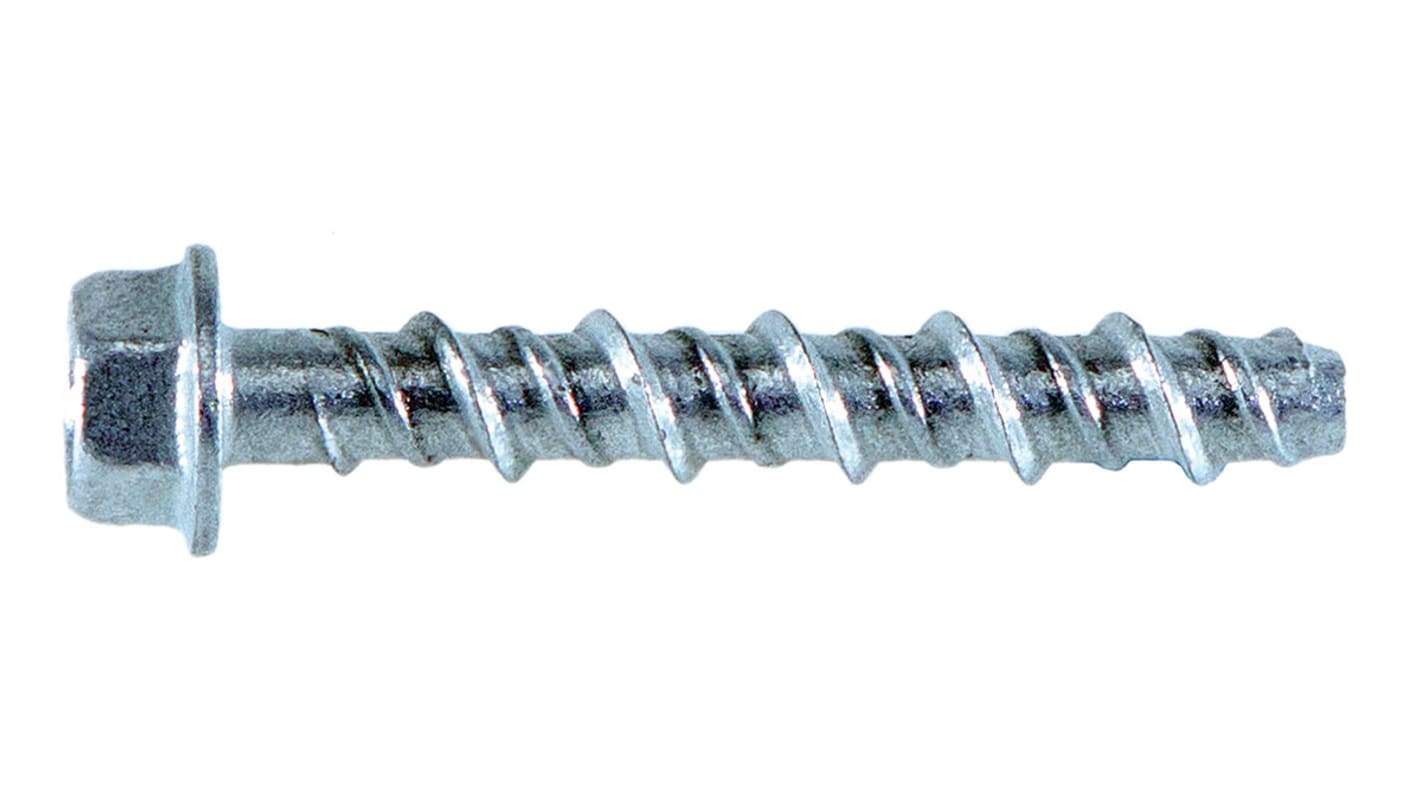

The Ankerbolt is a self tapping anchor for use in a variety of base materials. The undercutting action provides a positive anchorage with no expansion forces.The wide range of types and sizes gives flexibility of choosing the correct anchor according to the fixture thickness.
Undercutting Action
Fast And Secure Installation
Expansion Free
Through Fixing
High Performance
Mechanical Galvanised minimum 40μm
Fast And Secure Installation
Expansion Free
Through Fixing
High Performance
Mechanical Galvanised minimum 40μm
