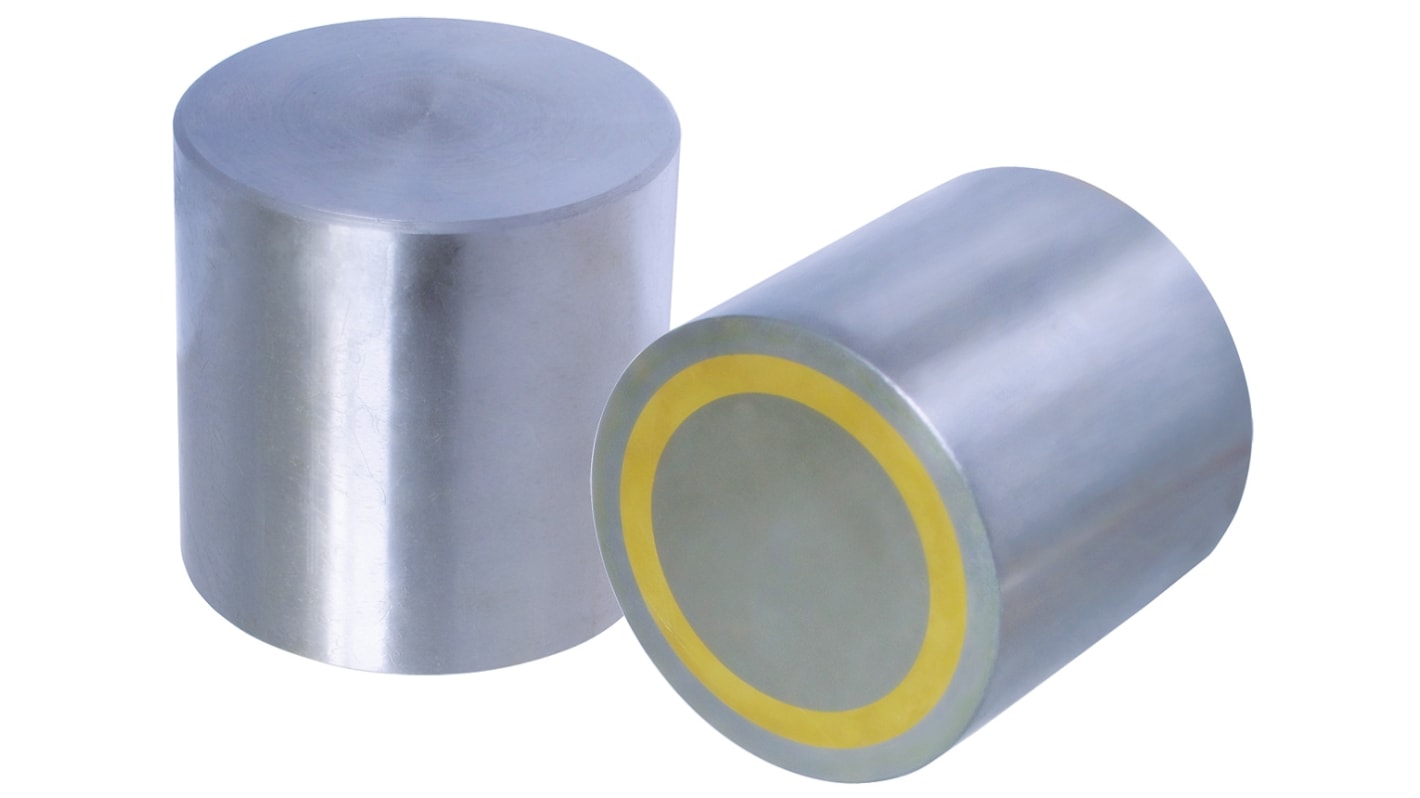

Eclipse Deep Pot Magnet 6mm Alnico, 0.2kg Pull
- RS Stock No.:
- 846-3806
- Mfr. Part No.:
- E730
- Brand:
- Eclipse
47 In stock - FREE next working day delivery available
Added
Price 1 Pair
£8.71
(exc. VAT)
£10.45
(inc. VAT)
| Pair(s) | Per Pair |
| 1 - 4 | £8.71 |
| 5 - 9 | £8.28 |
| 10 - 29 | £7.85 |
| 30 + | £7.32 |
- RS Stock No.:
- 846-3806
- Mfr. Part No.:
- E730
- Brand:
- Eclipse
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Alnico Deep Pot Magnets
Alnico magnets have the best temperature coefficients of any magnet material and the best choice in extremely high temperature applications.
Alnico 5 magnet material
Magnetically stable at high temperatures
Maximum operating temperature 220°C
Mild steel pot
Brass spacer
Zinc plated body
Diameter ground to H6 tolerance
Magnetically stable at high temperatures
Maximum operating temperature 220°C
Mild steel pot
Brass spacer
Zinc plated body
Diameter ground to H6 tolerance
Typical Applications
Very high temperature applications
Use in hot oils
Clamping
Motors and Generators
Mass spectrometers
Precision sensors and meters
Aerospace
Use in hot oils
Clamping
Motors and Generators
Mass spectrometers
Precision sensors and meters
Aerospace
Specifications
Attribute | Value |
|---|---|
| Magnet Type | Deep Pot |
| Width/Diameter | 6mm |
| Pull Force | 0.2kg |
| Attachment Type | None |
| Material | Alnico |
| Length | 10mm |
