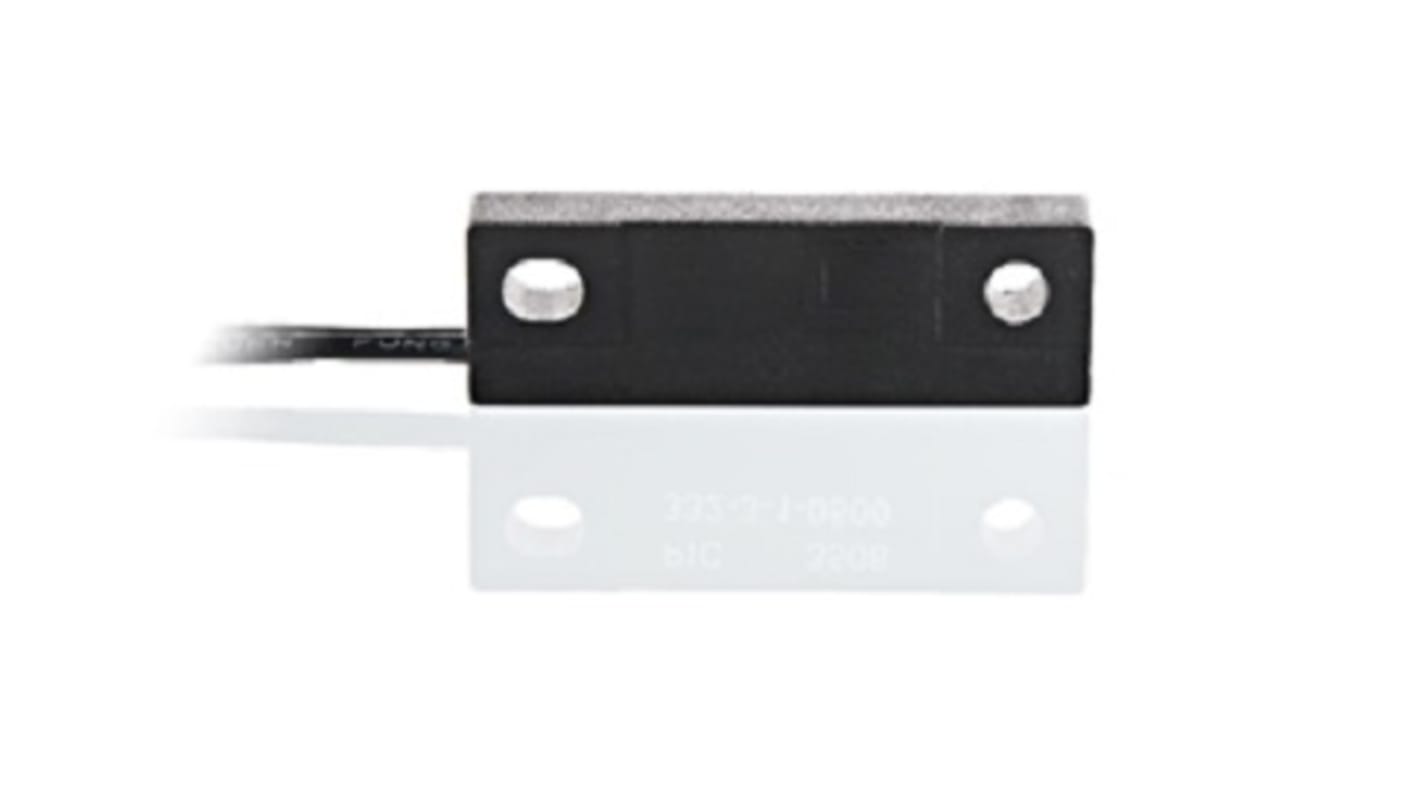

RS PRO Rectangular Magnetic Proximity Sensor, NO, 140V ac, 1.2A, IP67
- RS Stock No.:
- 289-2098
- Brand:
- RS PRO
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£4.11
(exc. VAT)
£4.93
(inc. VAT)
- RS Stock No.:
- 289-2098
- Brand:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Switch Shape | Rectangular | |
| Switch Type | Magnetic Reed Contact | |
| Normal State Configuration | NO | |
| Terminal Type | Wire Lead | |
| Maximum Current | 1.2A | |
| Maximum AC Voltage | 140V ac | |
| Maximum DC Voltage | 200V dc | |
| Switching Frequency | 500Hz | |
| Contact Resistance | 200mΩ | |
| Total Length | 532mm | |
| Length | 32mm | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -20°C | |
| Depth | 6mm | |
| Width | 10mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Switch Shape Rectangular | ||
Switch Type Magnetic Reed Contact | ||
Normal State Configuration NO | ||
Terminal Type Wire Lead | ||
Maximum Current 1.2A | ||
Maximum AC Voltage 140V ac | ||
Maximum DC Voltage 200V dc | ||
Switching Frequency 500Hz | ||
Contact Resistance 200mΩ | ||
Total Length 532mm | ||
Length 32mm | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -20°C | ||
Depth 6mm | ||
Width 10mm | ||
