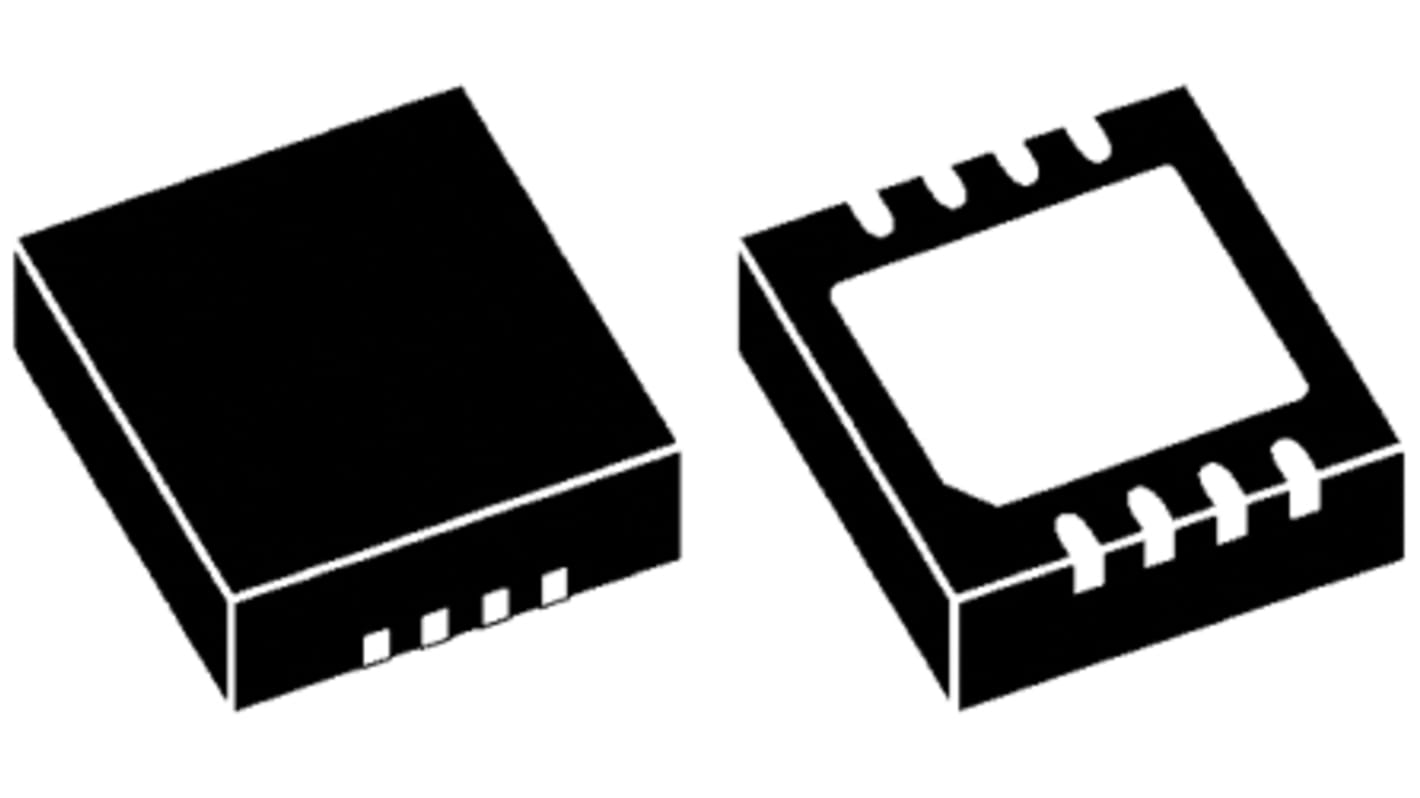

Microchip MIC5399-SMYMX-T5, Dual LDO Voltage Regulator, 300mA, 2.8 V, 3.3 V, ±3% 8-Pin, XTDFN
- RS Stock No.:
- 911-3300
- Mfr. Part No.:
- MIC5399-SMYMX-T5
- Brand:
- Microchip
Discontinued
- RS Stock No.:
- 911-3300
- Mfr. Part No.:
- MIC5399-SMYMX-T5
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Maximum Output Current | 300mA | |
| Number of Outputs | 2 | |
| Output Voltage | 2.8 V, 3.3 V | |
| Line Regulation | 0.3 %/V | |
| Load Regulation | 40 mV | |
| Accuracy | ±3% | |
| Mounting Type | Surface Mount | |
| Quiescent Current | 37µA | |
| Package Type | XTDFN | |
| Pin Count | 8 | |
| Output Type | Fixed | |
| Dimensions | 1.6 x 1.2 x 0.35mm | |
| Minimum Input Voltage | 2.5 V | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +125 °C | |
| Height | 0.35mm | |
| Maximum Input Voltage | 5.5 V | |
| Width | 1.2mm | |
| Length | 1.6mm | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Maximum Output Current 300mA | ||
Number of Outputs 2 | ||
Output Voltage 2.8 V, 3.3 V | ||
Line Regulation 0.3 %/V | ||
Load Regulation 40 mV | ||
Accuracy ±3% | ||
Mounting Type Surface Mount | ||
Quiescent Current 37µA | ||
Package Type XTDFN | ||
Pin Count 8 | ||
Output Type Fixed | ||
Dimensions 1.6 x 1.2 x 0.35mm | ||
Minimum Input Voltage 2.5 V | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +125 °C | ||
Height 0.35mm | ||
Maximum Input Voltage 5.5 V | ||
Width 1.2mm | ||
Length 1.6mm | ||
