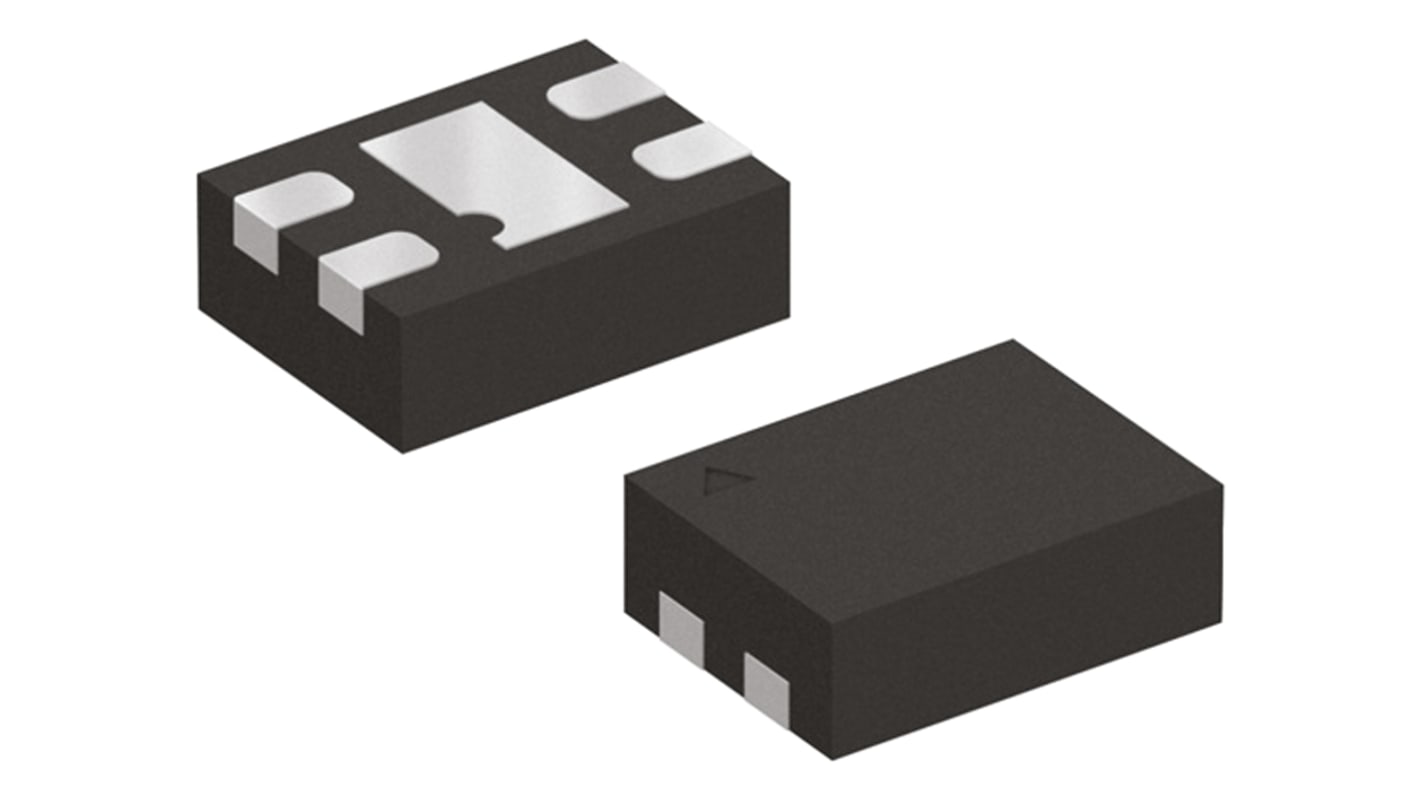

Micrel MIC94310-4YMT T5, LDO Voltage Regulator, 200mA, -0.3 → 4 V 4-Pin, MLF
- RS Stock No.:
- 759-5439
- Mfr. Part No.:
- MIC94310-4YMT T5
- Brand:
- Micrel
Discontinued
- RS Stock No.:
- 759-5439
- Mfr. Part No.:
- MIC94310-4YMT T5
- Brand:
- Micrel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Micrel | |
| Maximum Output Current | 200mA | |
| Number of Outputs | 1 | |
| Output Voltage | -0.3 → 4 V | |
| Line Regulation | 0.5 % | |
| Load Regulation | 4 mV | |
| Mounting Type | Surface Mount | |
| Package Type | MLF | |
| Quiescent Current | 0.0002mA | |
| Reference Voltage | 1.2V | |
| Pin Count | 4 | |
| Output Type | Fixed | |
| Dimensions | 1.6 x 1.2 x 0.55mm | |
| Maximum Operating Temperature | +125 °C | |
| Minimum Input Voltage | 1.8 V | |
| Maximum Input Voltage | 3.6 V | |
| Height | 0.55mm | |
| Minimum Operating Temperature | -40 °C | |
| Length | 1.6mm | |
| Width | 1.2mm | |
| Select all | ||
|---|---|---|
Brand Micrel | ||
Maximum Output Current 200mA | ||
Number of Outputs 1 | ||
Output Voltage -0.3 → 4 V | ||
Line Regulation 0.5 % | ||
Load Regulation 4 mV | ||
Mounting Type Surface Mount | ||
Package Type MLF | ||
Quiescent Current 0.0002mA | ||
Reference Voltage 1.2V | ||
Pin Count 4 | ||
Output Type Fixed | ||
Dimensions 1.6 x 1.2 x 0.55mm | ||
Maximum Operating Temperature +125 °C | ||
Minimum Input Voltage 1.8 V | ||
Maximum Input Voltage 3.6 V | ||
Height 0.55mm | ||
Minimum Operating Temperature -40 °C | ||
Length 1.6mm | ||
Width 1.2mm | ||
MIC94310 1.8A Low Dropout Voltage Regulator
The Microchip MIC94310 200mA ripple blocker is a monolithic integrated circuit that provides low-frequency ripple attenuation (switching noise rejection) to a regulated output voltage. It operates on 1.8V to 3.6V voltage range. This blocker maintains high power supply ripple rejection (PSRR) with input voltages operating near the output voltage level to improve overall system efficiency. A low-voltage logic enable pin facilitates ON/OFF control at typical GPIO voltage levels.
Active noise rejection over a wide frequency band less than 50dB from 10Hz to 10MHz at 200mA load
Rated to 200mA output current
Fixed output voltage of 1.2V
Current-limit and thermal-limit protected
Logic-controlled enable pin
Temperature range between –40°C and +125°C
4-Lead 1.2 mm ´ 1.6 mm Thin DFN package
Rated to 200mA output current
Fixed output voltage of 1.2V
Current-limit and thermal-limit protected
Logic-controlled enable pin
Temperature range between –40°C and +125°C
4-Lead 1.2 mm ´ 1.6 mm Thin DFN package
LDO (Low Dropout) Linear Voltage Regulators, Microchip
