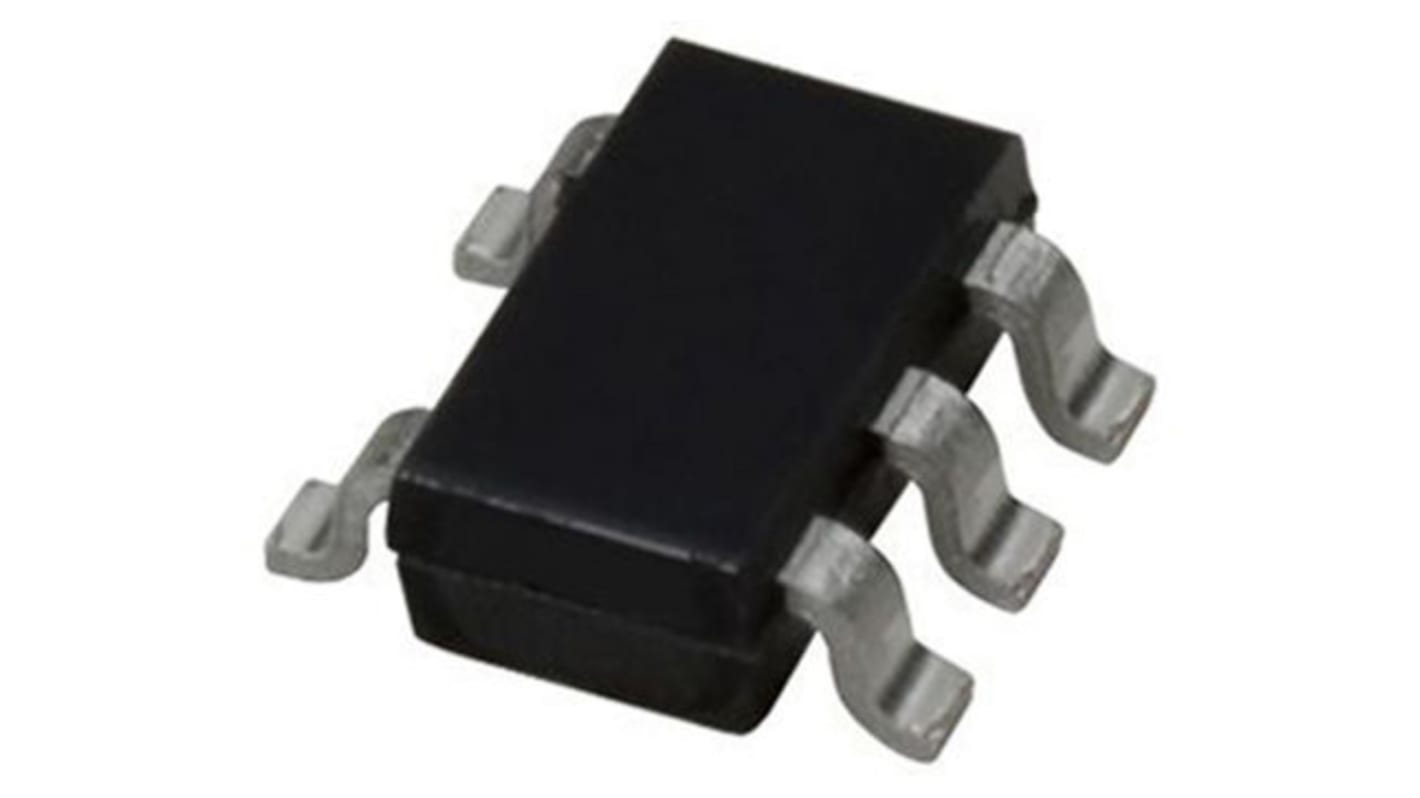

DiodesZetex 74AHCT1G08SE-7 2-Input AND Schmitt Trigger Logic Gate, 5-Pin SOT-353
- RS Stock No.:
- 822-8681P
- Mfr. Part No.:
- 74AHCT1G08SE-7
- Brand:
- DiodesZetex
Bulk discount available
Subtotal 500 units (supplied on a reel)*
£20.50
(exc. VAT)
£24.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 900 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 500 - 1400 | £0.041 |
| 1500 - 2900 | £0.033 |
| 3000 - 5900 | £0.028 |
| 6000 + | £0.025 |
*price indicative
- RS Stock No.:
- 822-8681P
- Mfr. Part No.:
- 74AHCT1G08SE-7
- Brand:
- DiodesZetex
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Logic Function | AND | |
| Mounting Type | Surface Mount | |
| Number of Elements | 1 | |
| Number of Inputs per Gate | 2 | |
| Schmitt Trigger Input | Yes | |
| Package Type | SOT-353 | |
| Pin Count | 5 | |
| Logic Family | AHCT | |
| Input Type | Schmitt Trigger | |
| Maximum Operating Supply Voltage | 5.5 V | |
| Maximum High Level Output Current | -8mA | |
| Minimum Operating Supply Voltage | 4.5 V | |
| Maximum Low Level Output Current | 8mA | |
| Maximum Operating Temperature | +125 °C | |
| Output Type | Totem Pole | |
| Minimum Operating Temperature | -40 °C | |
| Dimensions | 2.2 x 1.35 x 1mm | |
| Width | 1.35mm | |
| Height | 5.5mm | |
| Length | 2.2mm | |
Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Logic Function AND | ||
Mounting Type Surface Mount | ||
Number of Elements 1 | ||
Number of Inputs per Gate 2 | ||
Schmitt Trigger Input Yes | ||
Package Type SOT-353 | ||
Pin Count 5 | ||
Logic Family AHCT | ||
Input Type Schmitt Trigger | ||
Maximum Operating Supply Voltage 5.5 V | ||
Maximum High Level Output Current -8mA | ||
Minimum Operating Supply Voltage 4.5 V | ||
Maximum Low Level Output Current 8mA | ||
Maximum Operating Temperature +125 °C | ||
Output Type Totem Pole | ||
Minimum Operating Temperature -40 °C | ||
Dimensions 2.2 x 1.35 x 1mm | ||
Width 1.35mm | ||
Height 5.5mm | ||
Length 2.2mm | ||
