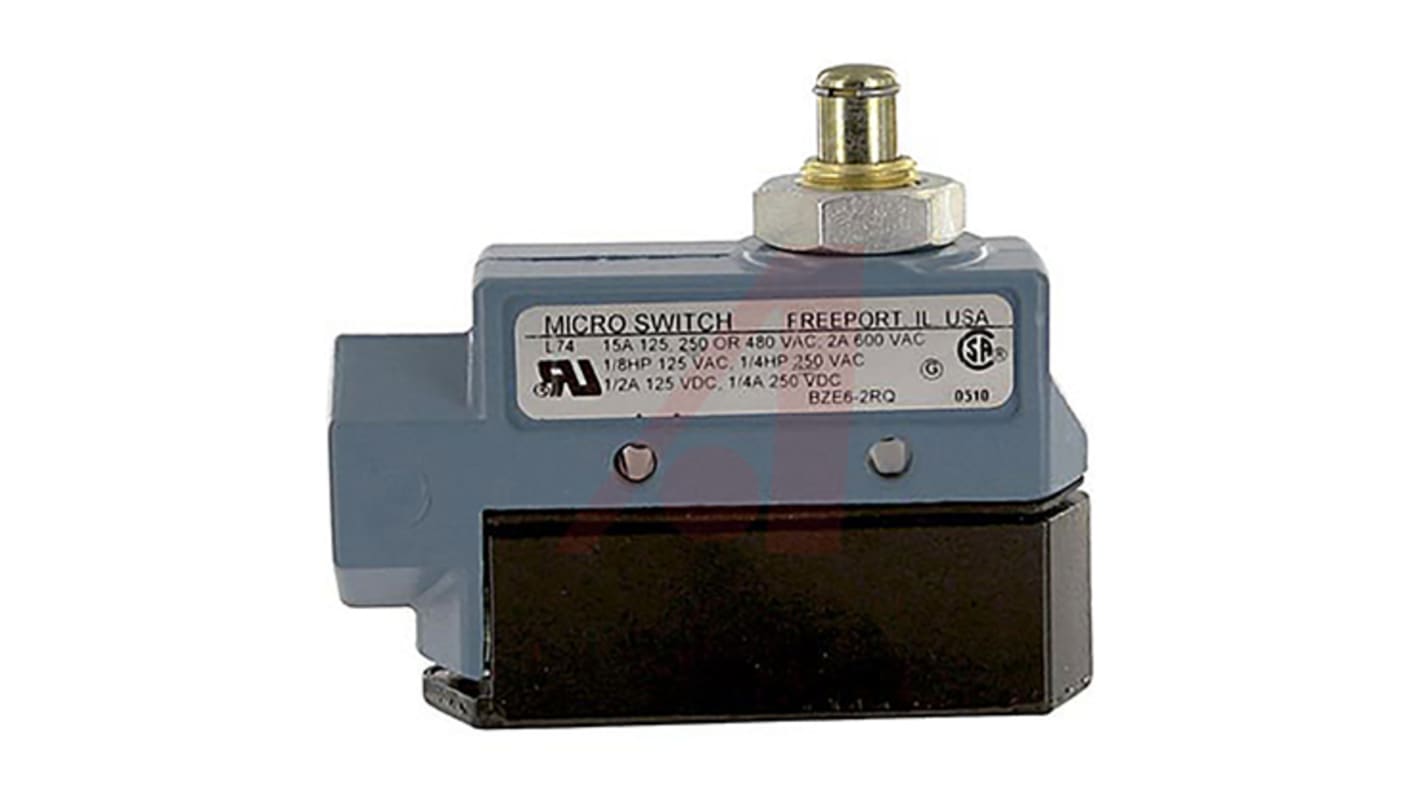

Honeywell BZE6 Series Plunger Limit Switch, NO/NC, IP40, SPDT, Die Cast Zinc Housing, 600V ac Max, 15A Max
- RS Stock No.:
- 808-2808
- Mfr. Part No.:
- BZE6-2RQ
- Brand:
- Honeywell
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 808-2808
- Mfr. Part No.:
- BZE6-2RQ
- Brand:
- Honeywell
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Actuator Type | Plunger | |
| Pole and Throw Configuration | SPDT | |
| Normal State Configuration | NO/NC | |
| IP Rating | IP40 | |
| Maximum Current | 15A | |
| Housing Material | Die Cast Zinc | |
| Maximum AC Voltage | 600V | |
| Maximum DC Voltage | 250V | |
| Connection Type | 1/2 in NPT | |
| Series | BZE6 | |
| Action Type | Snap Action | |
| Length | 25.4mm | |
| Width | 44.4mm | |
| Maximum Operating Temperature | +71°C | |
| Minimum Operating Temperature | -32°C | |
| Depth | 77.2mm | |
| Mounting Orientation | Side | |
Select all | ||
|---|---|---|
Brand Honeywell | ||
Actuator Type Plunger | ||
Pole and Throw Configuration SPDT | ||
Normal State Configuration NO/NC | ||
IP Rating IP40 | ||
Maximum Current 15A | ||
Housing Material Die Cast Zinc | ||
Maximum AC Voltage 600V | ||
Maximum DC Voltage 250V | ||
Connection Type 1/2 in NPT | ||
Series BZE6 | ||
Action Type Snap Action | ||
Length 25.4mm | ||
Width 44.4mm | ||
Maximum Operating Temperature +71°C | ||
Minimum Operating Temperature -32°C | ||
Depth 77.2mm | ||
Mounting Orientation Side | ||
- COO (Country of Origin):
- US
BZE6 Enclosed Limit Switches
The BZE6 series from Honeywell provides a range of metal housed limit switches with enhanced precision operation and robust actuation. The BZE6 limit switches allow for easy wiring by featuring a large wiring enclosure, the BZE6 range are all side mountable.
BZE6 series featuring side mounting
Die-cast zinc housing for robustness and durability
Wide temperature operating range
Die-cast zinc housing for robustness and durability
Wide temperature operating range
Approvals
UL, CSA.
