Honeywell Technologies GSS Series Plunger Limit Switch, SPST, IP67, Metal Housing, 600V ac, 6A
- RS Stock No.:
- 258-8091
- Distrelec Article No.:
- 301-38-780
- Mfr. Part No.:
- GSAC01C
- Brand:
- Honeywell
Subtotal (1 unit)*
£231.82
(exc. VAT)
£278.18
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 75 unit(s) shipping from 30 October 2026
- Plus 77 unit(s) shipping from 23 November 2026
- Plus 25 unit(s) shipping from 07 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £231.82 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£322.70
(exc. VAT)
£387.24
(inc. VAT)
- RS Stock No.:
- 258-8091
- Distrelec Article No.:
- 301-38-780
- Mfr. Part No.:
- GSAC01C
- Brand:
- Honeywell
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Product Type | Limit Switch | |
| Actuator Type | Plunger | |
| IP Rating | IP67 | |
| Contact Configuration | SPST | |
| Housing Material | Metal | |
| Contact Type | Snap Action | |
| Switching Current | 6A | |
| Terminal Type | Screw | |
| Series | GSS | |
| Switching DC Voltage | 250V dc | |
| Minimum Operating Temperature | -25°C | |
| Switching AC Voltage | 600V ac | |
| Maximum Operating Temperature | 85°C | |
| Width | 42mm | |
| Length | 141mm | |
| Depth | 42mm | |
| Standards/Approvals | BG, CE, CSA, UL | |
| Hazardous Area Certification | No | |
| Operating Force | 9.7N | |
| Mechanical Life | 15000000Cycles | |
| Conduit Entry | M20 x 1.5 | |
| Select all | ||
|---|---|---|
Brand Honeywell | ||
Product Type Limit Switch | ||
Actuator Type Plunger | ||
IP Rating IP67 | ||
Contact Configuration SPST | ||
Housing Material Metal | ||
Contact Type Snap Action | ||
Switching Current 6A | ||
Terminal Type Screw | ||
Series GSS | ||
Switching DC Voltage 250V dc | ||
Minimum Operating Temperature -25°C | ||
Switching AC Voltage 600V ac | ||
Maximum Operating Temperature 85°C | ||
Width 42mm | ||
Length 141mm | ||
Depth 42mm | ||
Standards/Approvals BG, CE, CSA, UL | ||
Hazardous Area Certification No | ||
Operating Force 9.7N | ||
Mechanical Life 15000000Cycles | ||
Conduit Entry M20 x 1.5 | ||
- COO (Country of Origin):
- GB

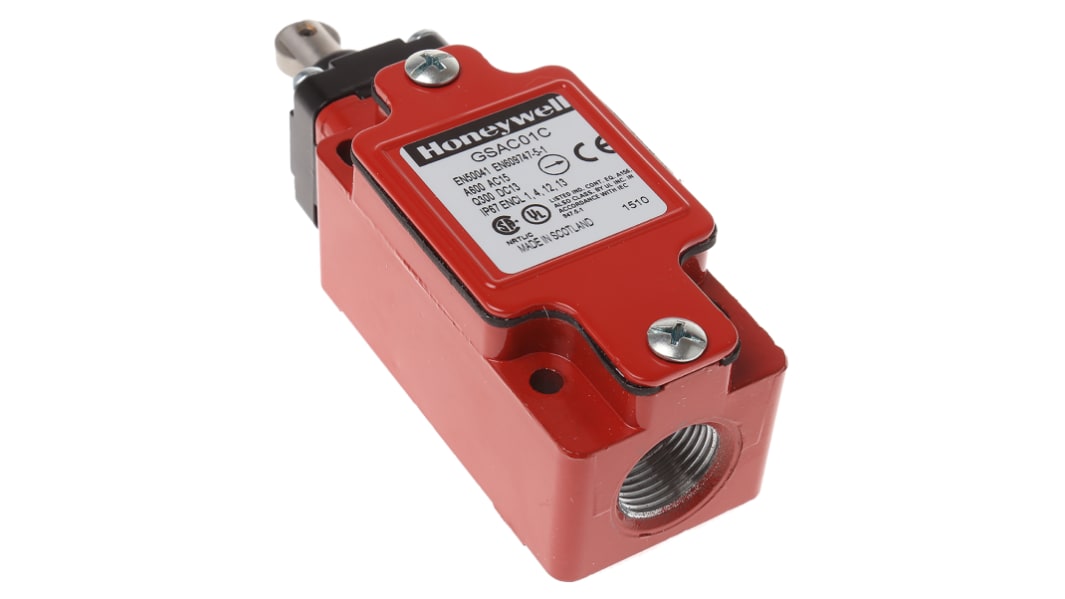

Honeywell GSS Series Limit Switch, IP67, 9.7N Operating Force - GSAC01C
This limit switch is a plunger-actuated device designed for position detection and control in industrial systems. Housed in a metal enclosure with ingress protection, it operates across a wide ambient temperature range and interfaces via threaded conduit entry for integration into control installations.
Features and Benefits:
• Snap-action contacts provide Rapid state change for precise control
• SPST configuration simplifies Basic on/off signalling requirements
• Screw terminals enable secure wiring connections for maintenance ease
• Rated switching at 600V AC supports high-voltage control circuits
• Mechanical endurance of 15,000,000 cycles delivers long service intervals
• Operating force of 9.7 N ensures consistent actuation responsiveness
• SPST configuration simplifies Basic on/off signalling requirements
• Screw terminals enable secure wiring connections for maintenance ease
• Rated switching at 600V AC supports high-voltage control circuits
• Mechanical endurance of 15,000,000 cycles delivers long service intervals
• Operating force of 9.7 N ensures consistent actuation responsiveness
Applications
• Suitable for end-of-travel sensing on automated conveyors
• Ideal for position feedback on industrial presses and lifts
• Used with motor starters in factory control panels
• Can be used for safety interlocks on machine guards
• Ideal for position feedback on industrial presses and lifts
• Used with motor starters in factory control panels
• Can be used for safety interlocks on machine guards
What electrical load capabilities can I expect when switching DC circuits?
The switch is rated to switch 250V DC at up to 6 A, permitting use with moderate DC control loads and relay coils within that envelope.
How does the unit cope with harsh environmental exposure?
The metal enclosure carries an IP67 rating, protecting internal components from dust ingress and temporary immersion in water.
What connection format is provided for conduit and cable entry?
A threaded conduit entry of M20x1.5 is supplied for standard industrial conduit fittings and glands.
What temperature extremes can the switch reliably operate within?
It is specified to function between -25°C and 85°C, allowing use in cold stores and warm industrial spaces.
What approvals support compliance with industrial safety and performance standards?
It holds BG, CE, CSA and UL approvals relevant to electrical and safety requirements.
