Siemens Electrode Level Probe, Horizontal
- RS Stock No.:
- 463-5470
- Mfr. Part No.:
- 3UG3207-2B
- Brand:
- Siemens
Image representative of range
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 463-5470
- Mfr. Part No.:
- 3UG3207-2B
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Device Type | Electrode | |
| Mounting Type | Horizontal | |
| Cable Length | 2m | |
| Maximum Operating Temperature | +90°C | |
| Maximum Pressure | 10bar | |
| Gasket Material | PTFE | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Device Type Electrode | ||
Mounting Type Horizontal | ||
Cable Length 2m | ||
Maximum Operating Temperature +90°C | ||
Maximum Pressure 10bar | ||
Gasket Material PTFE | ||
Siemens Level Probe

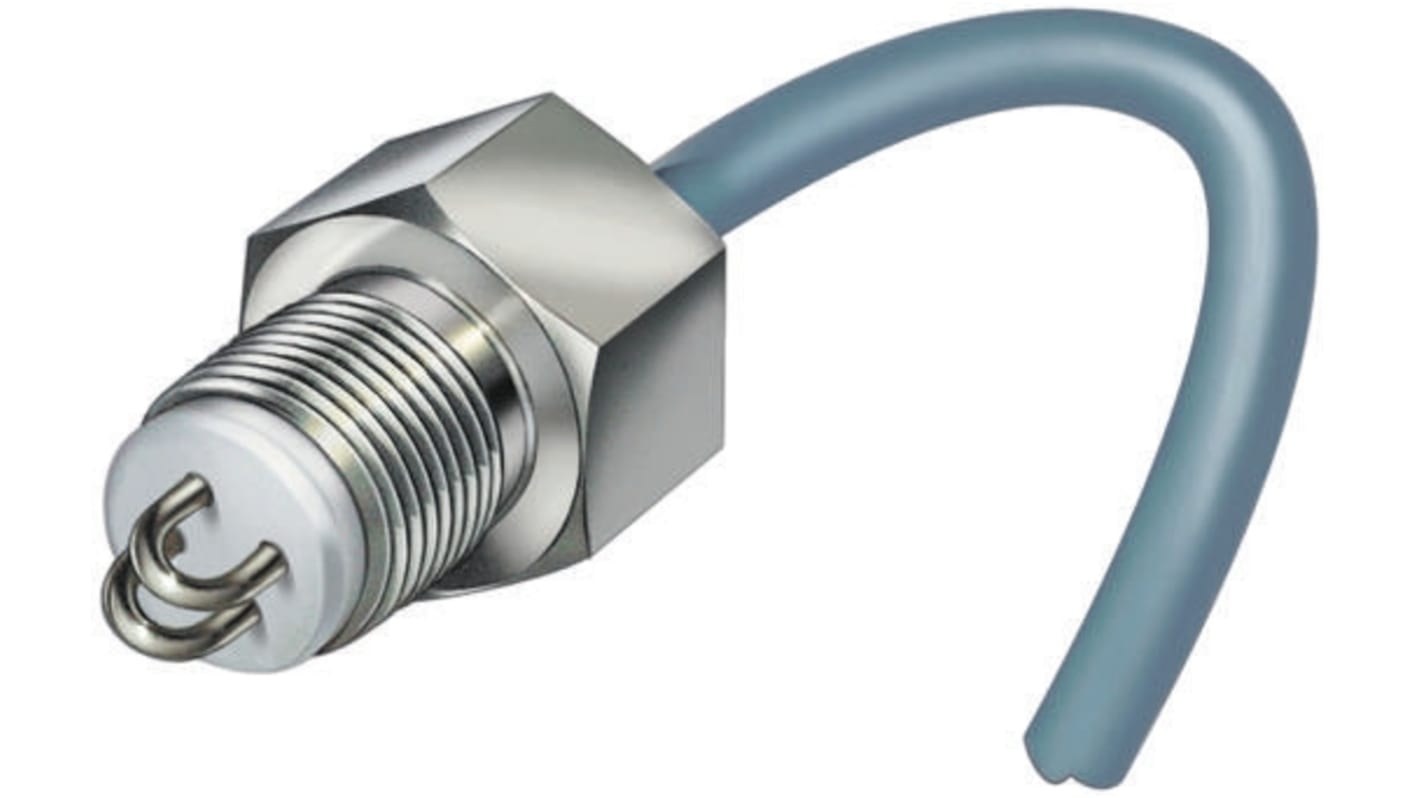

Siemens horizontal mounting level probe is a 2-pole, bow electrode for lateral installation and level monitoring.
Features and Benefits
Screw-in adapter wrench size 22
3/8in thread
connection
Connection cable PVC 3 x 0.5mm2
Cable length is 2m long
Maximum operating temperature is 90°C
Operating pressure 10bar maximum
3/8in thread
connection
Connection cable PVC 3 x 0.5mm2
Cable length is 2m long
Maximum operating temperature is 90°C
Operating pressure 10bar maximum
Certifications
CCC certified
EAC certified
CE certified
EAC certified
CE certified
