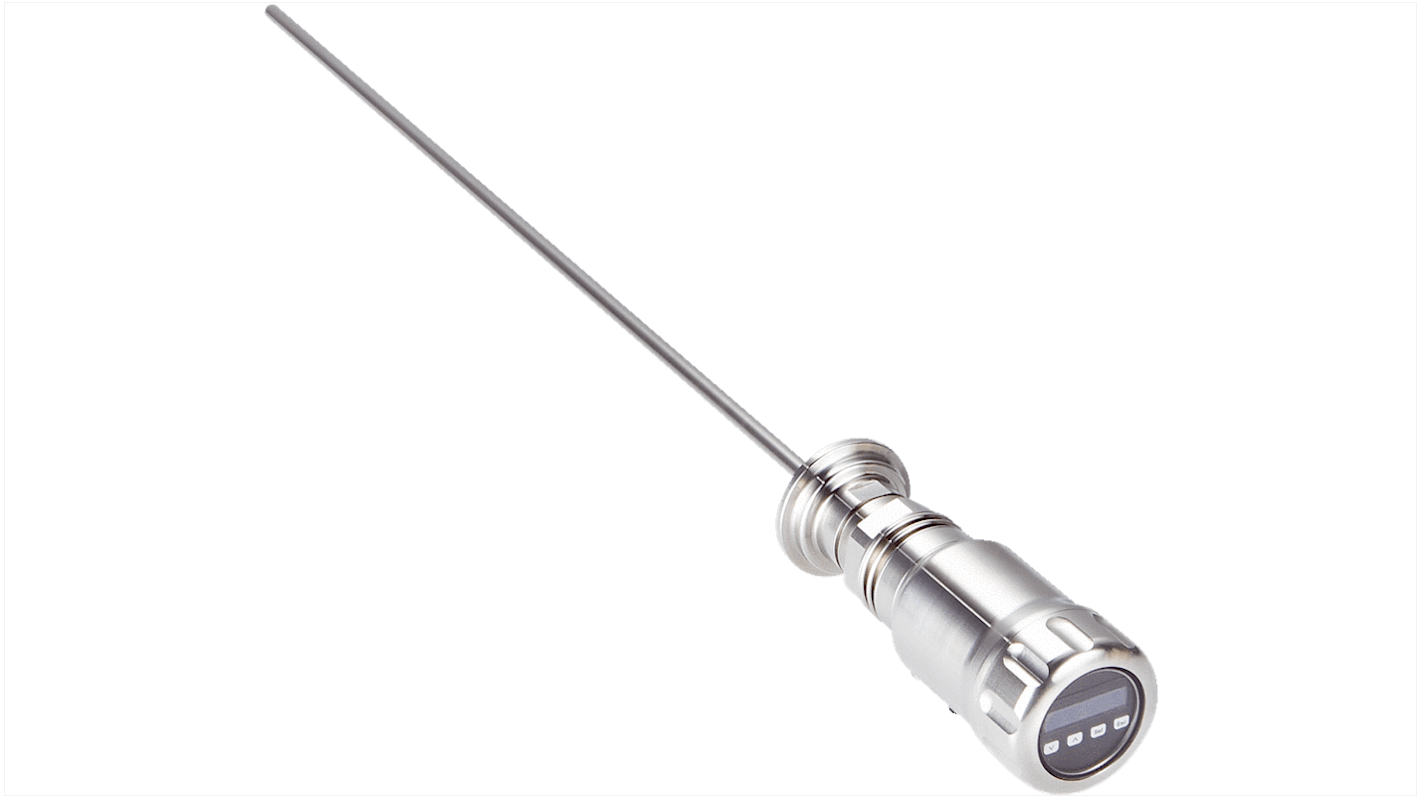

The LFP Inox is a hygienic level sensor for liquids using TDR technology – a process for determining the time of flight of electromagnetic waves. The time difference between the sent pulse and the reflected pulse is used to generate a level signal, both as a continuous value (analogue output) and a freely positionable switching point (switching output). The use of FDA-compliant materials in an EHEDG-certified design means that the LFP Inox can be relied upon for optimum and unrestricted cleaning, even in applications with the most stringent hygiene requirements. Its modular connection system allows simple and flexible installation in any application.

Thanks to high temperature and pressure resistance, unrestricted use is possible under CIP and SIP conditions. This impressive profile is topped off with communication capability via IO-Link to the superordinate control units.

Level measurement in hygienic applications
Rod probe can be cut to length manually up to 4,000 mm long with Ra ≤ 0.8 μm (optionally with Ra ≤ 0.4 μm)
Process temperature up to 180 °C, process pressure up to 16 bar
CIP/SIP-resistant
High enclosure rating: IP 67 and IP 69, autoclavable
Interchangeable hygienic process connections
3 in 1: combines display, analogue output, and binary output
Remote amplifier with process connection
IO-Link 1.1

Rugged design increases service life
High flexibility – rod probe can be cut to length and connection concept is interchangeable
Cost savings as a result of multiple output signals: one system for both point level and continuous level measurement
Maintenance-free and easy to commission without calibration, saving time and money
Remote display of measured values and saves space

Fields of applications
Level monitoring in buffer tanks of filling systems and filling machines
Level monitoring in rinsing systems
Level monitoring in CIP systems
Level measurement in mixing systems in the cosmetics and pharmaceuticals industry
Level mon
