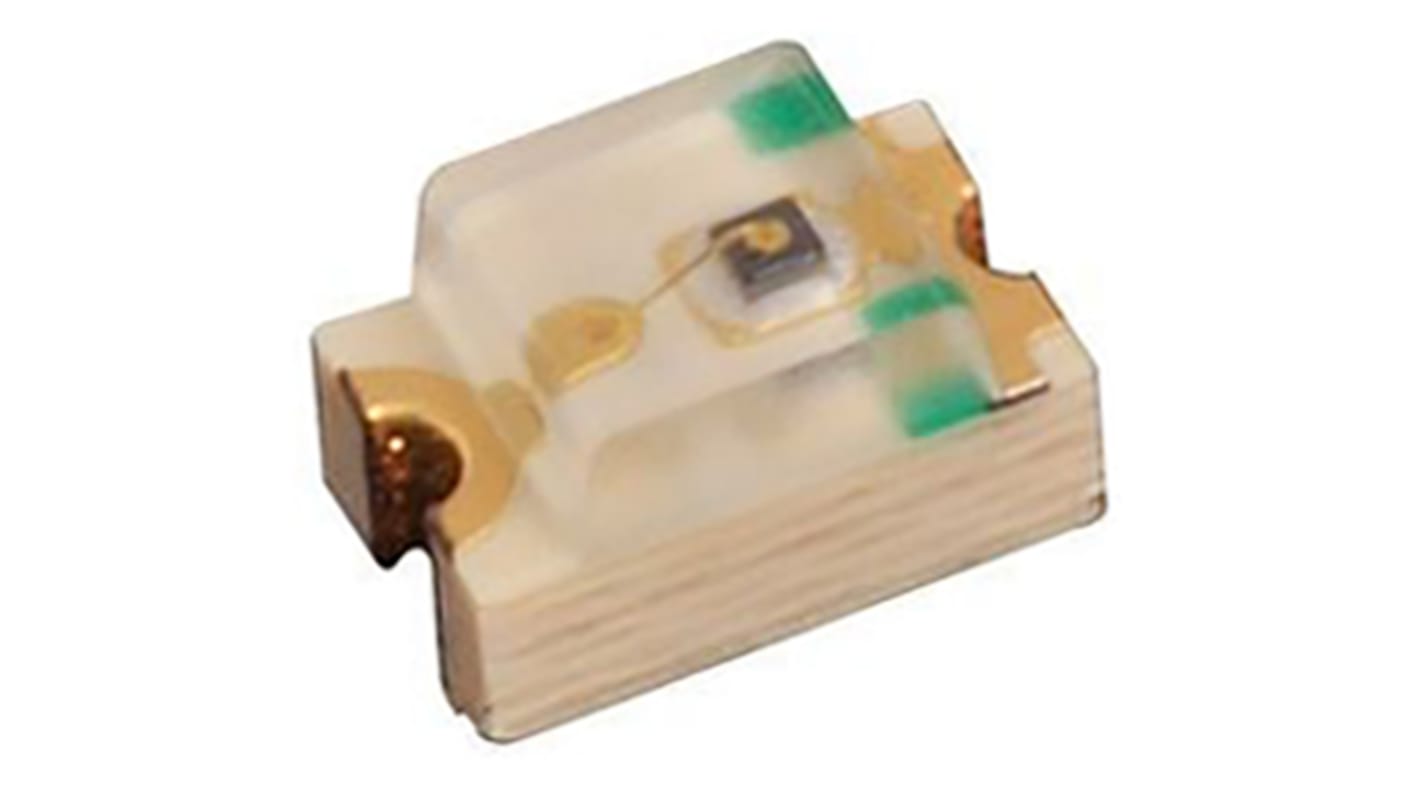

Lumex2.8 V Red LED 2012 (0805) SMD, SML-LX0805IC-TR
- RS Stock No.:
- 888-6039
- Mfr. Part No.:
- SML-LX0805IC-TR
- Brand:
- Lumex
Discontinued
- RS Stock No.:
- 888-6039
- Mfr. Part No.:
- SML-LX0805IC-TR
- Brand:
- Lumex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lumex | |
| LED Colours | Red | |
| Package Type | 2012 (0805) | |
| Mounting Type | Surface Mount | |
| Number of LEDs | 1 | |
| Forward Voltage | 2.8 V | |
| Luminous Intensity | 9 mcd | |
| Viewing Angle | 140 ° | |
| Lens Shape | Rectangle | |
| Dominant Wavelength | 635 nm | |
| Lens Finish | Clear | |
| Forward Current | 20mA | |
| Dimensions | 2 x 1.25 x 1.1mm | |
| Lens Colour | Clear | |
| Select all | ||
|---|---|---|
Brand Lumex | ||
LED Colours Red | ||
Package Type 2012 (0805) | ||
Mounting Type Surface Mount | ||
Number of LEDs 1 | ||
Forward Voltage 2.8 V | ||
Luminous Intensity 9 mcd | ||
Viewing Angle 140 ° | ||
Lens Shape Rectangle | ||
Dominant Wavelength 635 nm | ||
Lens Finish Clear | ||
Forward Current 20mA | ||
Dimensions 2 x 1.25 x 1.1mm | ||
Lens Colour Clear | ||
- COO (Country of Origin):
- TW
OctoLED Range 0805
The Lumex range of OctoLEDs have been professionally designed to combine SMT convenience with through-hole T-5 mm LED size features. The economical and highly reliable series of LEDs and accessories features High Brightness Chip Technology and is available in a wide range of colours and lens finishes.
High Brightness Chip Technology
Wide range of colours and lens finishes
Easy installation
LED size 0805
Wide range of colours and lens finishes
Easy installation
LED size 0805
Visible Light LEDs, Lumex
