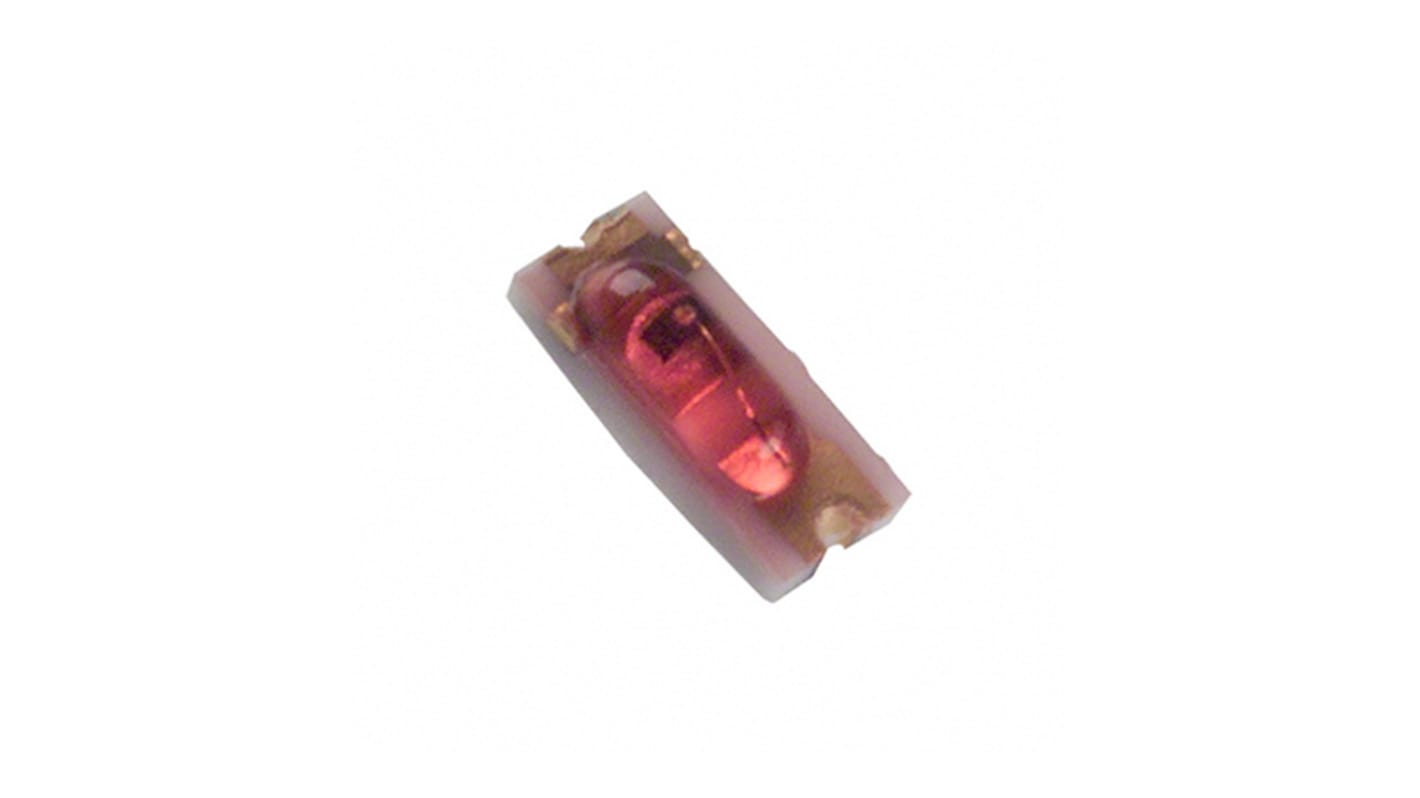

Lumex2.1 V Red LED 2012 (0805) SMD, CCL-LX45SRT

View all LEDs
Discontinued
RS Stock No.:
888-5616
Mfr. Part No.:
CCL-LX45SRT
Brand:
Lumex
Find similar products by selecting one or more attributes.
Select all

Brand

Lumex

LED Colours

Red

Package Type

2012 (0805)

Mounting Type

Surface Mount

Number of LEDs

1

Forward Voltage

2.1 V

Luminous Intensity

8 mcd

Number of Pins

2

Viewing Angle

180 °

Lens Shape

Round

Dominant Wavelength

600 nm

Forward Current

800mA

Lens Finish

Clear

Lens Colour

Clear

Dimensions

3.2 x 1.27 x 1.2mm

COO (Country of Origin):
DE

CCL-LX45 0805 SMT QuasarBrite™ LEDs


The Lumex QuasarBrite™ range of LED’s have been designed to offer a high level of brightness yet maintain a slimmer footprint making them ideally suited to space restricted applications. They are also extremely efficient with no loss in performance. A lot of emphasis has been placed on reducing complications when designing board layout and mounting these items with less drilling and fewer plate holes required for these LED’s.

Potential Applications:
Industrial controls
Medical equipment
Communications equipment
Test and measurement
Security electronics

Superior heat dissipation
Choice of colours and lens finishes
Lead frame/lens casting reliability
Easy-to-solder leads


Visible Light LEDs, Lumex
