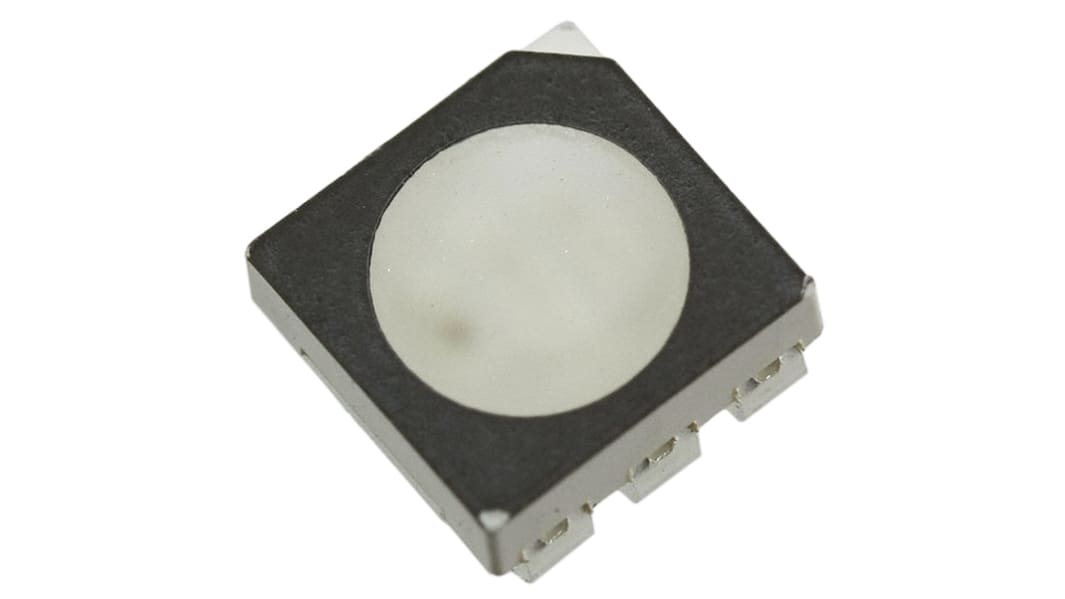

2.6 V, 4 V RGB LED PLCC 6 SMD, Cree CLP6C-FKB-CK1P1G1BB7R3R3

  • RS Stock No. 667-5483
  • Mfr. Part No. CLP6C-FKB-CK1P1G1BB7R3R3
  • Brand Cree
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Cree CLP6 Series LEDs

The CLP6 series of SMD LEDs, from Cree, are packaged in the industry standard PLCC6 package. These LEDs have high reliability and are designed to work under a wide range of environmental conditions. This high reliability feature of the CLP6 series makes them ideally suited to be used under illumination application conditions. Possible applications include channel letter or general backlighting and illumination applications. The flat top emitting surface allows for the CLP6 LEDs to be combined easily with light pipes.

Industry standard PLCC6 package
Size: 6.0 x 5.0mm
Viewing angle: 120°

Visible Light LEDs, Cree Inc

Specifications
Attribute Value
LED Colours RGB
Package Type PLCC 6
Mounting Type Surface Mount
Number of LEDs 3
Forward Voltage 2.6 V, 4 V
Luminous Intensity 560 mcd, 1120 mcd, 2240 mcd
Number of Pins 6
Viewing Angle 120 °
Lens Shape Round
Dominant Wavelength 480 / 540 / 624 nm
Dimensions 6 x 5 x 2.5mm
Lens Colour Clear
315 In stock for FREE next working day delivery
Price Each (In a Pack of 5)
£ 0.43
(exc. VAT)
£ 0.52
(inc. VAT)
Units
Per unit
Per Pack*
5 - 40
£0.43
£2.15
45 - 220
£0.40
£2.00
225 - 445
£0.358
£1.79
450 +
£0.34
£1.70
*price indicative
