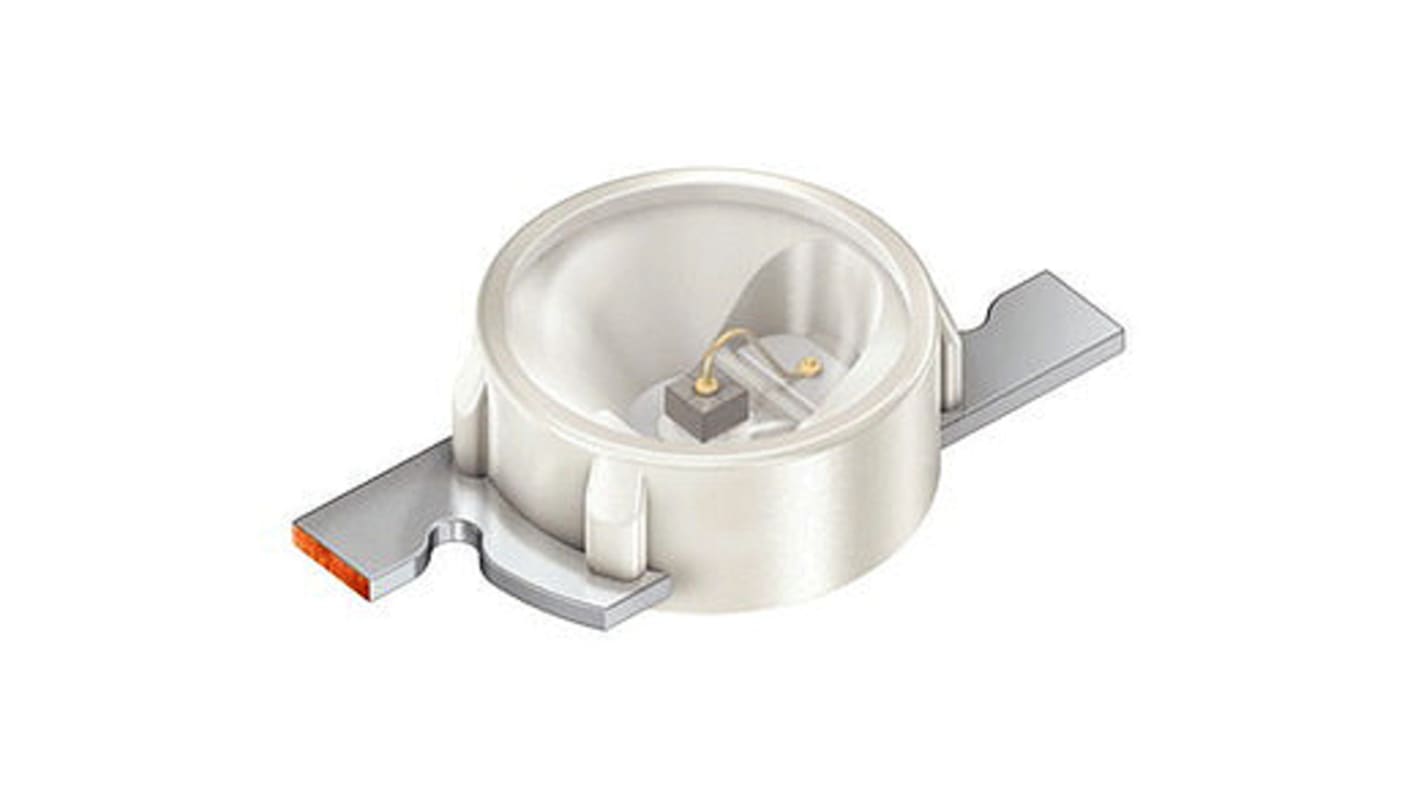

ams OSRAM2.2 V Red LED SMD, PointLED LR P47F-U2AB-1-1
- RS Stock No.:
- 665-5120
- Mfr. Part No.:
- LR P47F-U2AB-1-1
- Brand:
- ams OSRAM
1950 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 25)
£0.56
(exc. VAT)
£0.67
(inc. VAT)
| Units | Per unit | Per Pack* |
| 25 - 225 | £0.56 | £14.00 |
| 250 - 600 | £0.544 | £13.60 |
| 625 - 1225 | £0.53 | £13.25 |
| 1250 - 2475 | £0.516 | £12.90 |
| 2500 + | £0.504 | £12.60 |
| *price indicative | ||
- RS Stock No.:
- 665-5120
- Mfr. Part No.:
- LR P47F-U2AB-1-1
- Brand:
- ams OSRAM
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
OSRAM PointLED Series LEDs
The POINTLED series of LEDs, from Osram Opto Semiconductors, has a diameter of only 2mm so fits easily into a simple drill hole to sit flat against the PCB. Featuring a symmetrical radiation pattern, these versatile LEDs are ideal for applications such as: keypad illumination, display backlighting, coupling to light guides or automotive interior lighting.
2mm diameter package size
Viewing angle 120°
Reverse through-hole mount ideal for flat backlight (stock no. 654-6164 is Top mount)
Viewing angle 120°
Reverse through-hole mount ideal for flat backlight (stock no. 654-6164 is Top mount)
Note
Amber LEDs – Originally designed for use in automotive brake-light applications, OSRAM amber LEDs can appear red due to a high dominant wavelength value. Refer to a dominant wavelength colour chart to find your chosen LED colour.
Specifications
Attribute | Value |
|---|---|
| LED Colours | Red |
| Mounting Type | Surface Mount |
| Number of LEDs | 1 |
| Forward Voltage | 2.2 V |
| Luminous Intensity | 1255 mcd |
| Number of Pins | 2 |
| Viewing Angle | 120 ° |
| Luminous Flux | 3.36 lm |
| Lens Shape | Round |
| Dominant Wavelength | 625 nm |
| Lens Colour | Clear |
| Series | PointLED |
| Dimensions | 2 x 1.9 x 0.88mm |
