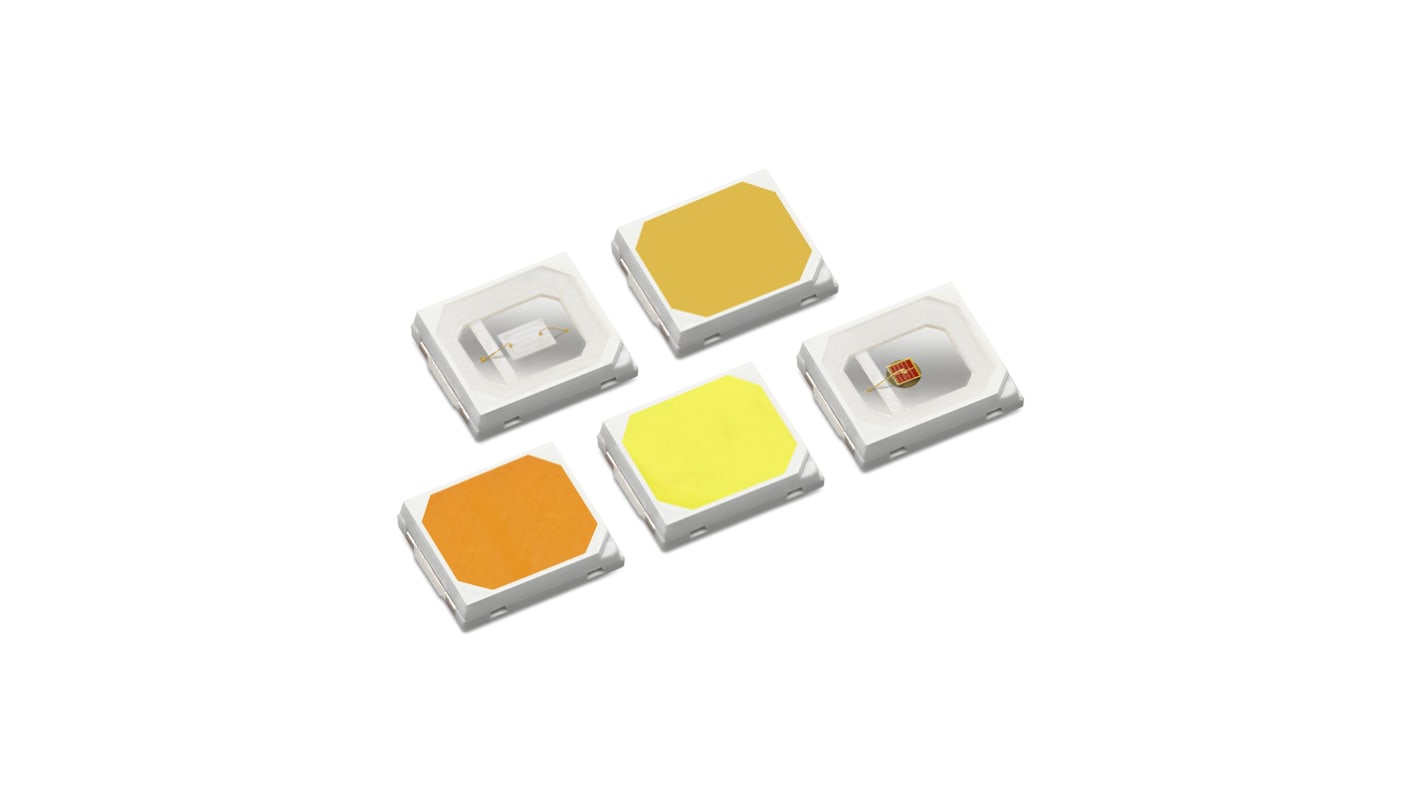

Lumileds2.5 V Red LED 2835 SMD, LUXEON 2835 L128-RED1003500000
- RS Stock No.:
- 183-8408P
- Mfr. Part No.:
- L128-RED1003500000
- Brand:
- Lumileds
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 183-8408P
- Mfr. Part No.:
- L128-RED1003500000
- Brand:
- Lumileds
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lumileds | |
| LED Colours | Red | |
| Package Type | 2835 | |
| Mounting Type | Surface Mount | |
| Forward Voltage | 2.5 V | |
| Viewing Angle | 130 ° | |
| Luminous Flux | 27 lm @ 200 mA (Typ.) | |
| Dominant Wavelength | 630 nm | |
| Dimensions | 3.5 x 2.8 x 0.7mm | |
| Forward Current | 250mA | |
| Series | LUXEON 2835 | |
| Select all | ||
|---|---|---|
Brand Lumileds | ||
LED Colours Red | ||
Package Type 2835 | ||
Mounting Type Surface Mount | ||
Forward Voltage 2.5 V | ||
Viewing Angle 130 ° | ||
Luminous Flux 27 lm @ 200 mA (Typ.) | ||
Dominant Wavelength 630 nm | ||
Dimensions 3.5 x 2.8 x 0.7mm | ||
Forward Current 250mA | ||
Series LUXEON 2835 | ||
The LUXEON 2835 colour Line enables a new era of colour lighting. This robust colour line provides high performance and is targeted at cost effective designs. Complemented by a broad range of white offerings,the LUXEON 2835 colour Line enables RGBW applications. This product line extends the comprehensive LUXEON colour Family.
Single die and single source architecture for optical control
Full colour palette for a wider spectrum range
Applications
Architectural & Entertainment
Lamps
colour Tunable Illumination
Specialty Lighting
Emergency Vehicle
Signage
Full colour palette for a wider spectrum range
Applications
Architectural & Entertainment
Lamps
colour Tunable Illumination
Specialty Lighting
Emergency Vehicle
Signage
