1.95 V, 3.5 V, 3.65 V RGB LED 3216 (1206) SMD, Kingbright KPTF-3216PBAVGASURKC

  • RS Stock No. 165-1498
  • Mfr. Part No. KPTF-3216PBAVGASURKC
  • Brand Kingbright
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

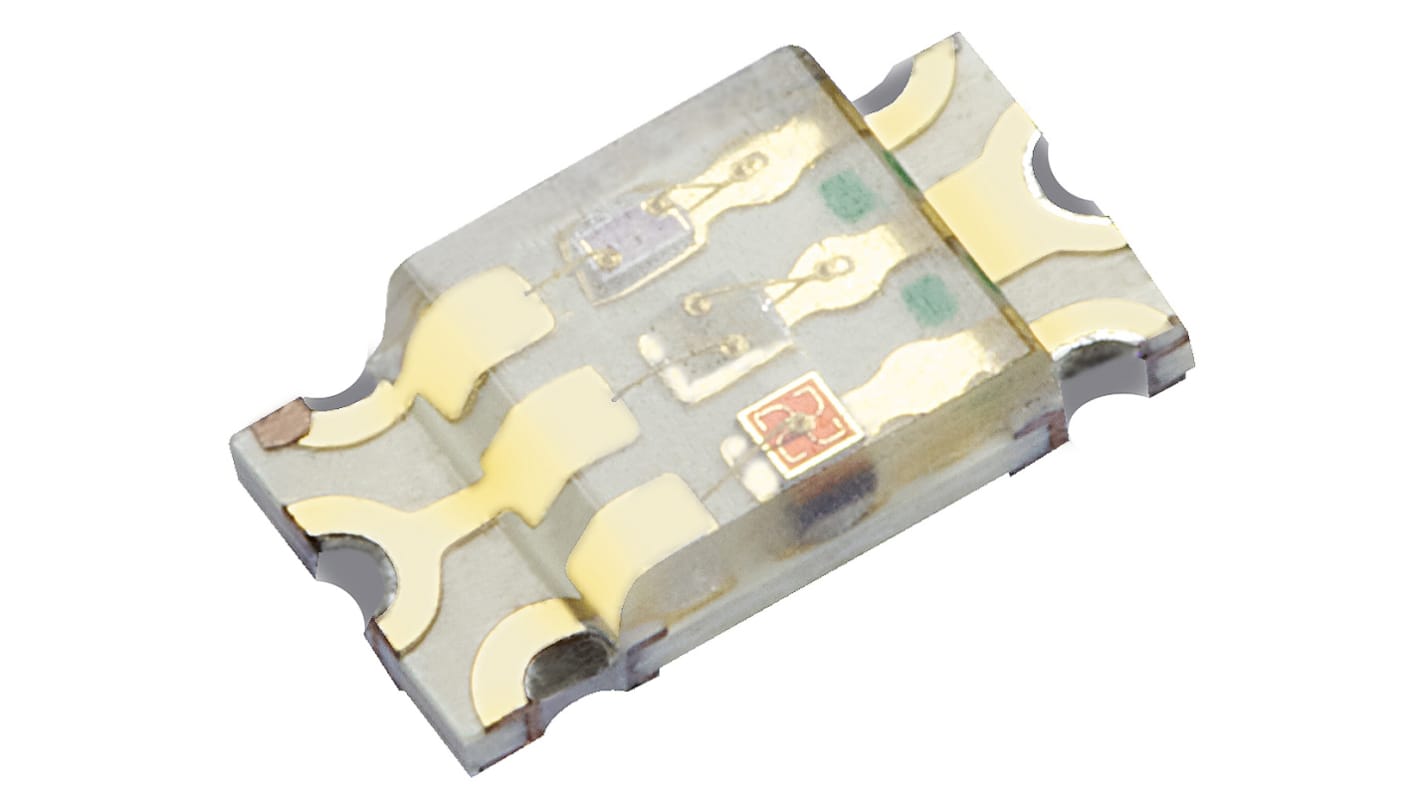

Kingbright SMT Chip LED 3216 (1206) Package, 0.75mm Height

The Chip LED 1206 series of LEDs, from Kingbright, are in the standard 1206 package. These top-emitting LEDs have low power consumption and a wide viewing angle. They are ideal for backlight and indicator applications, available in various different colours.

Height: 0.75 mm

Visible Light LEDs, Kingbright

Specifications
Attribute Value
LED Colours RGB
Package Type 3216 (1206)
Mounting Type Surface Mount
Number of LEDs 3
Forward Voltage 1.95 V, 3.5 V, 3.65 V
Luminous Intensity 100 mcd
Number of Pins 6
Viewing Angle 120 °
Lens Shape Rectangle
Dominant Wavelength 470 / 525 / 635 nm
Dimensions 3.2 x 1.6 x 0.75mm
Lens Colour Clear
2000 In stock for FREE next working day delivery
Price Each (On a Reel of 2000)
£ 1.186
(exc. VAT)
£ 1.423
(inc. VAT)
Units
Per unit
Per Reel*
2000 +
£1.186
£2,372.00
*price indicative
