HSM8-C120 Broadcom HSM8 850 nm Infrared LED Emitter 1.6 x 0.93 mm Surface Mount package
- RS Stock No.:
- 566-056
- Mfr. Part No.:
- HSM8-C120
- Brand:
- Broadcom
Bulk discount available
Subtotal (1 tape of 10 units)*
£7.26
(exc. VAT)
£8.71
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 11,990 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 10 - 90 | £0.726 | £7.26 |
| 100 - 490 | £0.45 | £4.50 |
| 500 - 990 | £0.262 | £2.62 |
| 1000 + | £0.255 | £2.55 |
*price indicative
- RS Stock No.:
- 566-056
- Mfr. Part No.:
- HSM8-C120
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Peak Wavelength | 850nm | |
| Product Type | Infrared LED Emitter | |
| Package Type | 1.6 x 0.93 mm | |
| Radiant Intensity | 3mW/sr | |
| Mount Type | Surface Mount | |
| Angle of Half Intensity | 150° | |
| Series | HSM8 | |
| LED Material | Plastic | |
| Standards/Approvals | RoHS, Lead (Pb) Free | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Broadcom | ||
Peak Wavelength 850nm | ||
Product Type Infrared LED Emitter | ||
Package Type 1.6 x 0.93 mm | ||
Radiant Intensity 3mW/sr | ||
Mount Type Surface Mount | ||
Angle of Half Intensity 150° | ||
Series HSM8 | ||
LED Material Plastic | ||
Standards/Approvals RoHS, Lead (Pb) Free | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TW

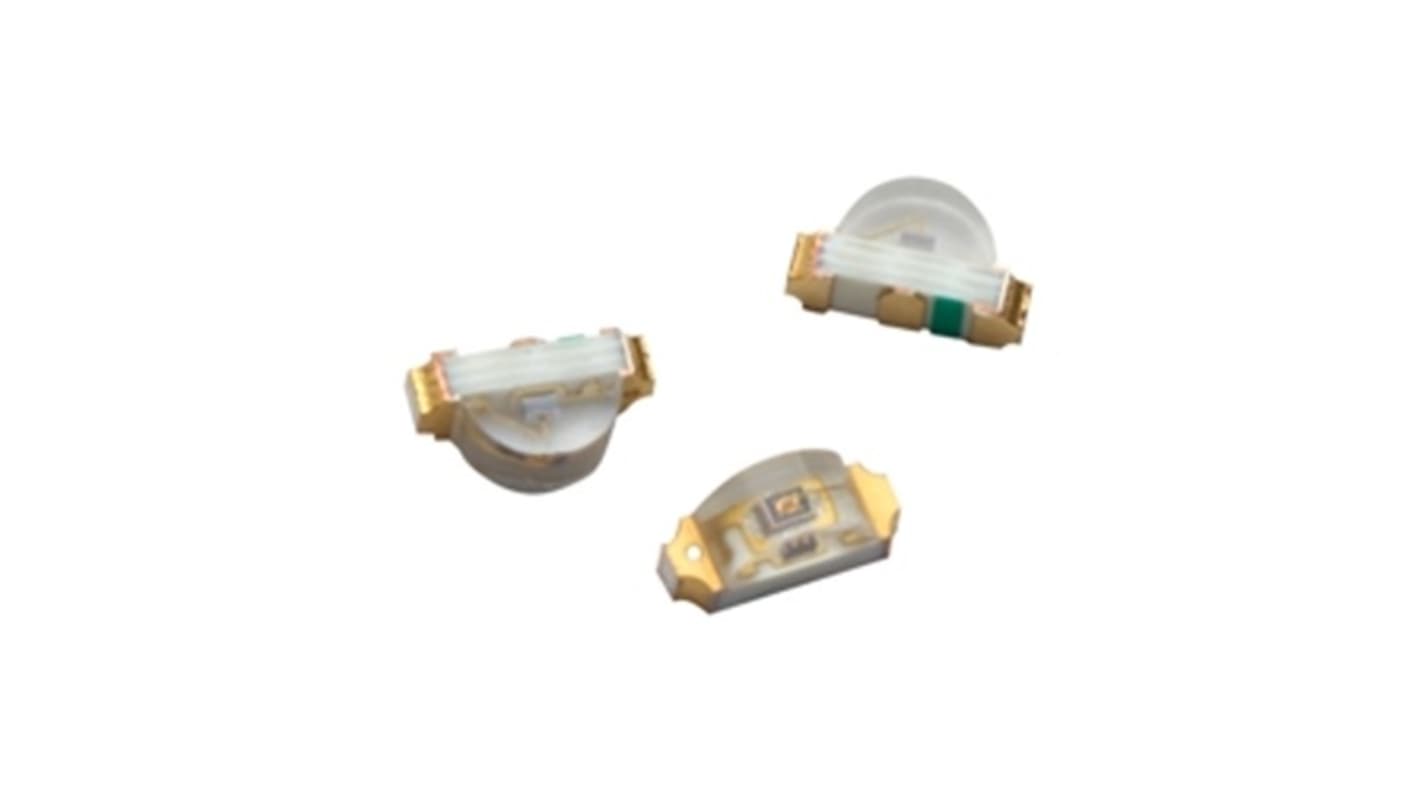

The Broadcom Side-Emitting Infrared (IR) ChipLED is designed for a wide range of applications, including consumer portable electronics, wearables, industrial automation, and office automation. This robust and high-quality IR emitter is available in an industry-popular package footprint.
Compact package is 1.6 mm x 0.93 mm
Peak wavelength is 850 nm
Compatible with reflow soldering
