RLP3-200-500 Bivar, PCB Mounted 3-Way Right Angle LED Light Pipe, Clear Flat Lens
- RS Stock No.:
- 891-9680
- Mfr. Part No.:
- RLP3-200-500
- Brand:
- Bivar
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 891-9680
- Mfr. Part No.:
- RLP3-200-500
- Brand:
- Bivar
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bivar | |
| Configuration | Right Angle | |
| Flexible/Rigid | Rigid | |
| Length | 14mm | |
| Orientation | Right Angle | |
| Dimensions | 18.7 x 7.3 x 14mm | |
| Mounting Type | PCB Mounted | |
| Lens Shape | Flat | |
| Number of Ways | 3 | |
| Rows | 1 | |
| LED Included | No | |
| Columns | 3 | |
| Lens Colour | Clear | |
| Outer Diameter | 2.8mm | |
| Series | RLP3 | |
| Configuration Rows x Columns | 1 x 3 | |
Select all | ||
|---|---|---|
Brand Bivar | ||
Configuration Right Angle | ||
Flexible/Rigid Rigid | ||
Length 14mm | ||
Orientation Right Angle | ||
Dimensions 18.7 x 7.3 x 14mm | ||
Mounting Type PCB Mounted | ||
Lens Shape Flat | ||
Number of Ways 3 | ||
Rows 1 | ||
LED Included No | ||
Columns 3 | ||
Lens Colour Clear | ||
Outer Diameter 2.8mm | ||
Series RLP3 | ||
Configuration Rows x Columns 1 x 3 | ||
Bivar RLP3 Series Right Angle LED Light Pipes

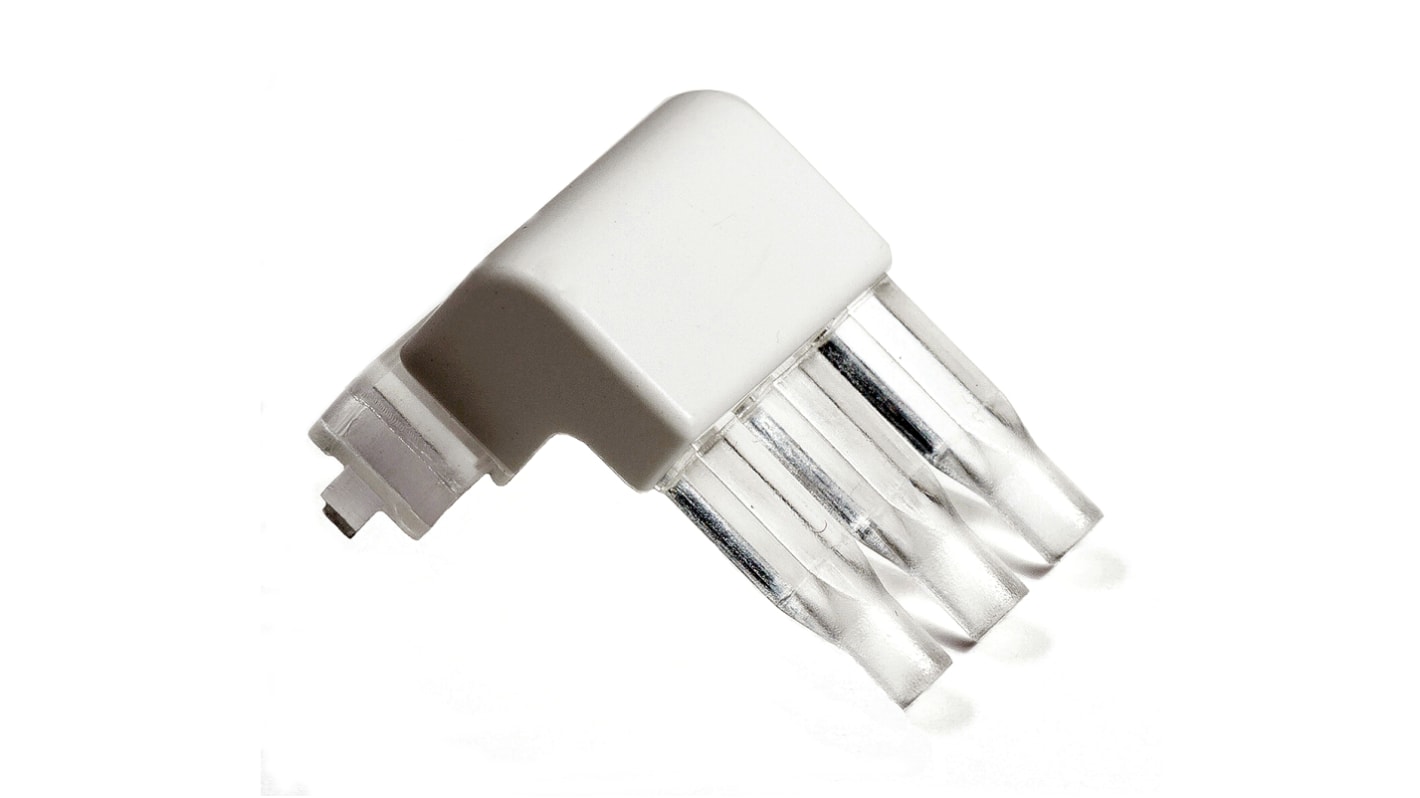

These RLP3 series right angle, triple station light pipes, from Bivar, feature an outer protective white housing and simple snap-fit PCB mounting. RLP3 series light pipes are ideal for redirecting the light output from 3 LEDs to another location, as well as isolating the PCB from potential contact and thus from accidental ESD damage.
Snap-in PCB mounting, recommended PCB thickness: 0.062”
ESD protection
Light pipe housing
Uniform diffused light output
2.8mm diameter output lens
ESD protection
Light pipe housing
Uniform diffused light output
2.8mm diameter output lens
Note
Elevation of the centre of output lens above the PCB: RLP3-200 = 5mm, RLP3-400 = 10mm and RLP3-600 = 15mm.
LED Light Pipes, Bivar
Bivar's range of LED light pipes include both rigid and flexible types. Their light pipes enable the user to move light from the LED source to a desired destination over a range of distances up to 100m. Bivar's LED light pipes are ideal for design flexibility.
