1280.1020 MENTOR, PCB Mounted 2-Way Right Angle LED Light Pipe, Bi-Level-Row Clear Round Lens

  • RS Stock No. 879-6096
  • Mfr. Part No. 1280.1020
  • Brand Mentor GmbH
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Horizontal Light Guides, 2 Row - Round

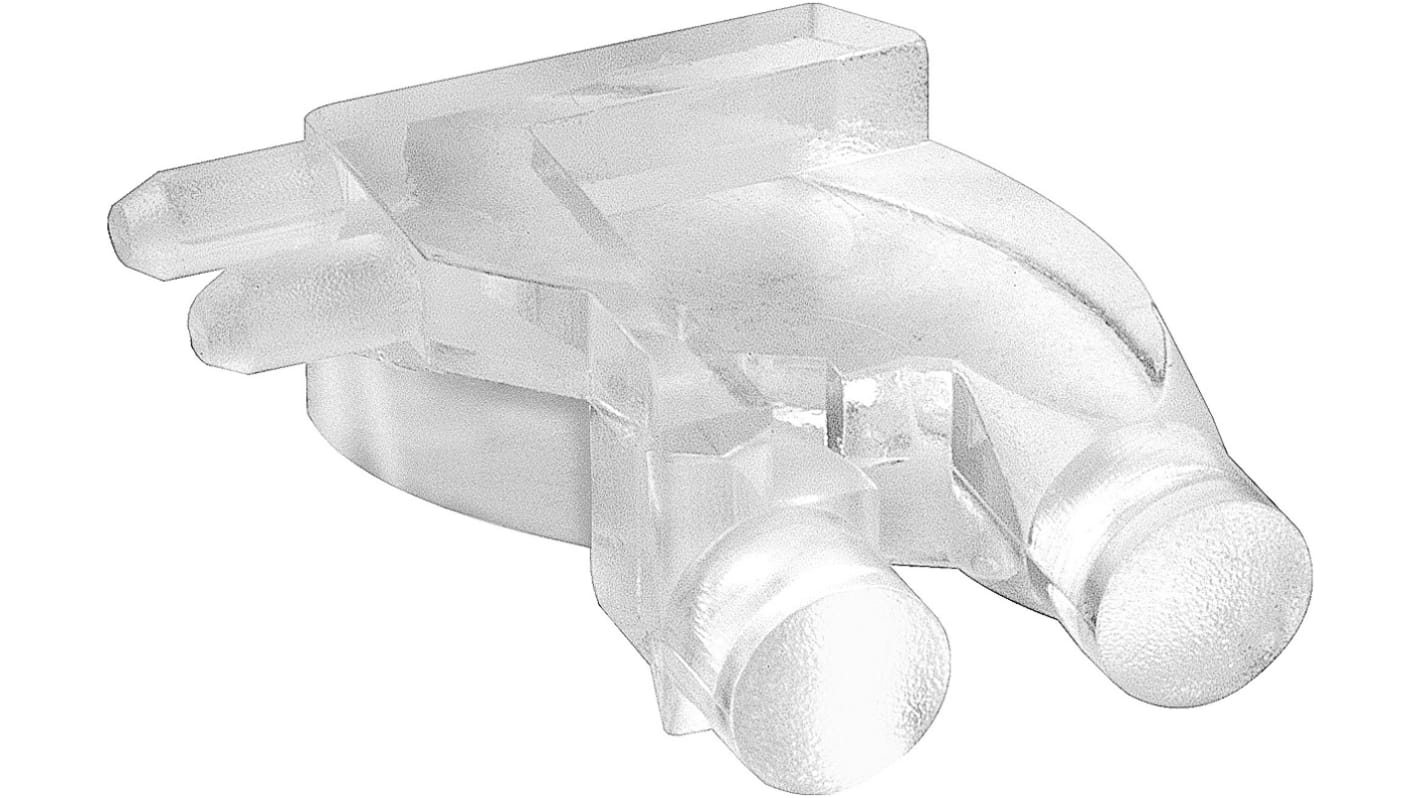

This family of horizontal light guides, from MENTOR, consist of two rows of light pipes. The round heads are available in 2 mm or 3 mm diameters and are parallel to the printed board on the front panel. This range of light guides is available in single column or multiple column arrays with up to 20 heads. Some of the light guides within this range use a screen to prevent radiation when using a combination of different colours.
Horizontal light pipes are designed for use with surface mount (SMD) LEDs and are fitted to the circuit board using push-fit lugs. The light pipe inject face sits in close proximity to the LED on the board.

Features of the horizontal light guides:
Round heads
2 x rows
1 to 10 columns
Clear plastic package
Ambient temperature: -40°C to +85°C

LED Light Pipes, MENTOR - Horizontal

MENTOR light guides are designed to transmit light from a PCB-mounted LED to the desired user interface. This transfer is completed with little or no loss of luminance and no light bleed between adjacent elements.
This vast range of light guides are available in single or multiple light guide options, with a range of head shapes and sizes. These options allow them to provide a solution for all sorts of applications. They also offer simple installation and high ESD protection.

Specifications
Attribute Value
Flexible/Rigid Rigid
Length 17.5mm
Orientation Right Angle
Dimensions 4.6 x 9.3 x 17.5mm
Mounting Type PCB Mounted
Lens Shape Round
Number of Ways 2
Rows 2
LED Included No
Columns 1
Lens Colour Clear
Configuration Rows x Columns 2 x 1
Outer Diameter 3.05mm
50 In stock for FREE next working day delivery
Price Each (In a Pack of 5)
£ 0.722
(exc. VAT)
£ 0.866
(inc. VAT)
Units
Per unit
Per Pack*
5 - 45
£0.722
£3.61
50 - 120
£0.70
£3.50
125 - 245
£0.68
£3.40
250 - 495
£0.66
£3.30
500 +
£0.64
£3.20
*price indicative
