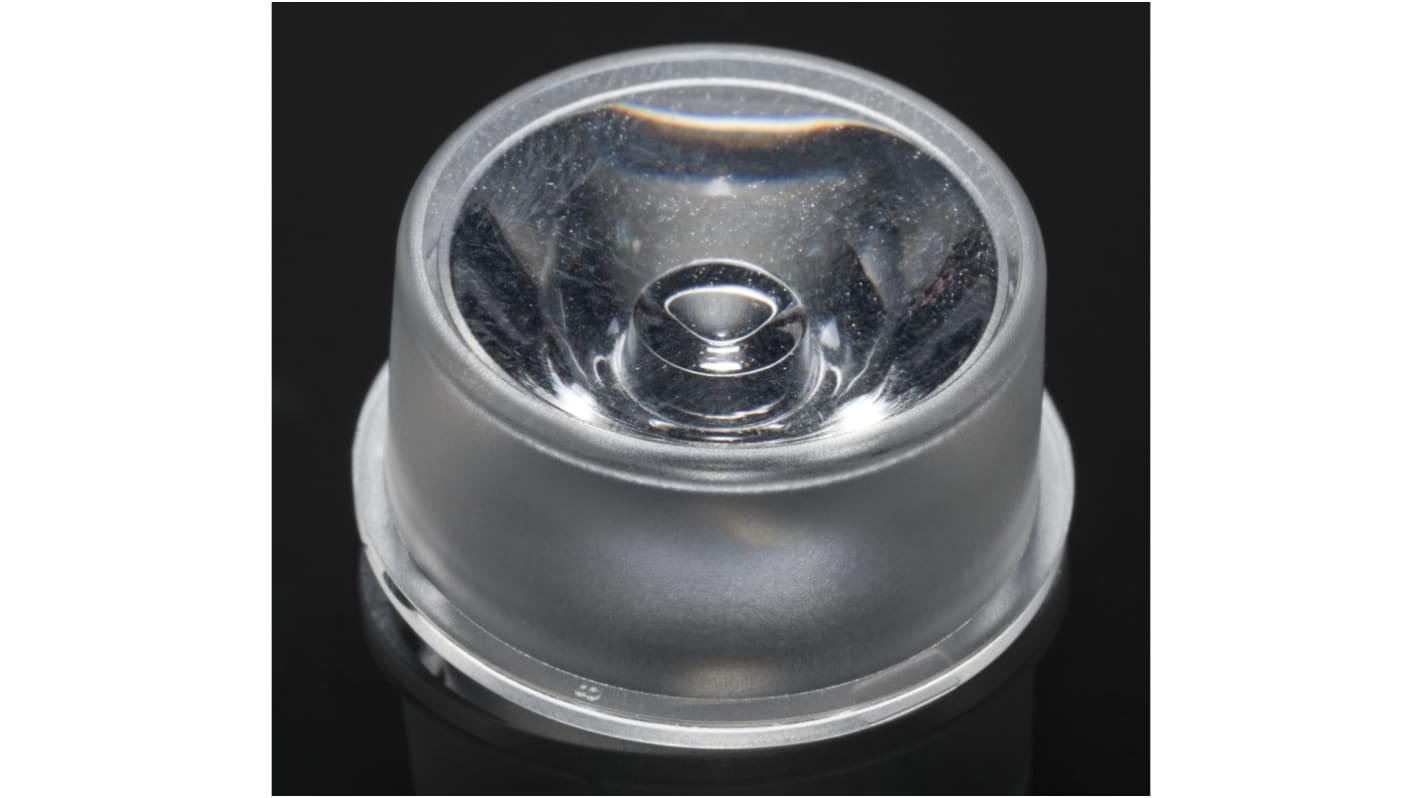

Ledil C13528_VERONICA-RS, Veronica Series LED Lens, Round Beam
- RS Stock No.:
- 891-0621
- Mfr. Part No.:
- C13528_VERONICA-RS
- Brand:
- Ledil
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 891-0621
- Mfr. Part No.:
- C13528_VERONICA-RS
- Brand:
- Ledil
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ledil | |
| Series | Veronica | |
| Number of LEDs Per Lens | 1 | |
| Emission Pattern | Round | |
| Viewing Angle | 10 → 16 ° | |
| Affixing Method | Glue, Pin | |
| For Use With | Cree XB-H, Cree XM-L2, Cree XP-G, Cree XP-G2, Lumileds LUXEON A, Lumileds LUXEON Rebel, Nichia NCSxx19A, Nichia NVSxx19A, Nichia NVSxx19B, Nichia NVSxx19C, Samsung LH351B, Samsung LH351Z | |
| Dimensions | 26 x 12.2mm | |
| Clear or Diffused | Clear | |
| Diameter | 26mm | |
| Height | 12.2mm | |
| Kit Contents | Lens, Optic | |
Select all | ||
|---|---|---|
Brand Ledil | ||
Series Veronica | ||
Number of LEDs Per Lens 1 | ||
Emission Pattern Round | ||
Viewing Angle 10 → 16 ° | ||
Affixing Method Glue, Pin | ||
For Use With Cree XB-H, Cree XM-L2, Cree XP-G, Cree XP-G2, Lumileds LUXEON A, Lumileds LUXEON Rebel, Nichia NCSxx19A, Nichia NVSxx19A, Nichia NVSxx19B, Nichia NVSxx19C, Samsung LH351B, Samsung LH351Z | ||
Dimensions 26 x 12.2mm | ||
Clear or Diffused Clear | ||
Diameter 26mm | ||
Height 12.2mm | ||
Kit Contents Lens, Optic | ||
- COO (Country of Origin):
- CN
LEDiL VERONICA Series LED Lenses
The VERONICA series from LEDil, are a family of round LED lenses with a square or round base. They are TIR lenses for installations with potting resin. VERONICA lenses act as an optical element, structural holder and sealing surface. Designed for indoor and outdoor applications the VERONICA lenses can be used for IP ratings of up to IPx8.
This range is designed for use with a single LED. They offer a range of beam angles from a spot to wide, and even an oval beam option. VERONICA lenses direct the light from an LED light source through the lens to achieve the desired beam emission type with a uniform output.
VERONICA-SQ lenses have an adhesive tape for easy installation and a slightly smaller footprint than the standard VERONICA lenses.
Made using an optical grade PMMA, the VERONICA lenses offer a high UV and temperature resistance. VERONICA lenses have been designed and optimised for use with a variety of LEDs. Due to the rapidly changing nature of LED products customers are strongly advised to consult the latest manufacturer data for compatible LEDs.
This range is designed for use with a single LED. They offer a range of beam angles from a spot to wide, and even an oval beam option. VERONICA lenses direct the light from an LED light source through the lens to achieve the desired beam emission type with a uniform output.
VERONICA-SQ lenses have an adhesive tape for easy installation and a slightly smaller footprint than the standard VERONICA lenses.
Made using an optical grade PMMA, the VERONICA lenses offer a high UV and temperature resistance. VERONICA lenses have been designed and optimised for use with a variety of LEDs. Due to the rapidly changing nature of LED products customers are strongly advised to consult the latest manufacturer data for compatible LEDs.
Note
The viewing angle produced (the full angle measured at the half peak luminous intensity value) will vary depending on the chip size, colour and position of the LED.
