Ledil CN13990_SAGA-HB-IP-WHT, Saga Series LED Lens, 61 ° Round Beam
- RS Stock No.:
- 889-2368
- Mfr. Part No.:
- CN13990_SAGA-HB-IP-WHT
- Brand:
- Ledil
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 889-2368
- Mfr. Part No.:
- CN13990_SAGA-HB-IP-WHT
- Brand:
- Ledil
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ledil | |
| Series | Saga | |
| Product Type | LED Lens | |
| Emission Pattern | Round | |
| Viewing Angle | 61 ° | |
| Affixing Method | Screw | |
| For Use With | Citizen CLL01x, Citizen CLL02x/CLU024, Citizen CLL03x/CLU034, Citizen CLU700/710/720, Cree CXA/B 13xx, Cree CXA15, Cree CXA1816, Cree CXA1820, Cree CXA1850, Cree CXB15, Cree CXB1816, Cree CXB1820, Cree MHD-E/G, Lumileds LUXEON CoB 105, Lumileds LUXEON CoB 107, Lumileds LUXEON CoB 1202, Lumileds LUXEON CoB 1202s, Lumileds LUXEON CoB 1203, OSRAM Duris S10, OSRAM SOLERIQ P13, OSRAM SOLERIQ P6, OSRAM SOLERIQ P9, OSRAM SOLERIQ S13, Seoul ZC12/18, Seoul ZC4/6 | |
| Dimensions | 50 (Dia.) x 12mm | |
| Clear or Diffused | Clear | |
| Diameter | 50mm | |
| Height | 12mm | |
Select all | ||
|---|---|---|
Brand Ledil | ||
Series Saga | ||
Product Type LED Lens | ||
Emission Pattern Round | ||
Viewing Angle 61 ° | ||
Affixing Method Screw | ||
For Use With Citizen CLL01x, Citizen CLL02x/CLU024, Citizen CLL03x/CLU034, Citizen CLU700/710/720, Cree CXA/B 13xx, Cree CXA15, Cree CXA1816, Cree CXA1820, Cree CXA1850, Cree CXB15, Cree CXB1816, Cree CXB1820, Cree MHD-E/G, Lumileds LUXEON CoB 105, Lumileds LUXEON CoB 107, Lumileds LUXEON CoB 1202, Lumileds LUXEON CoB 1202s, Lumileds LUXEON CoB 1203, OSRAM Duris S10, OSRAM SOLERIQ P13, OSRAM SOLERIQ P6, OSRAM SOLERIQ P9, OSRAM SOLERIQ S13, Seoul ZC12/18, Seoul ZC4/6 | ||
Dimensions 50 (Dia.) x 12mm | ||
Clear or Diffused Clear | ||
Diameter 50mm | ||
Height 12mm | ||
- COO (Country of Origin):
- CN

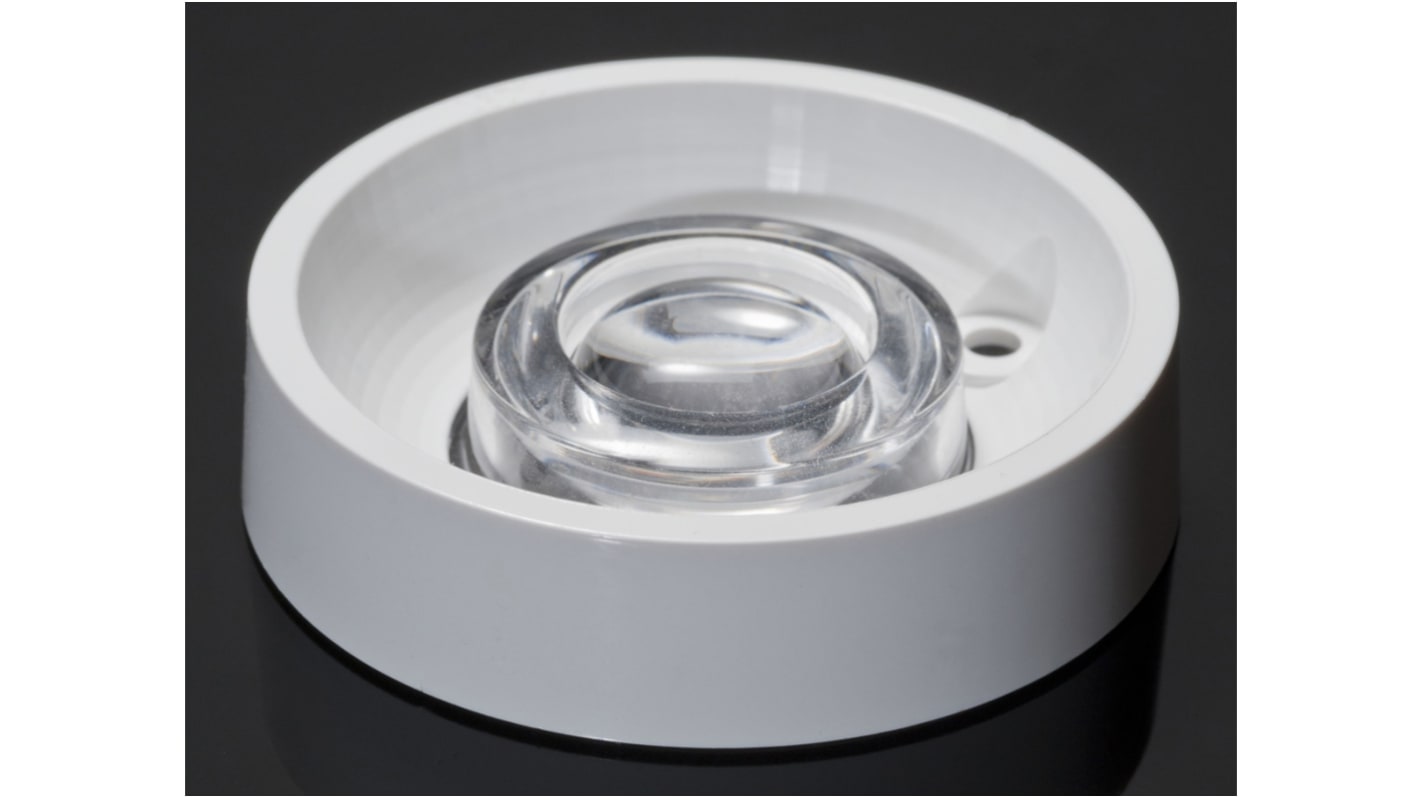

LEDiL SAGA Series LED Lenses
The SAGA series from LEDiL are a family of silicone hybrid LED lenses with a white PC holder. Designed for harsh environments, the SAGA lenses are sealed and designed to withstand heat and moisture, whilst offering a quality light output. The SAGA optics are rugged but also aesthetically pleasing.
Suitable applications include; low bay, interior architecture, industrial lighting and hospitality lighting.
SAGA lenses have been designed and optimised for use with a variety of LEDs. Due to the rapidly changing nature of LED products customers are strongly advised to consult the latest manufacturer data for compatible LEDs.
Suitable applications include; low bay, interior architecture, industrial lighting and hospitality lighting.
SAGA lenses have been designed and optimised for use with a variety of LEDs. Due to the rapidly changing nature of LED products customers are strongly advised to consult the latest manufacturer data for compatible LEDs.
Note
The viewing angle produced (the full angle measured at the half peak luminous intensity value) will vary depending on the chip size, colour and position of the LED.
