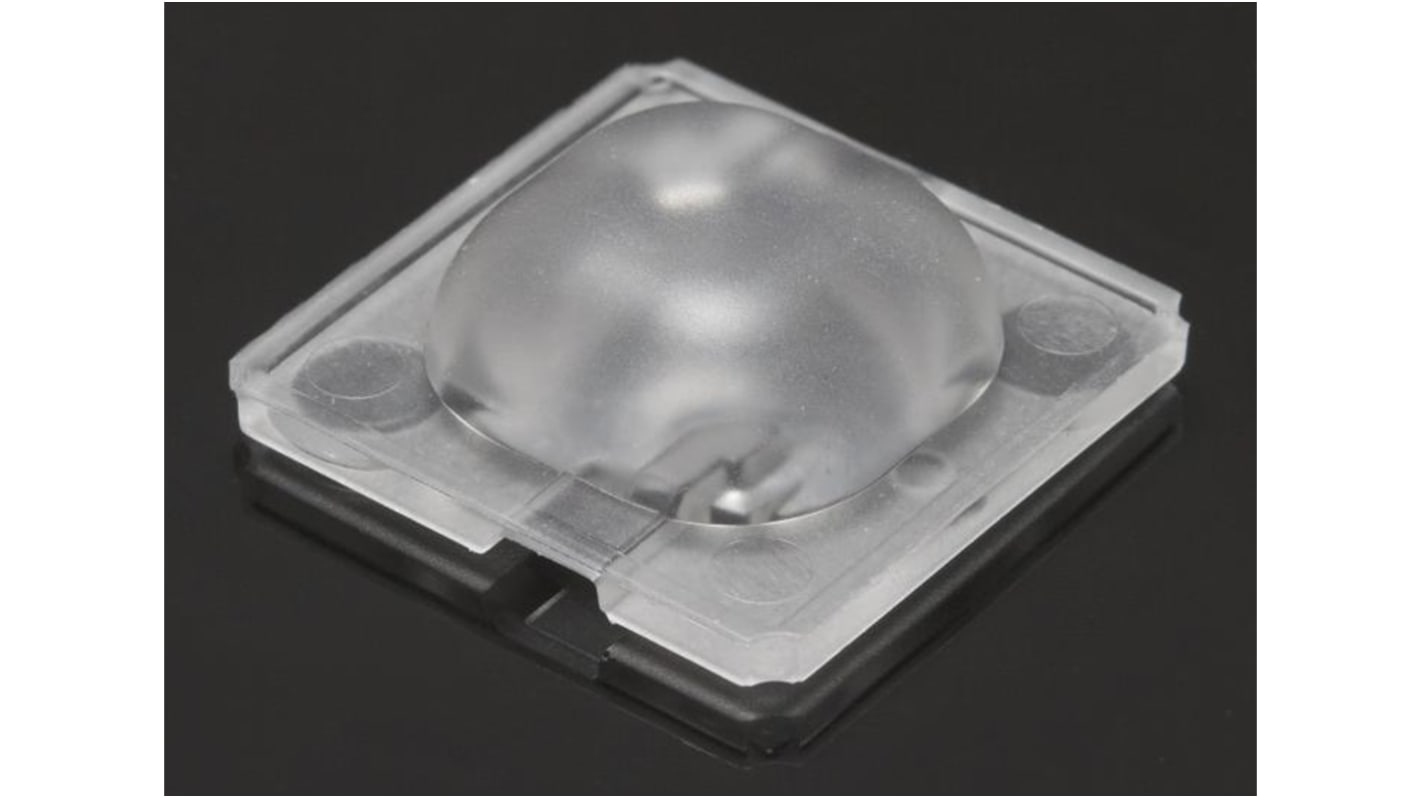

Ledil F14531_JENNY-CY, Jenny Series LED Lens, 102 + 102 ° Square Beam
- RS Stock No.:
- 889-2141
- Mfr. Part No.:
- F14531_JENNY-CY
- Brand:
- Ledil
Subtotal (1 pack of 2 units)*
£4.17
(exc. VAT)
£5.004
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 28 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
2 + | £2.085 | £4.17 |
*price indicative
- RS Stock No.:
- 889-2141
- Mfr. Part No.:
- F14531_JENNY-CY
- Brand:
- Ledil
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Ledil | |
Series | Jenny | |
Product Type | LED Lens | |
Emission Pattern | Square | |
Viewing Angle | 102 + 102 ° | |
For Use With | V10 Series of LEDs | |
Dimensions | 35 x 35 x 11.5mm | |
Clear or Diffused | Clear | |
Height | 11.5mm | |
Length | 35mm | |
Width | 35mm | |
Select all | ||
---|---|---|
Brand Ledil | ||
Series Jenny | ||
Product Type LED Lens | ||
Emission Pattern Square | ||
Viewing Angle 102 + 102 ° | ||
For Use With V10 Series of LEDs | ||
Dimensions 35 x 35 x 11.5mm | ||
Clear or Diffused Clear | ||
Height 11.5mm | ||
Length 35mm | ||
Width 35mm | ||
- COO (Country of Origin):
- FI
LEDiL JENNY Series LED Lenses
The JENNY series from LEDiL are a family of silicone LED lenses designed for small and mid-sized COB LEDs. The JENNY lenses are available as individual lenses or as 2x2 or 8x1 linear modules. Suitable applications include area and street lighting.
Made using silicone the JENNY lenses can be mounted using positioning pins and a glue. Alternatively there is a JENNY holder to keep it in place.
JENNY lenses have been designed and optimised for use with a variety of LEDs. Due to the rapidly changing nature of LED products customers are strongly advised to consult the latest manufacturer data for compatible LEDs.
Made using silicone the JENNY lenses can be mounted using positioning pins and a glue. Alternatively there is a JENNY holder to keep it in place.
JENNY lenses have been designed and optimised for use with a variety of LEDs. Due to the rapidly changing nature of LED products customers are strongly advised to consult the latest manufacturer data for compatible LEDs.
Note
The viewing angle produced (the full angle measured at the half peak luminous intensity value) will vary depending on the chip size, colour and position of the LED.
