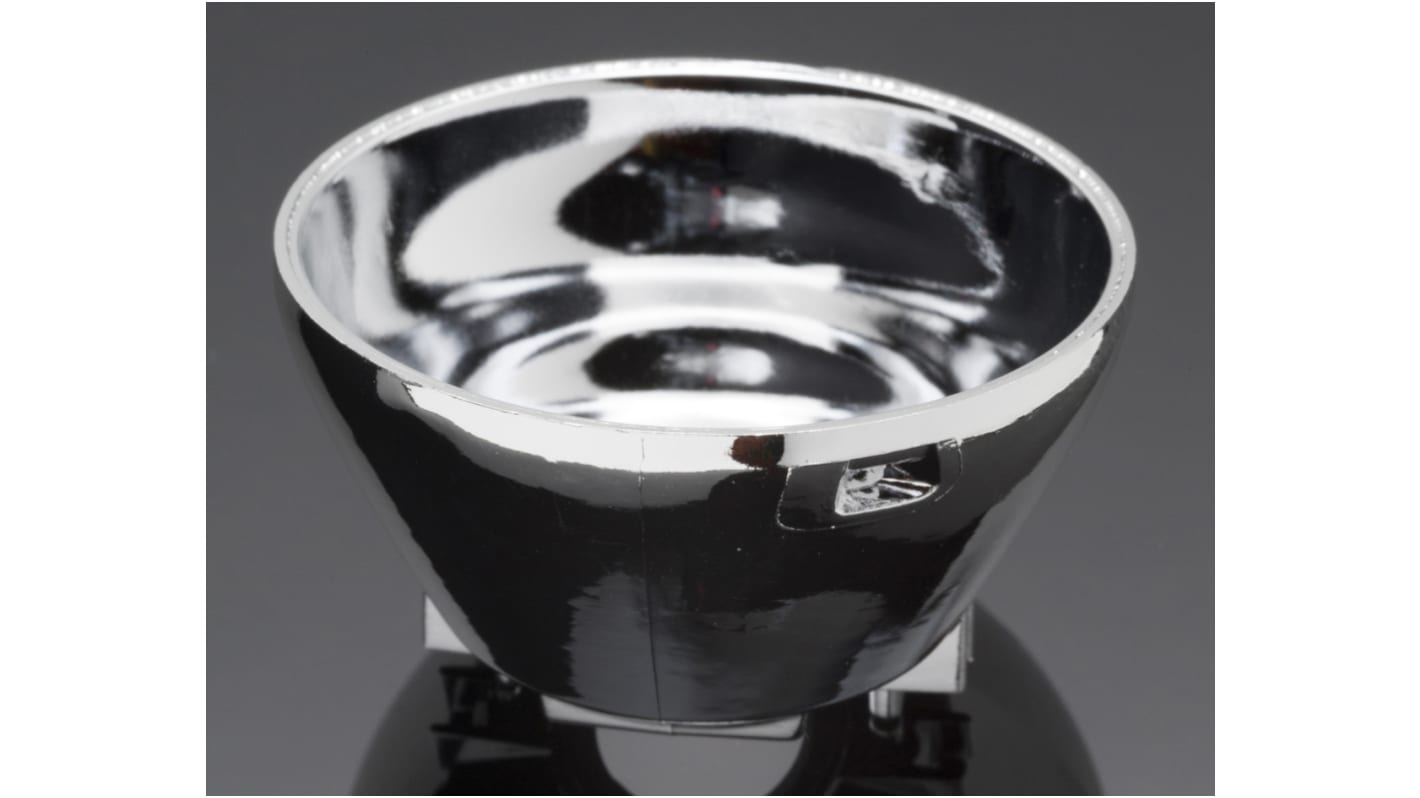

Ledil C11775_VENLA-M, Venla Series LED Reflector
- RS Stock No.:
- 786-1492
- Mfr. Part No.:
- C11775_VENLA-M
- Brand:
- Ledil
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 786-1492
- Mfr. Part No.:
- C11775_VENLA-M
- Brand:
- Ledil
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ledil | |
| Series | Venla | |
| For Use With | Lumileds LUXEON S | |
| Dimensions | 45 (Dia.) x 25mm | |
| Diameter | 45mm | |
| Height | 25mm | |
| Beam Angle | 28° | |
Select all | ||
|---|---|---|
Brand Ledil | ||
Series Venla | ||
For Use With Lumileds LUXEON S | ||
Dimensions 45 (Dia.) x 25mm | ||
Diameter 45mm | ||
Height 25mm | ||
Beam Angle 28° | ||
LEDiL VENLA Series LED Reflectors
The VENLA series of LED reflector assemblies from LEDil, provide uniform light from a single LED light source. The VENLA reflectors come in a range of options from a spot beam to extra wide.
Made using aluminium coated PC, the VENLA reflectors can operate to high temperatures. Some reflector assemblies also include a sub-lens for a diffused beam pattern. Part numbers ending –IRIS are a white reflector made from PMMA.
Made using aluminium coated PC, the VENLA reflectors can operate to high temperatures. Some reflector assemblies also include a sub-lens for a diffused beam pattern. Part numbers ending –IRIS are a white reflector made from PMMA.
Note
The viewing angle produced (the full angle measured at the half peak luminous intensity value) will vary depending on the chip size, colour and position of the LED.
