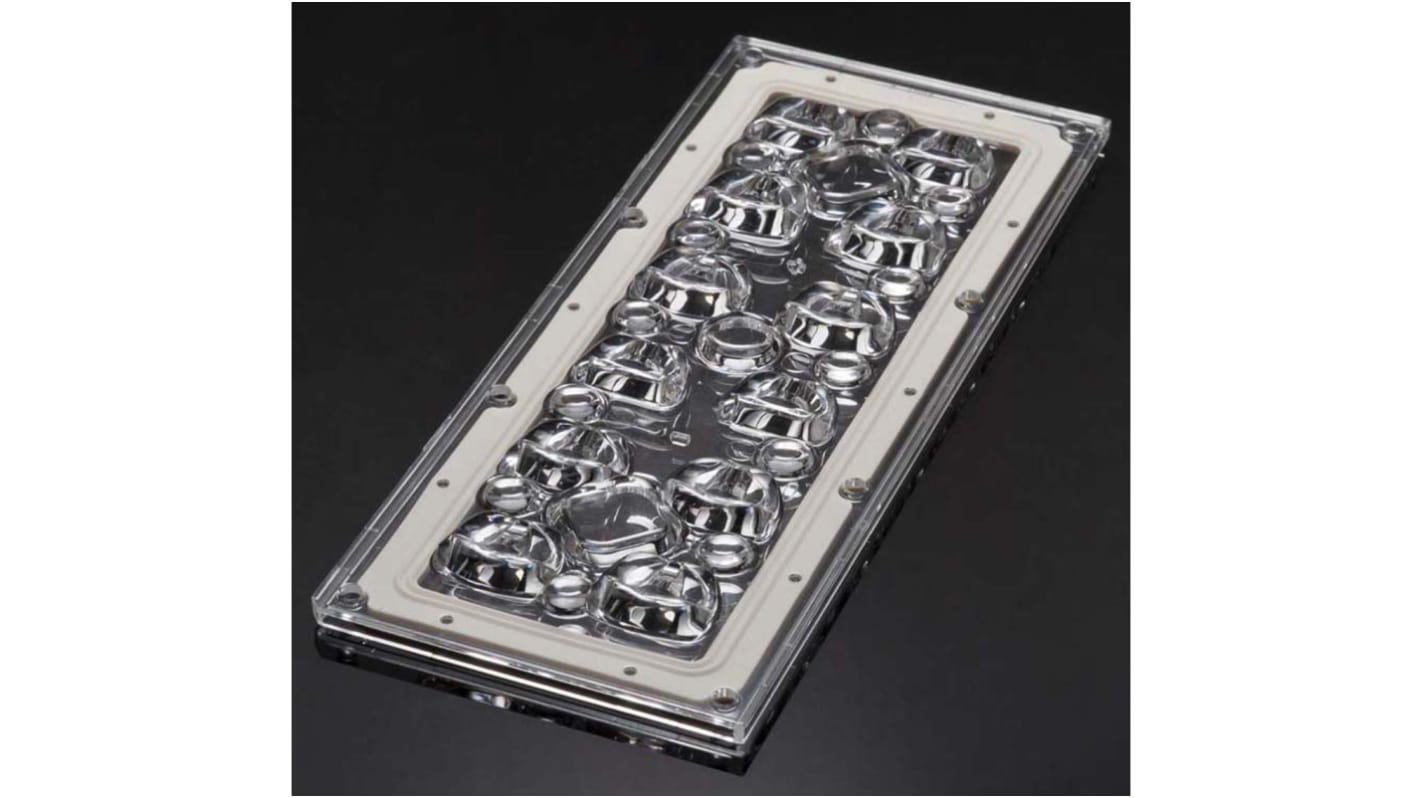

Ledil CS12862_STRADA-IP-2X6-DWC, Strada-IP Series 12-Way LED Lens, Street Lighting Beam
- RS Stock No.:
- 785-1473
- Mfr. Part No.:
- CS12862_STRADA-IP-2X6-DWC
- Brand:
- Ledil
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 785-1473
- Mfr. Part No.:
- CS12862_STRADA-IP-2X6-DWC
- Brand:
- Ledil
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ledil | |
| Series | Strada-IP | |
| Lens Shape | Rectangle | |
| Number of LEDs Per Lens | 12 | |
| Emission Pattern | Street Lighting | |
| Affixing Method | Pin, Screw | |
| For Use With | Cree XB-D, Cree XP-G, Cree XP-G2, Cree XT-E, Lumileds LUXEON H50-2, Lumileds LUXEON R, Lumileds LUXEON Rebel ES, Lumileds LUXEON T, Lumileds LUXEON TX, OSRAM OSLON Square, Samsung LH351Z, Toshiba TL1L2, Toshiba TL1L3, Toshiba TL1L4 | |
| Dimensions | 173 x 71.4 x 7.92mm | |
| Clear or Diffused | Clear | |
| Height | 7.92mm | |
| Kit Contents | Lens | |
| Length | 173mm | |
| Width | 71.4mm | |
Select all | ||
|---|---|---|
Brand Ledil | ||
Series Strada-IP | ||
Lens Shape Rectangle | ||
Number of LEDs Per Lens 12 | ||
Emission Pattern Street Lighting | ||
Affixing Method Pin, Screw | ||
For Use With Cree XB-D, Cree XP-G, Cree XP-G2, Cree XT-E, Lumileds LUXEON H50-2, Lumileds LUXEON R, Lumileds LUXEON Rebel ES, Lumileds LUXEON T, Lumileds LUXEON TX, OSRAM OSLON Square, Samsung LH351Z, Toshiba TL1L2, Toshiba TL1L3, Toshiba TL1L4 | ||
Dimensions 173 x 71.4 x 7.92mm | ||
Clear or Diffused Clear | ||
Height 7.92mm | ||
Kit Contents Lens | ||
Length 173mm | ||
Width 71.4mm | ||
- LEDil Strada-IP Series LED Lens array for use with Philips Lumileds LUXEON Rebel ES LEDs Datasheet
- LEDil Strada-IP Series LED Lens array for use with Philips Lumileds LUXEON R LEDs Datasheet
- LEDil Strada-IP Series LED Lens array for use with Osram Oslon Square PC LEDs Datasheet
- LEDil Strada-IP Series LED Lens array for use with Cree XP-G LEDs Datasheet
- LEDil Strada-IP Series LED Lens array for use with Cree XT-E LEDs Datasheet
- STRADA Lens Guide
- Lens & Reflector Buyer's Guide
- COO (Country of Origin):
- CN
LEDiL STRADA-IP 2x6 Series LED Lenses
LEDiL Street Lighting LED Lenses
The Street Lighting range from LEDiL is designed for applications where the lens is mounted at a height. This includes street lamps, road lighting or warehouse aisle lighting.
