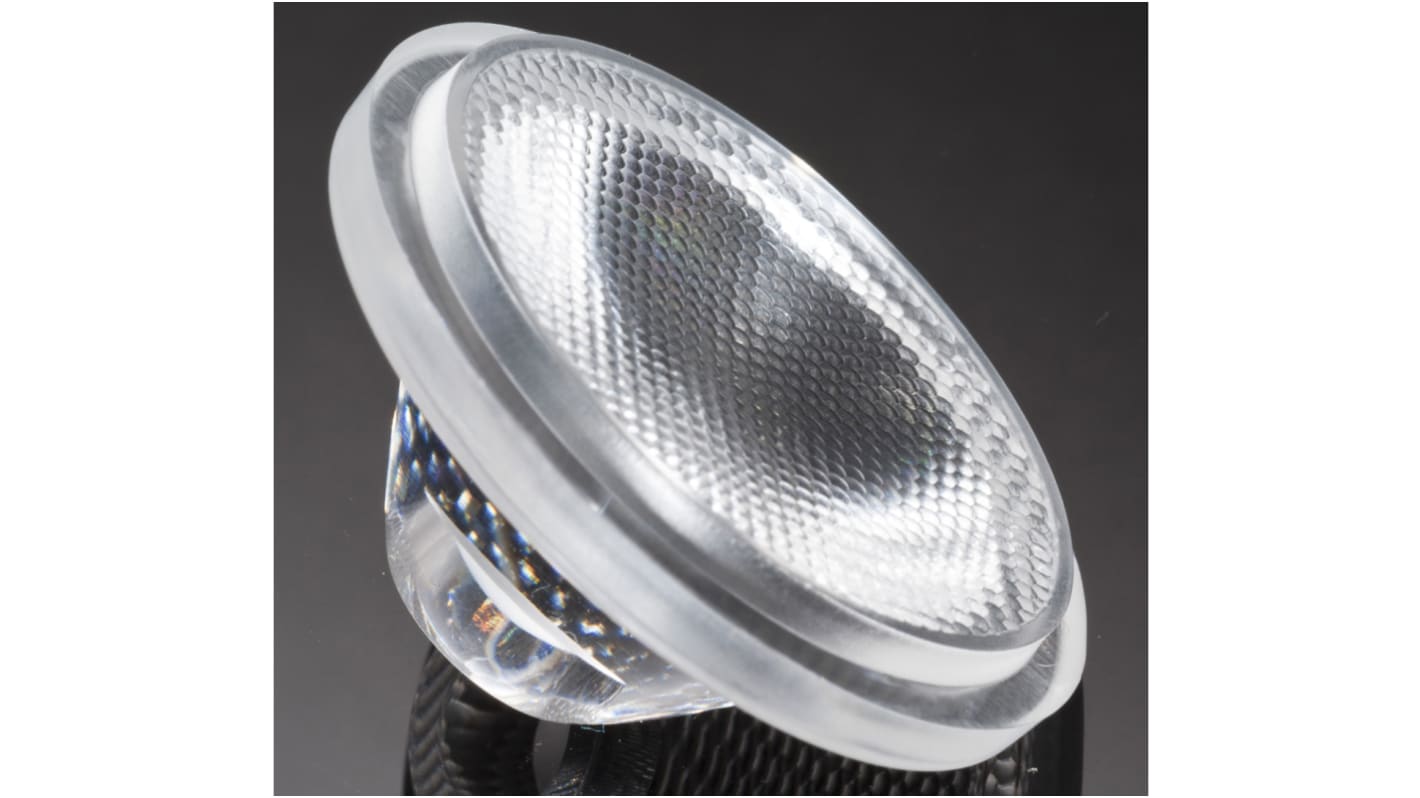

Ledil C10685_EVA-M, Eva Series LED Lens, 22 → 26 ° Medium Angle Beam

View all LED Lenses & Reflectors
Bulk discount available

Subtotal (1 pack of 2 units)*

£5.59

(exc. VAT)

£6.708

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 28 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
2 - 18£2.795£5.59
20 - 48£2.34£4.68
50 - 98£2.21£4.42
100 - 198£1.95£3.90
200 +£1.915£3.83

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
Ledil FA10660_LXP-M, Leila Series LED Lens, 18 → 26 ° Medium Angle Beam
RS Stock No.
710-7240

Each (In a Pack of 2)

£2.71

(exc. VAT)

£3.25

(inc. VAT)

RS Stock No.:
710-7593
Mfr. Part No.:
C10685_EVA-M
Brand:
Ledil
Find similar products by selecting one or more attributes.
Select all

Brand

Ledil

Series

Eva

Product Type

LED Lens

Lens Shape

Round

Number of LEDs Per Lens

1

Emission Pattern

Medium Angle

Viewing Angle

22 → 26 °

For Use With

Cree MC-E, Cree MHB-A, Cree XM-L, Cree XP-G2, Cree XT-E, Lumileds LUXEON 5258, Lumileds LUXEON M, Lumileds LUXEON MZ, Nichia NS9x383, Nichia NSMx286M, OSRAM Duris S8

Dimensions

35 (Dia.) x 16.4mm

Clear or Diffused

Clear

Diameter

35mm

Height

16.4mm

Kit Contents

Lens

LEDiL EVA Series LED Lenses


The EVA series from LEDil, are a family of round LED lenses. There are two types of lens within the EVA family, one with a black PC holder and one without. This range is designed for use with a single LED and come in a wide variety of options including clear or diffused. They also offer a range of beam angles from a spot to extra wide, and even an oval beam option. EVA lenses direct the light from an LED light source through the lens to achieve the desired beam emission type with a uniform output.
Made using an optical grade PMMA, the EVA lenses offer a high UV and temperature resistance.
EVA lenses have been designed and optimised for use with a variety of other LEDs. Due to the rapidly changing nature of LED products customers are strongly advised to consult the latest manufacturer data for compatible LEDs.

Note

The viewing angle produced (the full angle measured at the half peak luminous intensity value) will vary depending on the chip size, colour and position of the LED.
