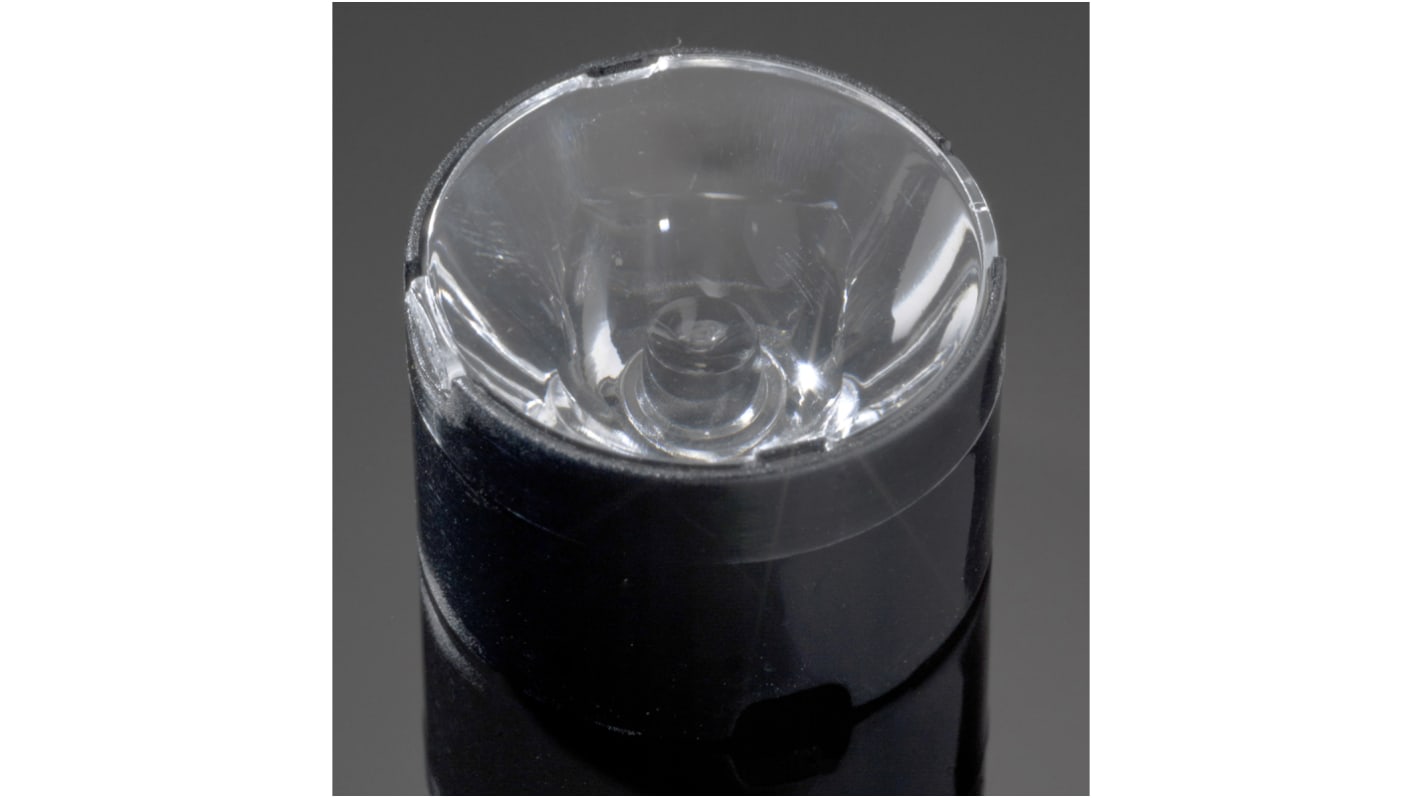

Ledil FA10613_LM1-RS, Leila Series 1-Way LED Lens 21 ° Spot Beam
- RS Stock No.:
- 710-7549
- Distrelec Article No.:
- 304-24-065
- Mfr. Part No.:
- FA10613_LM1-RS
- Brand:
- Ledil
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 2 units)*
£5.78
(exc. VAT)
£6.94
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 270 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 8 | £2.89 | £5.78 |
| 10 + | £2.705 | £5.41 |
*price indicative
- RS Stock No.:
- 710-7549
- Distrelec Article No.:
- 304-24-065
- Mfr. Part No.:
- FA10613_LM1-RS
- Brand:
- Ledil
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ledil | |
| Series | Leila | |
| Product Type | LED Lens | |
| Lens Shape | Round | |
| Number of LEDs Per Lens | 1 | |
| Emission Pattern | Spot | |
| Lens Material | Polymethyl Methacrylate | |
| Viewing Angle | 21 ° | |
| Fixing Method | Adhesive Tape | |
| For Use With | Cree MC-E | |
| Lens Style | Clear | |
| Diameter | 21.6mm | |
| Height | 14.04mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Ledil | ||
Series Leila | ||
Product Type LED Lens | ||
Lens Shape Round | ||
Number of LEDs Per Lens 1 | ||
Emission Pattern Spot | ||
Lens Material Polymethyl Methacrylate | ||
Viewing Angle 21 ° | ||
Fixing Method Adhesive Tape | ||
For Use With Cree MC-E | ||
Lens Style Clear | ||
Diameter 21.6mm | ||
Height 14.04mm | ||
Standards/Approvals No | ||
LEDiL LEILA Series LED Lenses
The LEILA series from LEDil, are a family of round LED lens assemblies with a black or white PC holder. This range is designed for use with a single LED and come in a wide variety of options including clear or diffused. They also offer a range of round beam angles from a spot to extra wide, and even an oval and rectangular beam option. LEILA lenses direct the light from an LED light source through the lens to achieve the desired beam emission type with a uniform output.
Made using an optical grade PMMA, the LEILA lenses offer a high UV and temperature resistance.
LEILA lenses have been designed and optimised for use with a variety of LEDs. Due to the rapidly changing nature of LED products customers are strongly advised to consult the latest manufacturer data for compatible LEDs.
LEDiL Single LED Lenses
Note
The viewing angle produced (the full angle measured at the half peak luminous intensity value) will vary depending on the chip size, colour and position of the LED.
