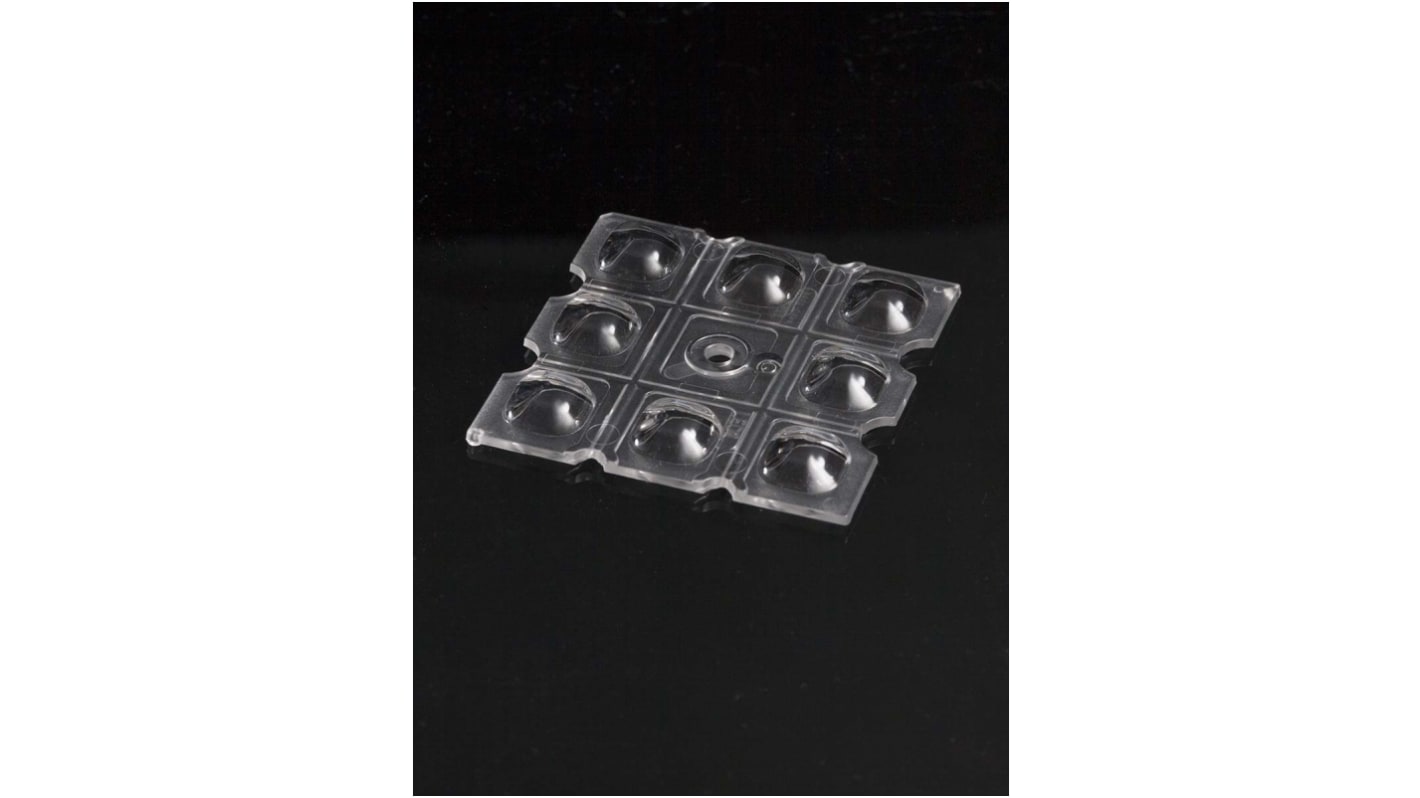

Ledil C15920_STRADELLA-8-HV-CY, STRADELLA Series 8-Way LED Lens
- RS Stock No.:
- 186-2746
- Mfr. Part No.:
- C15920_STRADELLA-8-HV-CY
- Brand:
- Ledil
Subtotal (1 pack of 5 units)*
£11.56
(exc. VAT)
£13.87
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 + | £2.312 | £11.56 |
*price indicative
- RS Stock No.:
- 186-2746
- Mfr. Part No.:
- C15920_STRADELLA-8-HV-CY
- Brand:
- Ledil
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Ledil | |
Series | STRADELLA | |
Product Type | LED Lens | |
Number of LEDs Per Lens | 8 | |
Lens Material | Polymethyl Methacrylate (PMMA) | |
Affixing Method | Screw | |
For Use With | Canopy Lighting, Catenary Lighting, High-Mast Lighting, Horticultural Top Lighting, IESNA Type V, IESNA Type VS, Industrial Midbay Lighting, Lowbay Lighting, Parking Area Lighting, Street Lighting Symm. Street Lighting, Tunnel Lighting, Wide-Area Lighting | |
Dimensions | 49.49 x 49.49 x 4.91mm | |
Clear or Diffused | Clear | |
Height | 4.91mm | |
Length | 49.49mm | |
Width | 49.49mm | |
Select all | ||
---|---|---|
Brand Ledil | ||
Series STRADELLA | ||
Product Type LED Lens | ||
Number of LEDs Per Lens 8 | ||
Lens Material Polymethyl Methacrylate (PMMA) | ||
Affixing Method Screw | ||
For Use With Canopy Lighting, Catenary Lighting, High-Mast Lighting, Horticultural Top Lighting, IESNA Type V, IESNA Type VS, Industrial Midbay Lighting, Lowbay Lighting, Parking Area Lighting, Street Lighting Symm. Street Lighting, Tunnel Lighting, Wide-Area Lighting | ||
Dimensions 49.49 x 49.49 x 4.91mm | ||
Clear or Diffused Clear | ||
Height 4.91mm | ||
Length 49.49mm | ||
Width 49.49mm | ||
- COO (Country of Origin):
- CN
Dense lens arrays for street and industrial lighting and up to 3535 size LEDs. STRADELLA is a cost-efficient product family of single lenses and dense lens arrays for street, area and industrial lighting. Bigger lens arrays come with an integrated silicone gasket for dusty and dump environments with up to IP67 ingress protection. Offering a huge amount of light from a relatively small area they are an ideal option for up to 3535 size mid and high-power LEDs and CSP LEDs.
Beam for canopy lighting with batwing light distribution. Suitable for symmetrical tunnel lighting. Variant with longer distance between location pins allowing high voltage circuit designs.
