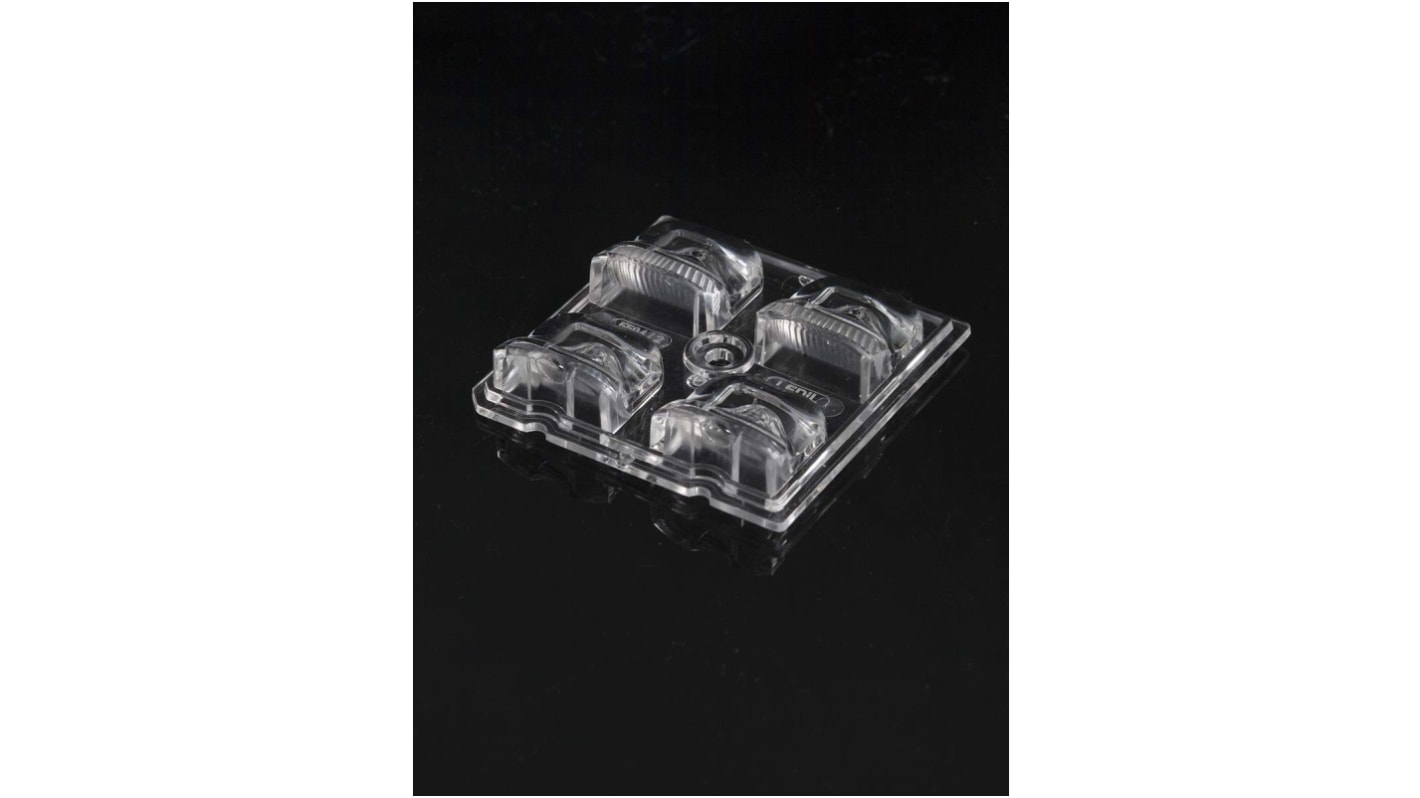

Ledil C15594_STRADA-2X2-MEW, STRADA Series 4-Way LED Lens
- RS Stock No.:
- 186-2703
- Mfr. Part No.:
- C15594_STRADA-2X2-MEW
- Brand:
- Ledil
Save 26% when you buy 100 units
Subtotal (1 pack of 5 units)*
£14.00
(exc. VAT)
£16.80
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 28 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 - 5 | £2.80 | £14.00 |
10 - 45 | £2.548 | £12.74 |
50 - 95 | £2.258 | £11.29 |
100 + | £2.058 | £10.29 |
*price indicative
- RS Stock No.:
- 186-2703
- Mfr. Part No.:
- C15594_STRADA-2X2-MEW
- Brand:
- Ledil
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Ledil | |
Series | STRADA | |
Product Type | LED Lens | |
Number of LEDs Per Lens | 4 | |
Lens Material | Polymethyl Methacrylate (PMMA) | |
Affixing Method | Screw | |
For Use With | Array, Asymm. Street Lighting, Europe Specific Lighting, IESNA Type III, Moderate Street Width, Parking Area Lighting High-Mast Lighting, Russia Specific Lighting, Short Pole Distances, Street Lighting Medium Pole Distances, Wet Roads (MEW), Wide Streets | |
Dimensions | 50 x 50 x 10.16mm | |
Clear or Diffused | Clear | |
Height | 10.16mm | |
Length | 50mm | |
Width | 50mm | |
Select all | ||
---|---|---|
Brand Ledil | ||
Series STRADA | ||
Product Type LED Lens | ||
Number of LEDs Per Lens 4 | ||
Lens Material Polymethyl Methacrylate (PMMA) | ||
Affixing Method Screw | ||
For Use With Array, Asymm. Street Lighting, Europe Specific Lighting, IESNA Type III, Moderate Street Width, Parking Area Lighting High-Mast Lighting, Russia Specific Lighting, Short Pole Distances, Street Lighting Medium Pole Distances, Wet Roads (MEW), Wide Streets | ||
Dimensions 50 x 50 x 10.16mm | ||
Clear or Diffused Clear | ||
Height 10.16mm | ||
Length 50mm | ||
Width 50mm | ||
- COO (Country of Origin):
- CN
The most versatile modular product family especially designed for street lighting, but also suitable for wide range of other applications. STRADA is LEDiL`s most comprehensive product family with a wide variety of different beams suitable for both outdoor and indoor lighting. The standardized modules are available in 2X2 and 2X6 layouts as well as in two different single formats. 2X2MX features a standardized 90 x 90 mm footprint. The latest addition to the product family includes silicone versions for increased durability and thermal resistance. Being especially designed for street lighting they provide highly efficient and uniform lighting.
Beam with extremely low glare.
