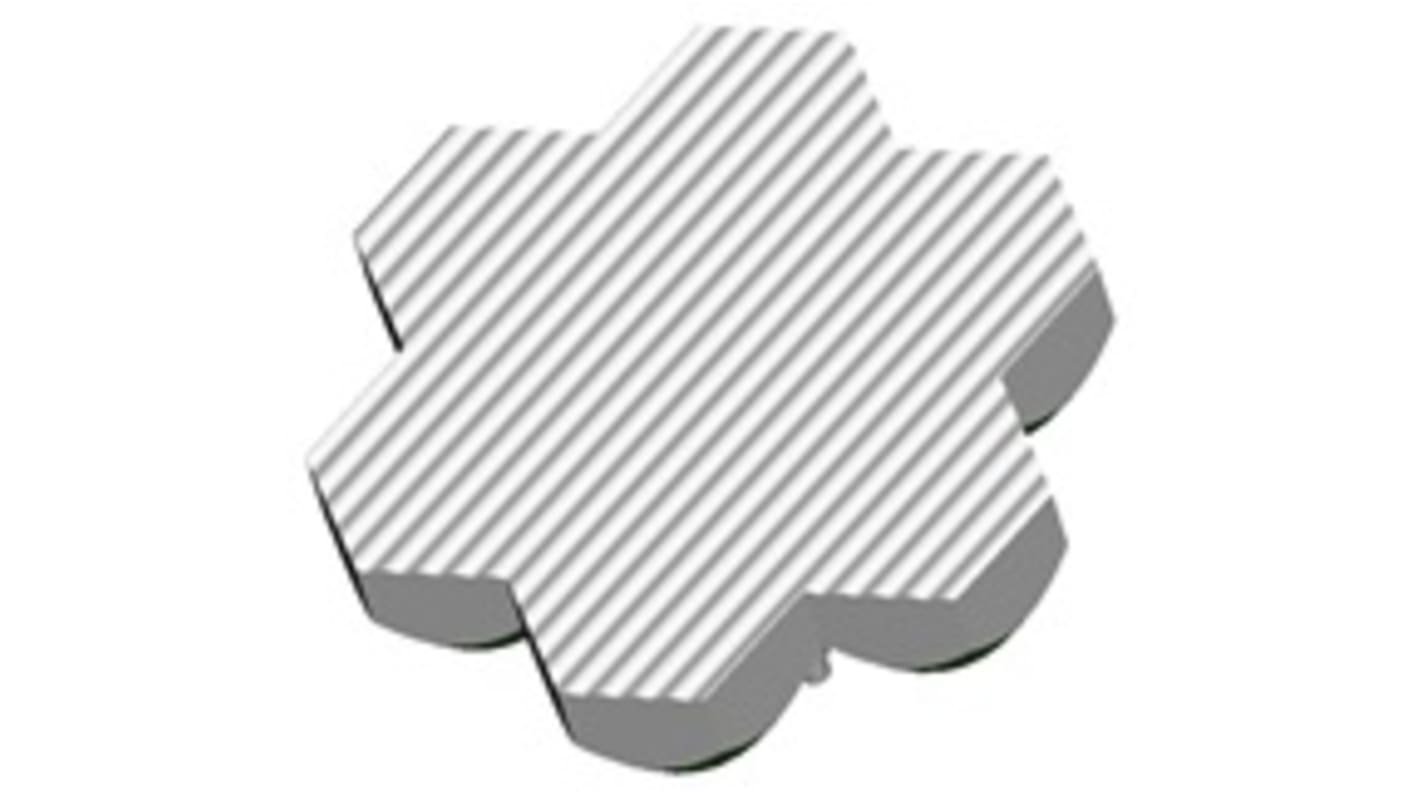

Polymer Optics 363 7-Way LED Lens, 12 °
- RS Stock No.:
- 181-0657
- Mfr. Part No.:
- 363
- Brand:
- Polymer Optics
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 181-0657
- Mfr. Part No.:
- 363
- Brand:
- Polymer Optics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Polymer Optics | |
Product Type | LED Lens | |
Number of LEDs Per Lens | 7 | |
Lens Material | Polycarbonate (PC) | |
Viewing Angle | 12 ° | |
Dimensions | 39.15 Dia. x 12.25mm | |
Diameter | 39.15mm | |
Height | 12.25mm | |
Select all | ||
---|---|---|
Brand Polymer Optics | ||
Product Type LED Lens | ||
Number of LEDs Per Lens 7 | ||
Lens Material Polycarbonate (PC) | ||
Viewing Angle 12 ° | ||
Dimensions 39.15 Dia. x 12.25mm | ||
Diameter 39.15mm | ||
Height 12.25mm | ||
- COO (Country of Origin):
- GB
Polymer Optics Modular LED Optics® design, based on a hexagonal format, allows maximum packing density and assembly flexibility Polymer Optics Cluster Optic® arrays can be assembled together in a number of ways to meet the needs of a range of illumination applications The 261, 262, 264 and 363 type Cluster Optics® can be mixed in the assembly to optimise the systems illumination distribution, and combined with other Polymer Optics custom cluster designs.
Designed for low profile high power, Lambertian LEDs
High light collection efficiency of >85%
Precision moulded in Polycarbonate for thermal
stability and system durability
Part of the Polymer Optics Modular LED Optics® range
High light collection efficiency of >85%
Precision moulded in Polycarbonate for thermal
stability and system durability
Part of the Polymer Optics Modular LED Optics® range
