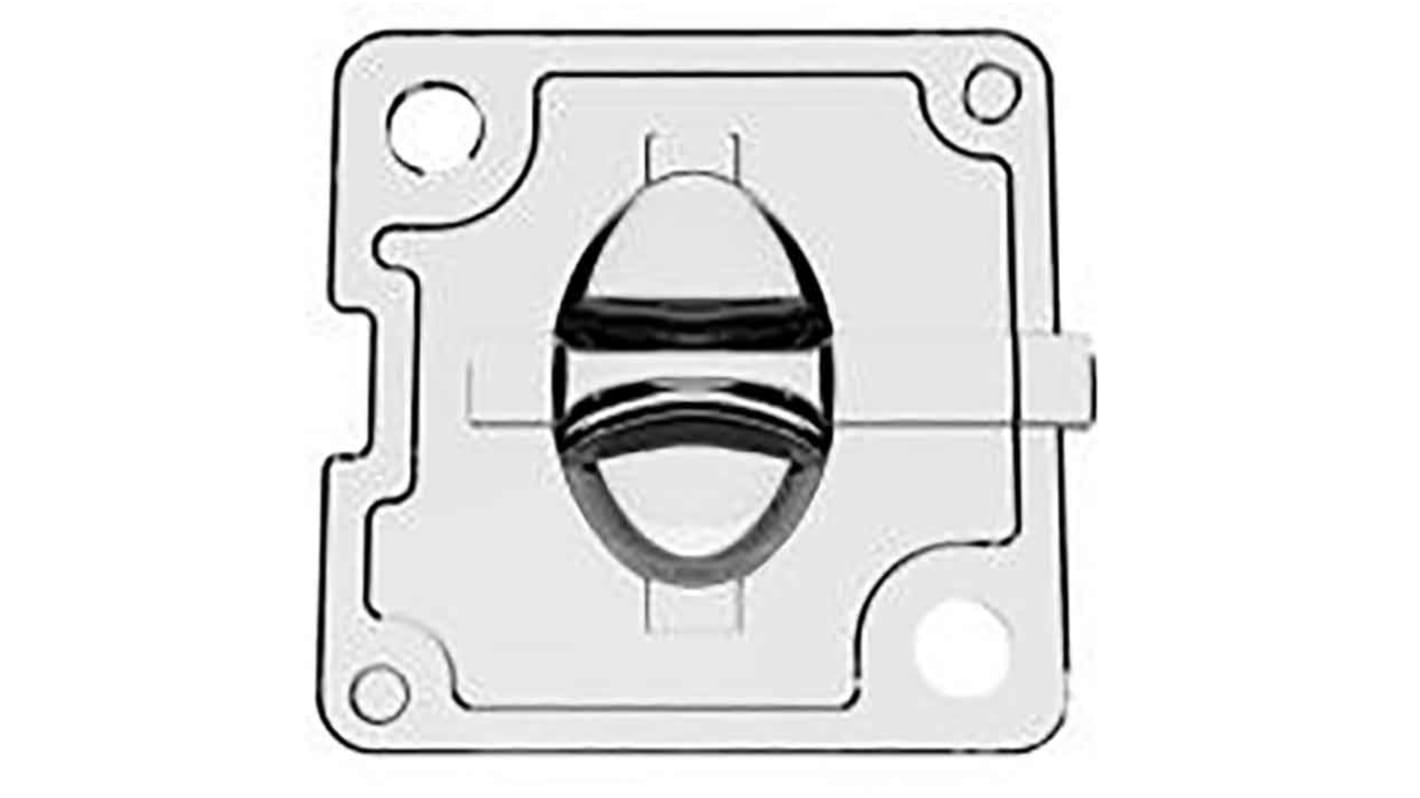

Carclo, Mini Hubble Series 1-Way LED Lens 140 x 60 x 0 Even Illumination Beam
- RS Stock No.:
- 180-5461
- Mfr. Part No.:
- 12763
- Brand:
- Carclo
Subtotal (5 units, in packs of 5)*
£7.10
(exc. VAT)
£8.50
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 30 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £1.42 | £7.10 |
*price indicative
- RS Stock No.:
- 180-5461
- Mfr. Part No.:
- 12763
- Brand:
- Carclo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Carclo | |
| Product Type | LED Lens | |
| Series | Mini Hubble | |
| Lens Shape | Elliptical | |
| Number of LEDs Per Lens | 1 | |
| Emission Pattern | Even Illumination | |
| Lens Material | Polymethyl Methacrylate | |
| Viewing Angle | 140 x 60 x 0 | |
| Fixing Method | Glue | |
| For Use With | High Bay Lighting, Corridor Lighting, Down Lighting and Interior Lighting, Medium US Streetlight | |
| Height | 5.65mm | |
| Length | 25mm | |
| Width | 25mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Carclo | ||
Product Type LED Lens | ||
Series Mini Hubble | ||
Lens Shape Elliptical | ||
Number of LEDs Per Lens 1 | ||
Emission Pattern Even Illumination | ||
Lens Material Polymethyl Methacrylate | ||
Viewing Angle 140 x 60 x 0 | ||
Fixing Method Glue | ||
For Use With High Bay Lighting, Corridor Lighting, Down Lighting and Interior Lighting, Medium US Streetlight | ||
Height 5.65mm | ||
Length 25mm | ||
Width 25mm | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- GB
Designed to give an even illumination when mounted in arrays where spacing to height ratio is 4 to 1.
25mm x 25mm footprint.
2 location pins for accurate positioning.
M3 screw holes.
0.2mm recess for glue.
Compatible with all small footprint LEDs.
Also available as 3, 4 or 6 arrays or custom layout.
Application Data
Type 1 medium US streetlight.
Corridor lighting.
High bay lighting.
Down lighting and interior lighting.
