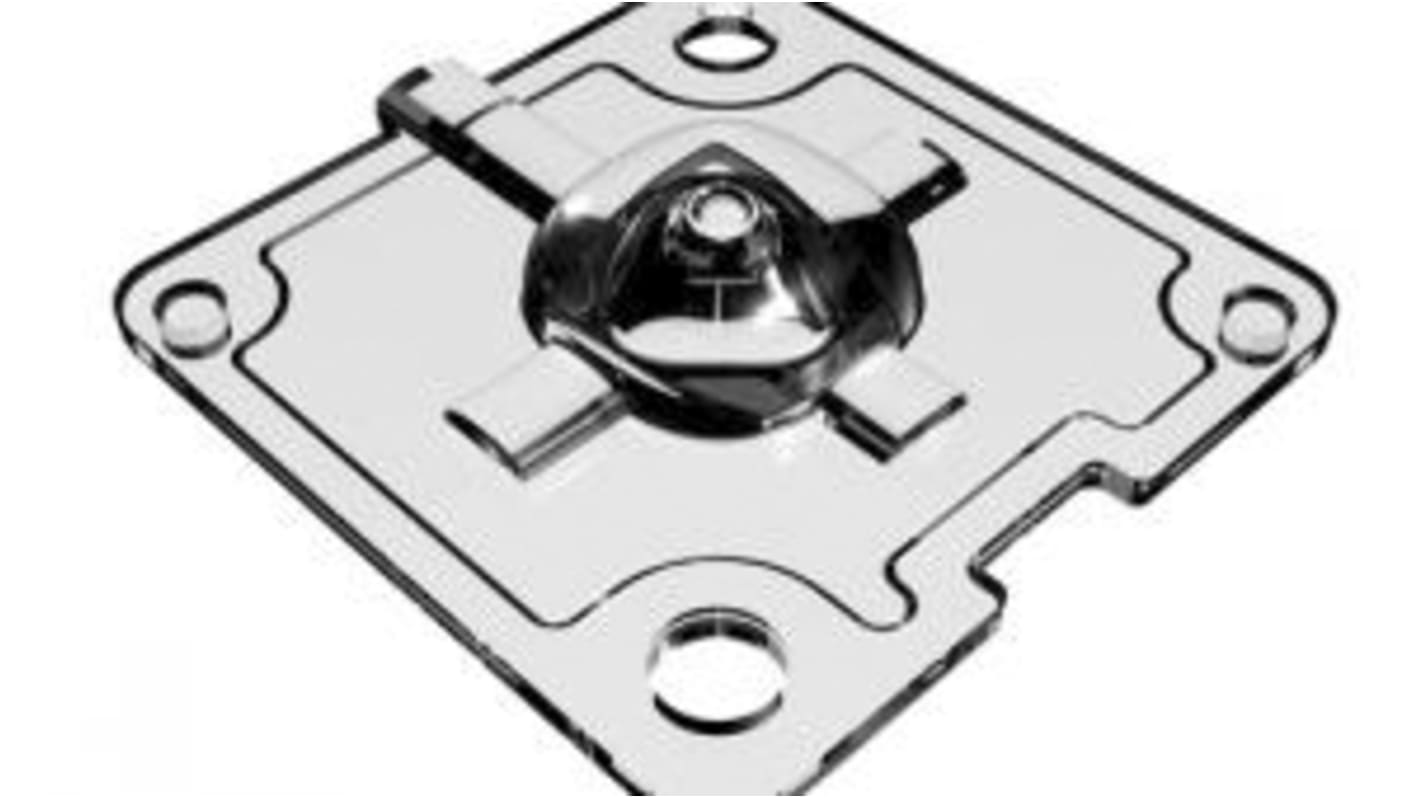

Carclo 12779, Mini Hubble Series LED Lens
- RS Stock No.:
- 180-5432
- Mfr. Part No.:
- 12779
- Brand:
- Carclo
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 180-5432
- Mfr. Part No.:
- 12779
- Brand:
- Carclo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Carclo | |
Series | Mini Hubble | |
Product Type | LED Lens | |
Lens Shape | Square | |
Number of LEDs Per Lens | 1 | |
Lens Material | Polymethyl Methacrylate (PMMA) | |
Affixing Method | Glue | |
For Use With | Corridor Lighting, Down Lighting and Interior Lighting, High Bay Lighting, US Streetlight | |
Dimensions | 25 x 25 x 5mm | |
Height | 5mm | |
Length | 25mm | |
Width | 25mm | |
Select all | ||
---|---|---|
Brand Carclo | ||
Series Mini Hubble | ||
Product Type LED Lens | ||
Lens Shape Square | ||
Number of LEDs Per Lens 1 | ||
Lens Material Polymethyl Methacrylate (PMMA) | ||
Affixing Method Glue | ||
For Use With Corridor Lighting, Down Lighting and Interior Lighting, High Bay Lighting, US Streetlight | ||
Dimensions 25 x 25 x 5mm | ||
Height 5mm | ||
Length 25mm | ||
Width 25mm | ||
- COO (Country of Origin):
- CZ
Designed to give an even illumination across the beam with soft edges and when mounted in arrays with spacing height ratio 4.5:1
25mm x 25mm footprint.
2 location pins for accurate positioning.
M3 screw holes.
0.2mm recess for glue.
Compatible with all small footprint LEDs.
Also available as 3, 4 or 6 arrays or custom layout.
Application Data
Type 5 US streetlight.
Corridor lighting (with even illumination when mounted in arrays).
High bay lighting (with even illumination when mounted in arrays).
Down lighting and interior lighting.
2 location pins for accurate positioning.
M3 screw holes.
0.2mm recess for glue.
Compatible with all small footprint LEDs.
Also available as 3, 4 or 6 arrays or custom layout.
Application Data
Type 5 US streetlight.
Corridor lighting (with even illumination when mounted in arrays).
High bay lighting (with even illumination when mounted in arrays).
Down lighting and interior lighting.
