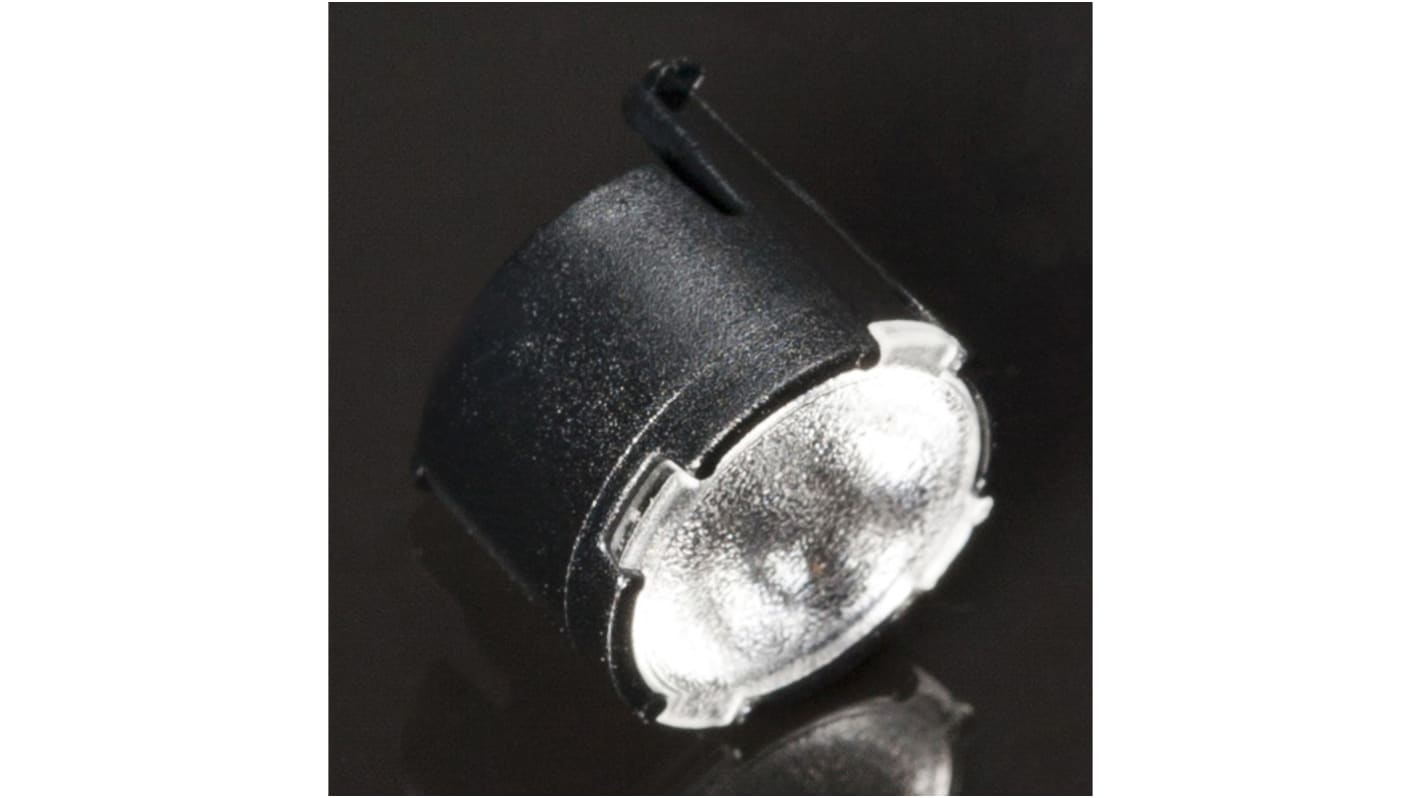

Ledil FP11952_LISA2-WWW-CLIP, Lisa2 Series 1-Way LED Lens 80 ° Round Beam
- RS Stock No.:
- 170-9739
- Mfr. Part No.:
- FP11952_LISA2-WWW-CLIP
- Brand:
- Ledil
Subtotal (1 box of 100 units)*
£149.00
(exc. VAT)
£179.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 24 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 100 + | £1.49 | £149.00 |
*price indicative
- RS Stock No.:
- 170-9739
- Mfr. Part No.:
- FP11952_LISA2-WWW-CLIP
- Brand:
- Ledil
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ledil | |
| Product Type | LED Lens | |
| Series | Lisa2 | |
| Lens Shape | Round | |
| Number of LEDs Per Lens | 1 | |
| Emission Pattern | Round | |
| Lens Colour | Black | |
| Viewing Angle | 80 ° | |
| For Use With | Lumileds LUXEON Rebel | |
| Diameter | 9.9mm | |
| Height | 6.6mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Ledil | ||
Product Type LED Lens | ||
Series Lisa2 | ||
Lens Shape Round | ||
Number of LEDs Per Lens 1 | ||
Emission Pattern Round | ||
Lens Colour Black | ||
Viewing Angle 80 ° | ||
For Use With Lumileds LUXEON Rebel | ||
Diameter 9.9mm | ||
Height 6.6mm | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- FI
LEDiL LISA2 Series LED Lenses
The LISA2 series from LEDil, are a family of round LED lens assemblies with a PC holder. This range is designed for use with a single LED and come in a wide variety of options with a clear lens. They offer a range of beam angles from a spot to extra wide, and even an oval beam option. LISA2 lenses direct the light from an LED light source through the lens to achieve the desired beam emission type with a uniform output.
Made using an optical grade PMMA, the LISA2 lenses offer a high UV and temperature resistance. LISA2 lenses have been designed and optimised for use with a variety of LEDs. Due to the rapidly changing nature of LED products customers are strongly advised to consult the latest manufacturer data for compatible LEDs.
LEDiL Single LED Lenses
Note
The viewing angle produced (the full angle measured at the half Peak luminous intensity value) will vary depending on the chip size, colour and position of the LED.
